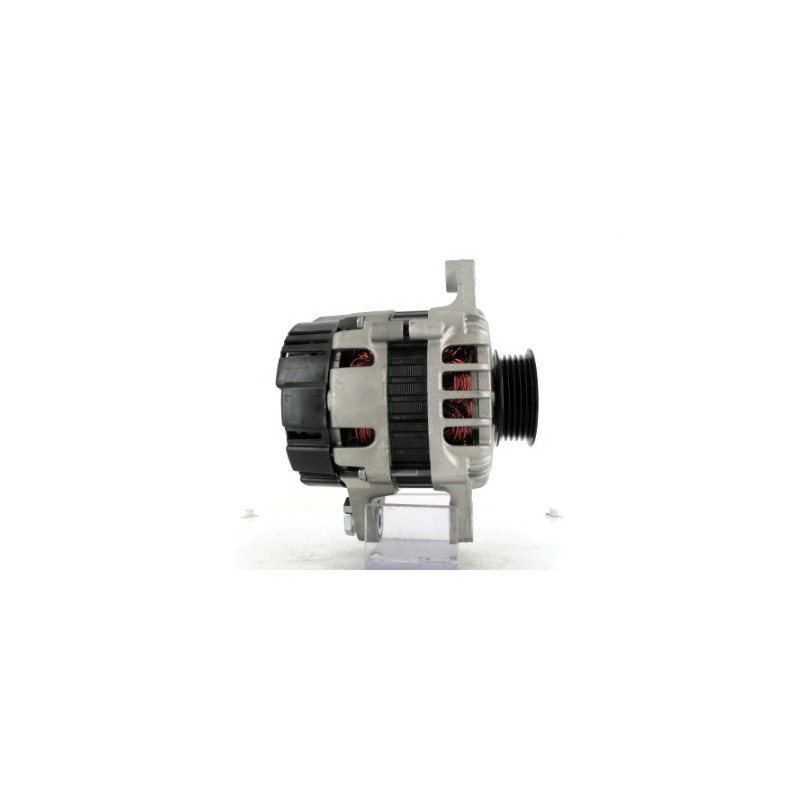

Alternator VALEO SG7S099 / 2606900 / 2611776A
Alternator NEW VALEO SG7S099 / 2606900 / 2611776A KIA 37300-03300 / 37300-03310
DRA0976 / LRA03539
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 70 | |
Brand VALEO
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.20 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 15.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 46.50 |
| H | Pulley dia. | 57.50 |
| A | Pulley dist. | 35.00 |
| i | Grooves/pulley | 5 |
| j | Radius | 82.00 |
| j | Radius 2 | 86.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

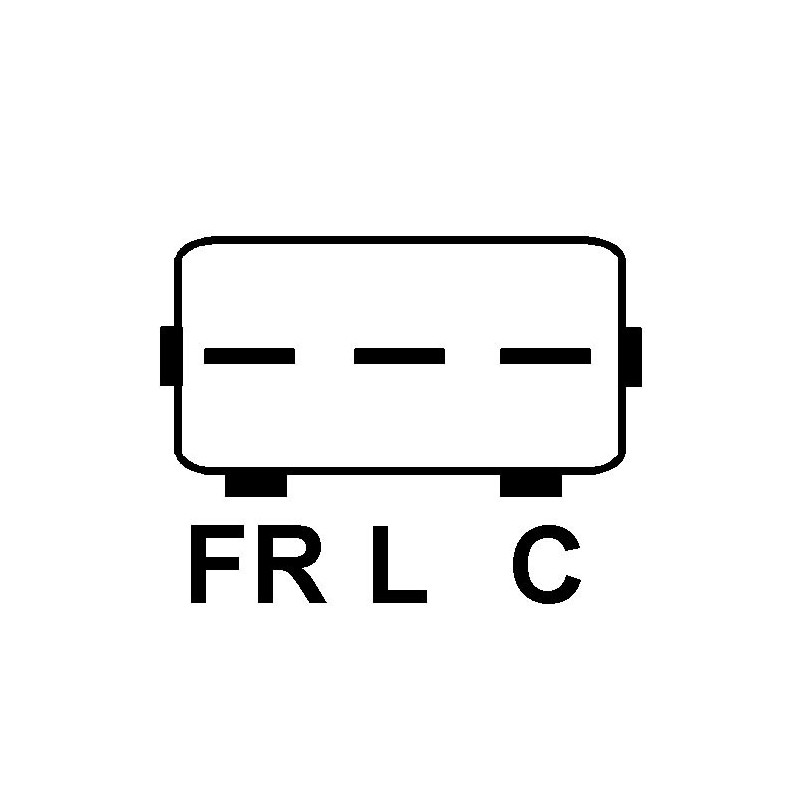

| o | Plug no. 1 | PL176 |
| R | Total length mm | 156.00 |
Replacing | |
|---|---|
| 2606900 | VALEO |
| 2611776A | VALEO |
| 37300-03300 | KIA |
| 37300-03310 | KIA |
| ca2127ir | HC-PARTS |
| SG7S099 | VALEO |
fitsHYUNDAI :
| Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Engine in cm3 | Cylindres |
|---|---|---|---|---|---|---|---|---|---|---|---|
| i10 | 1.2 | Unleaded | 2008 11 | - | G4LA | 57 | 78 | Hayon | 1248 | 4 | |
| i20 | 1.2 | Unleaded | 2008 09 | - | G4LA | 57 | 78 | Hayon | 1248 | 4 |
