Alternator
Alternator replacing LR185-701 / LR185-702 / 23700-AA210 / 23700-AA211 / 23700-AA34A
€148.90
Alternator replacing VALEO A11VI102 / A11VI108 / A13VI245 / A13VI256
W225530080
Alternator replacing VALEO A11VI102 / A11VI108 / A13VI245 / A13VI256 / A13VI278 / A13VI288 / 437185 / 437190 / 437342 / 437344 / 439268 / 439331
= 0986049630 / DRA3816 / LRA02114 / LRA02169 / 57054P / 57055P / 57055Q / 57055Y
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 80 | |
Physical Information | ||
|---|---|---|

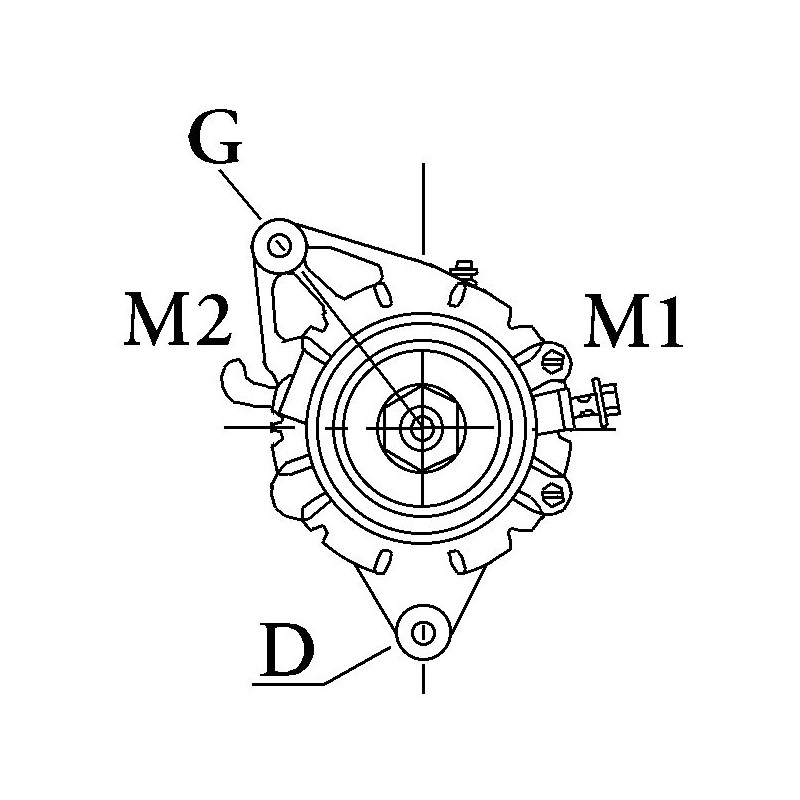

| D | Bracket hole | 10.20 |
| G | Belt. adj. bracket hole | 8.50 |

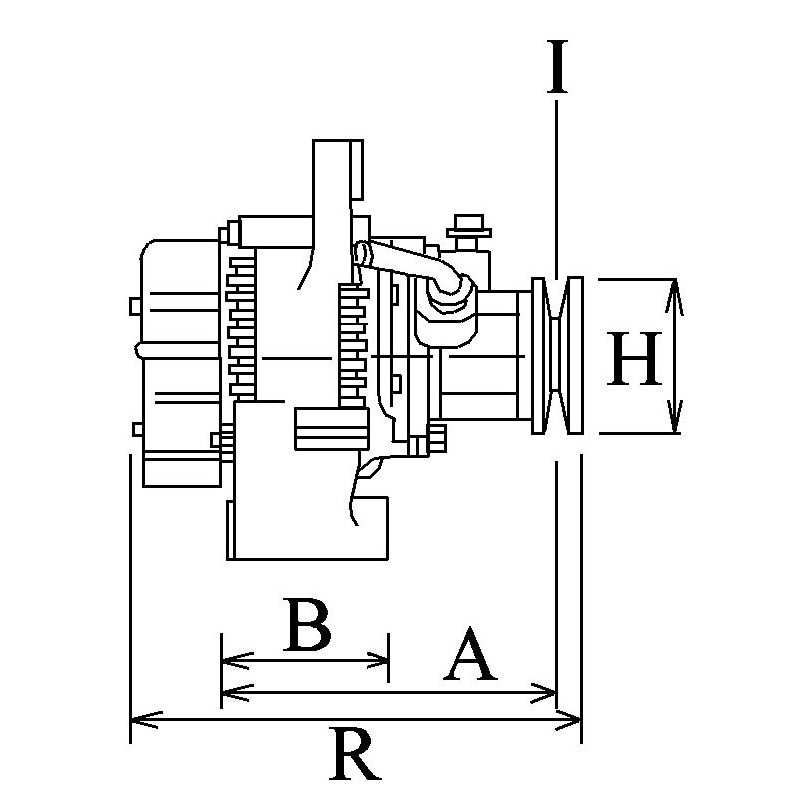

| B | Width/holder arm | 56.30 |
| E | Belt. adj. brackethole pos. | 50 |
| H | Pulley dia. | 56.30 |
| A | Pulley dist. | 75.00 |
| i | Grooves/pulley | 5 |

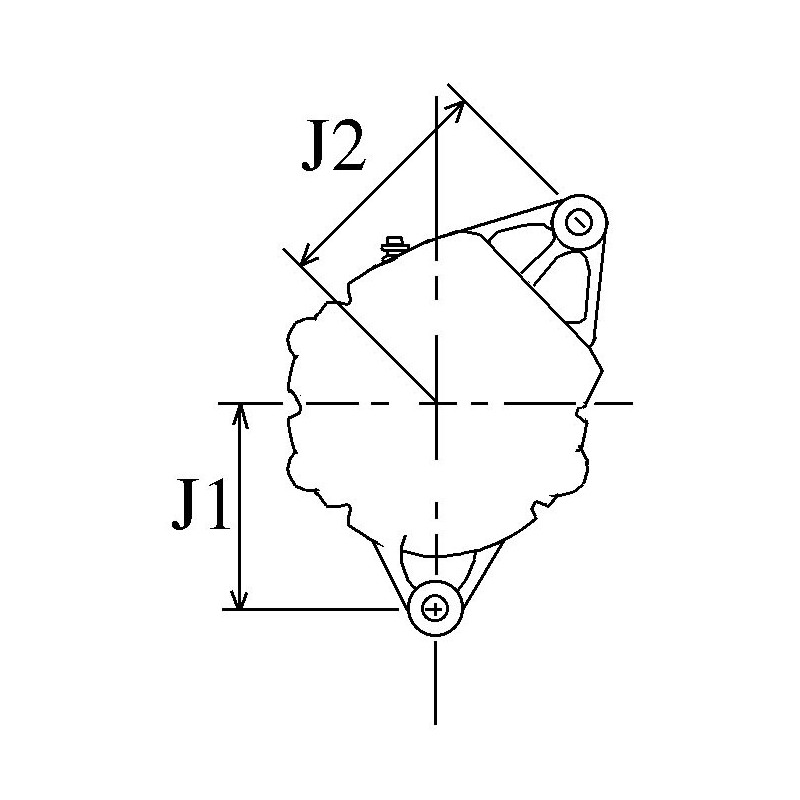

| j | Radius | 87.60 |
| j | Radius 2 | 89.20 |
| k | Position B + | M8 |
| n | Rotation | Cr |

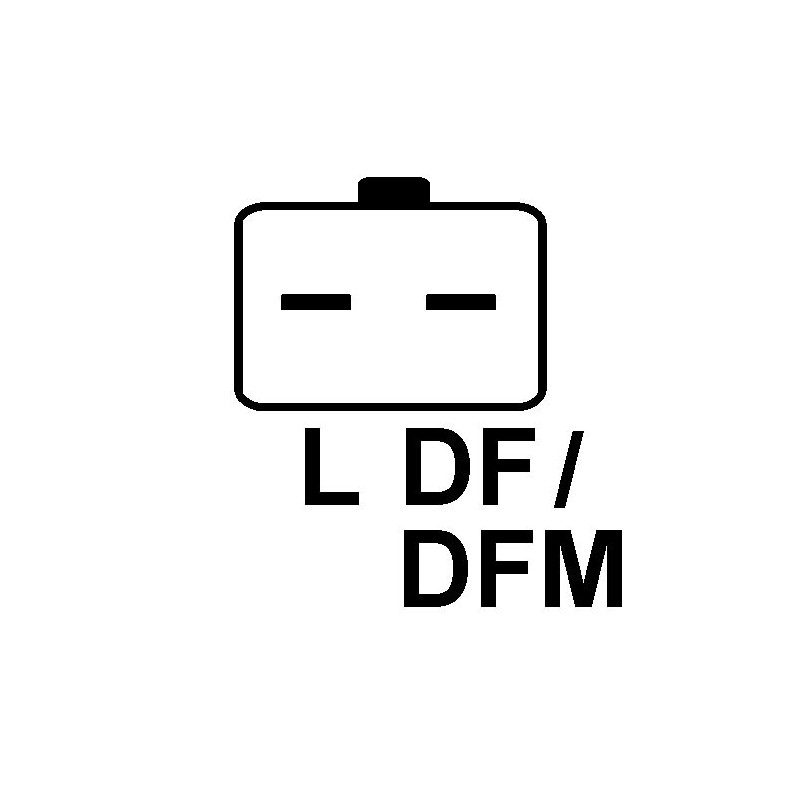

| o | Plug no. 1 | PL72 |
Generic Brand
= Reference :
| 063341740010 |
| 0986049630 |
| 225530080 |
| 225530080000 |
| 225530080005 |
| 225530080260 |
| 225530080260001 |
| 225530080261 |
| 225530080500 |
| 225530080500001 |
| 225530080500002 |
| 225530080500003 |
| 225530080505 |
| 225530080550 |
| 225530080750 |
| 23113 |
| 2542525A |
| 283922 |
| 284544 |
| 284555 |
| 437185 |
| 437190 |
| 437342 |
| 437344 |
| 439268 |
| 439331 |
| 542344 |
| 542525 |
| 57054P |
| 57055P |
| 57055Q |
| 57055Y |
| 57056M |
| 57057G |
| 5705EL |
| 5705GK |
| 6076SP |
| 63321740 |
| 63321740CO |
| 737932001 |
| 8EL012427101 |
| 8EL737932001 |
| 9090323F |
| 933816 |
| 9635557780 |
| 9637075380 |
| 9638276280 |
| 9641727480 |
| A11VI102 |
| A11VI108 |
| A13VI245 |
| A13VI256 |
| A13VI256CO |
| A13VI278 |
| A13VI278CO |
| A13VI288 |
| A13VI288+ |
| A13VI288CO |
| A13VI288R |
| CA1641IR |
| DAN1063 |
| DRA3816 |
| HCA1641IR |
| LRA02114 |
| LRA02169 |
| LRA02767 |
| LRB00448 |
| LRB00449 |
| MAN1163 |
| OAN11238 |
Mounted on :
| CITROEN | Saxo | 1.1 X,SX | 05/96 |
| CITROEN | Saxo | 1.4 | 05/96 |
| CITROEN | Saxo | 1.6 VTL | 05/96 |
| PEUGEOT | 106 | 1.4i | 05/96 |
| PEUGEOT | 106 | 1.1i | 01/97 |
NO CORE EXCHANGE NEEDED
GARANTIE N1 AN
