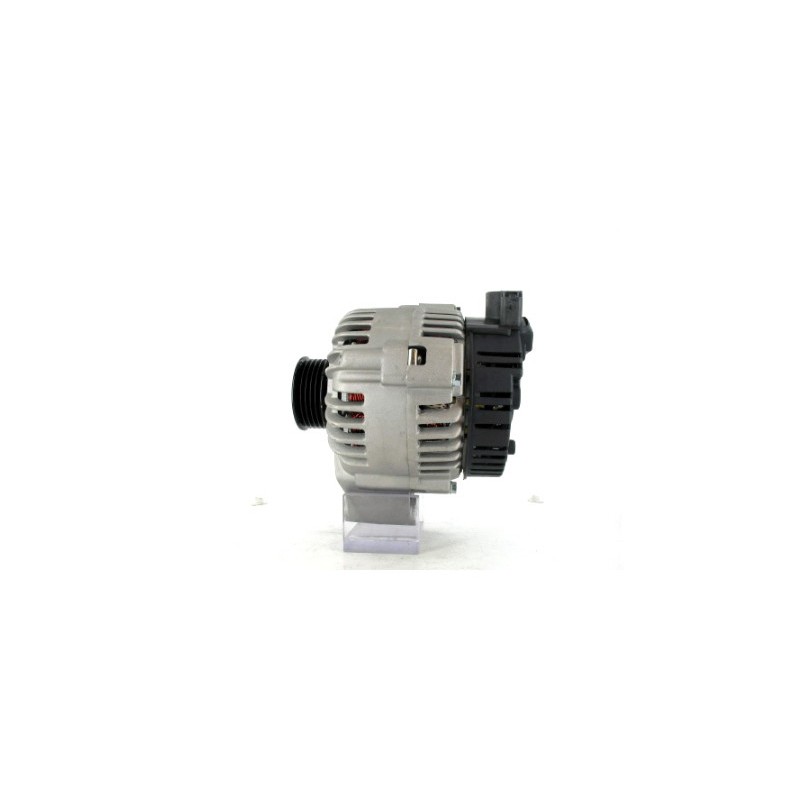

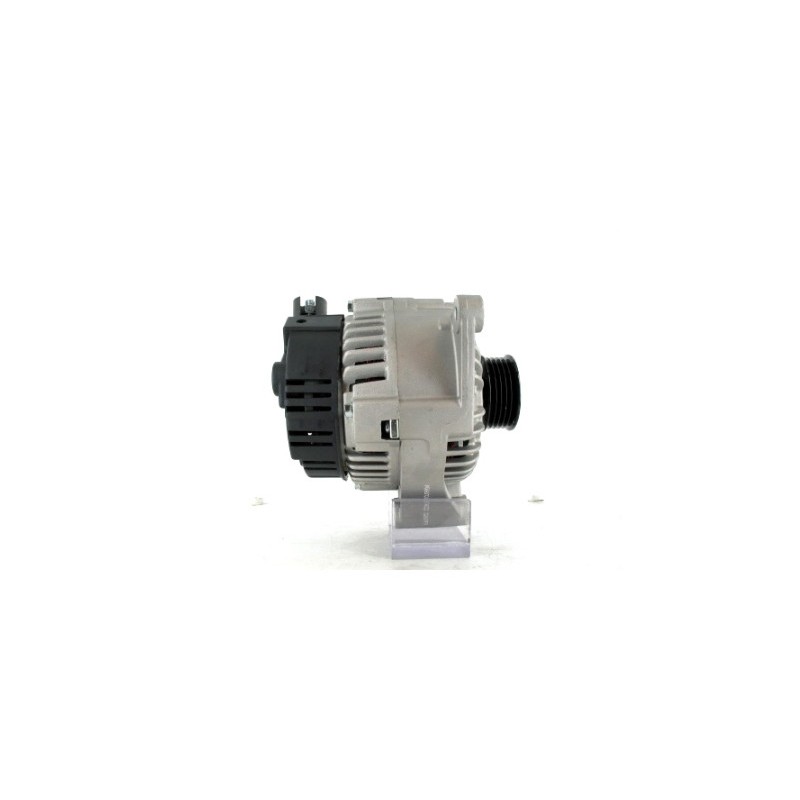

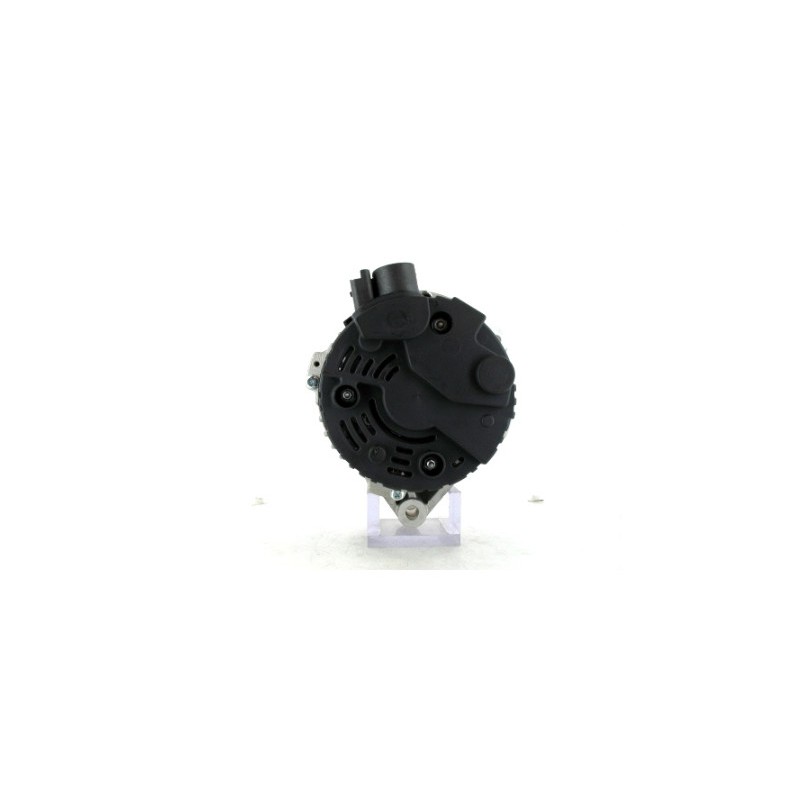

Alternator replacing VALEO A13VI246 / A13VI279 / 439269 / 439330
Alternator replacing A13VI246 / A13Vi279 / 0986080780 / 437186 / 437190 / 57055Z / 5705GH / DRA3953 / LRA02812
Version origine VALEO disponible W113404
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 97 | |
Physical Information | ||
|---|---|---|

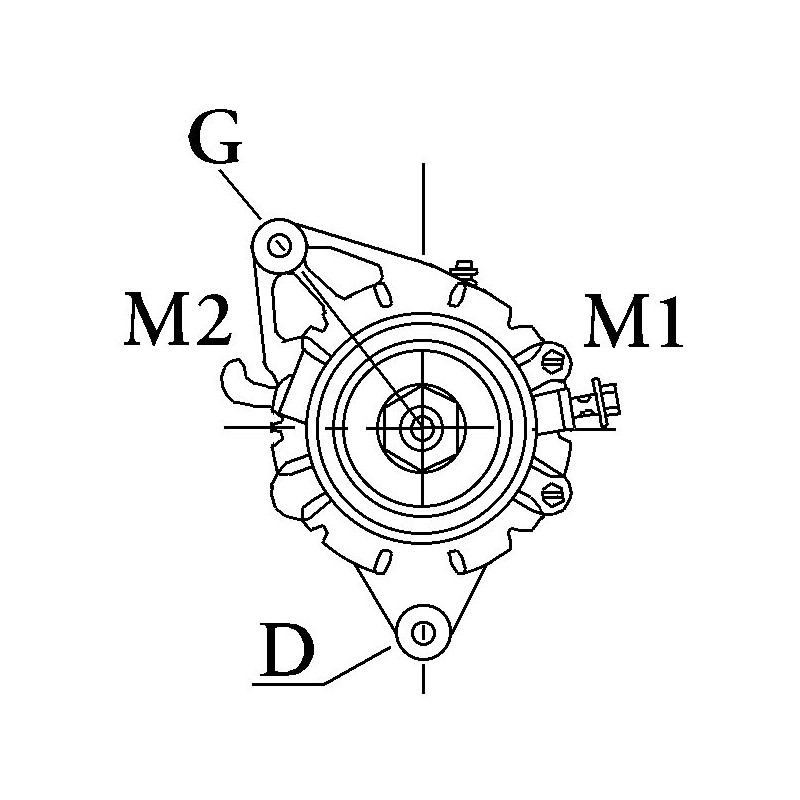

| D | Bracket hole | 10.20 |
| G | Belt. adj. bracket hole | 8.50 |

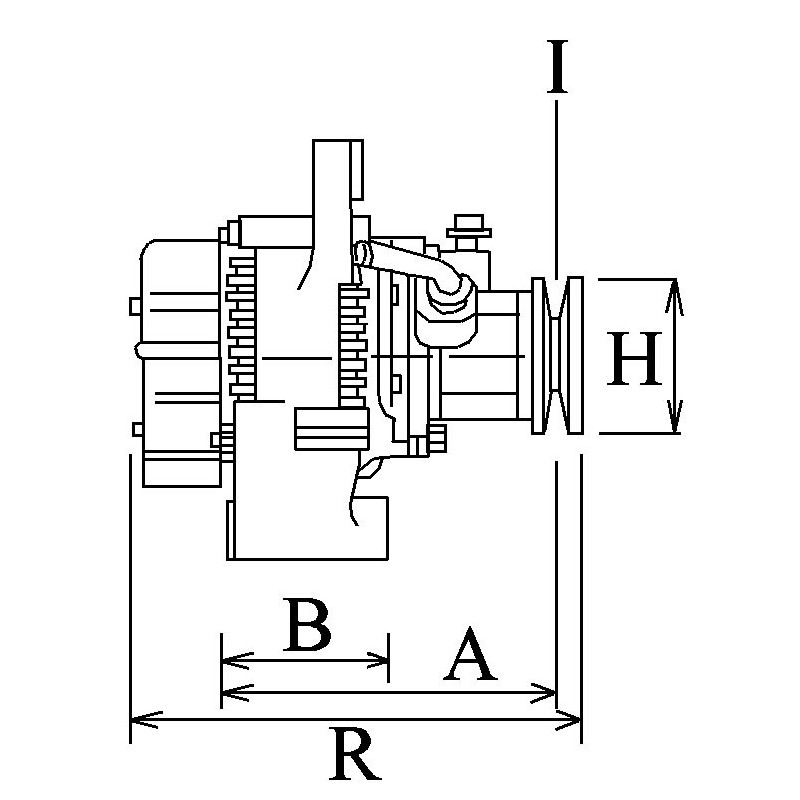

| B | Width/holder arm | 56.30 |
| E | Belt. adj. brackethole pos. | 50 |
| H | Pulley dia. | 56.30 |
| A | Pulley dist. | 75.00 |
| i | Grooves/pulley | 5 |

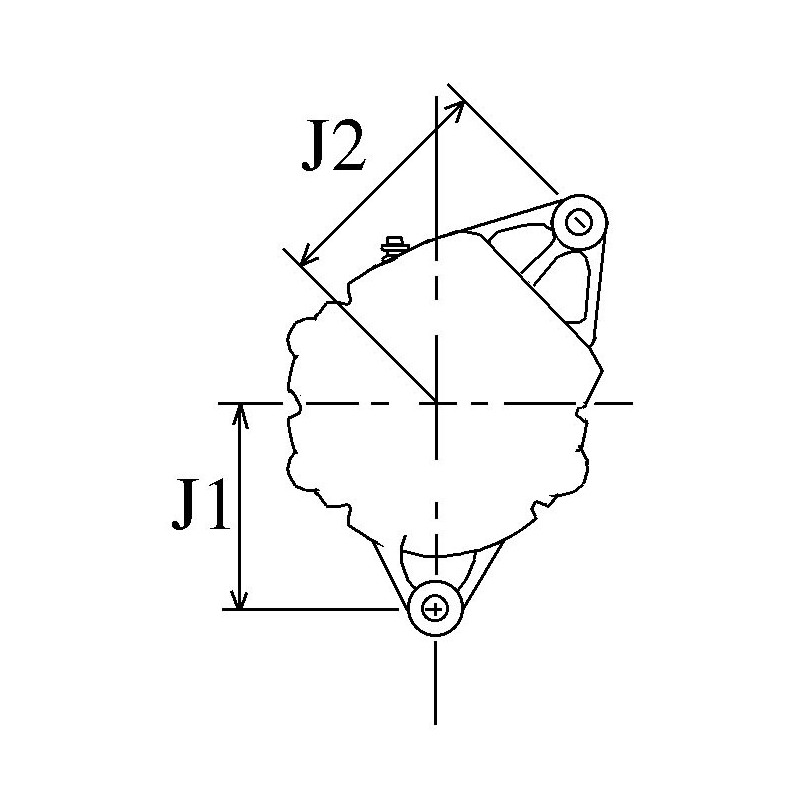

| j | Radius | 87.60 |
| j | Radius 2 | 89.20 |
| k | Position B + | M8 |
| n | Rotation | Cr |

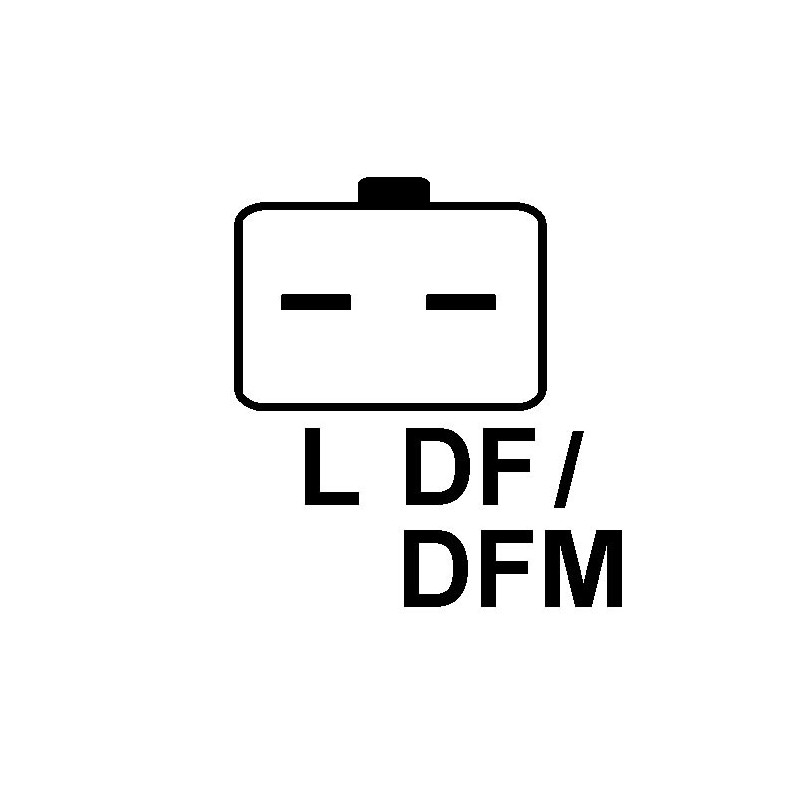

| o | Plug no. 1 | PL72 |
| 0986080780 |
| 225530097 |
| 225530097000 |
| 225530097005 |
| 225530097500 |
| 225530097500001 |
| 225530097500101 |
| 225530097505 |
| 225530097550 |
| 2542400 |
| 284930 |
| 437186 |
| 437190 |
| 437343 |
| 439269 |
| 439330 |
| 542400 |
| 57055Z |
| 5705GH |
| 6077SP |
| 639745 |
| 8EL012427111 |
| 8EL737933001 |
| 9090248F |
| 9634561480 |
| A13VI246 |
| A13VI246+ |
| A13VI279 |
| A13VI279CO |
| A13VI279R |
| A13VI279SP |
| CA1642IR |
| DRA3953 |
| HCA1642IR |
| LRA02812 |
Generic Brand
Mounted on :
| CITROEN | Saxo | 1.1 X,SX | 05/96 |
| CITROEN | Saxo | 1.4 | 05/96 |
| CITROEN | Saxo | 1.6 VTL | 05/96 |
| PEUGEOT | 106 | 1.4i | 05/96 |
| PEUGEOT | 106 | 1.1i | 01/97 |
NO CORE EXCHANGE NEEDED
GARANTIE N1 AN
