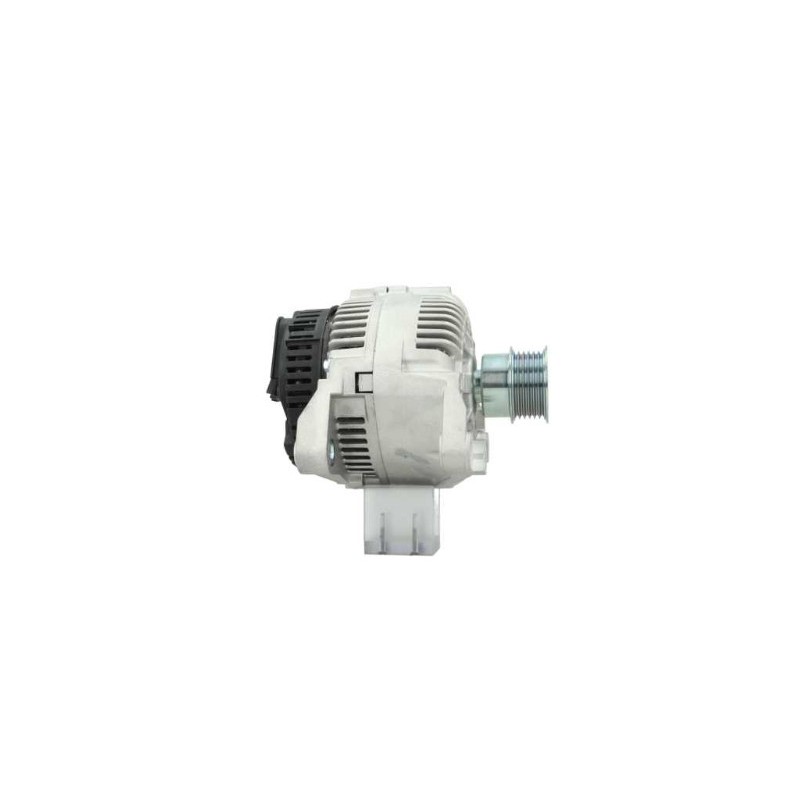

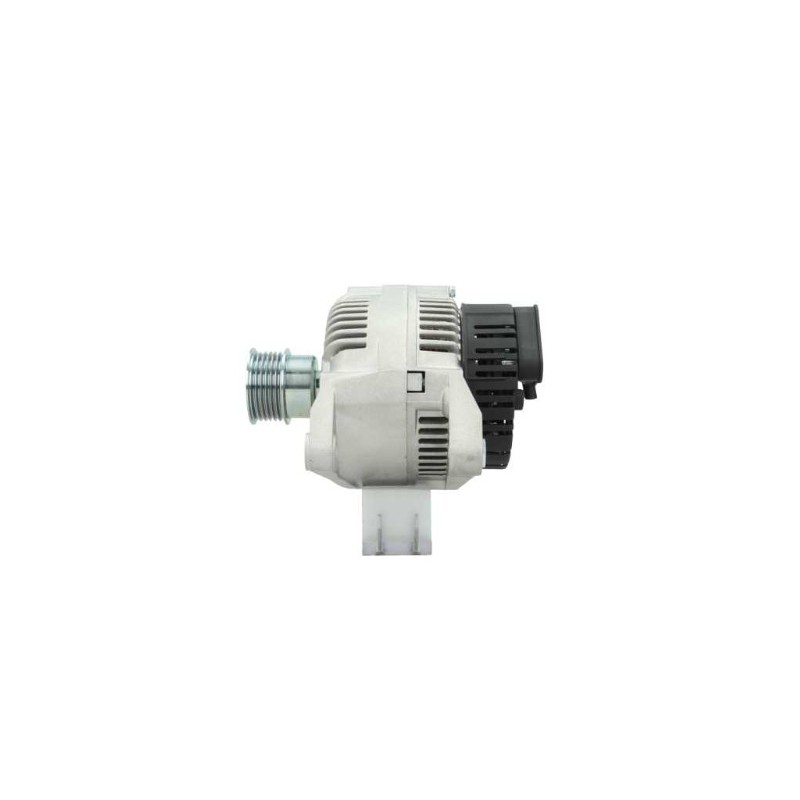

Alternator NEW replacing VALEO 2541697 / 2541697B / a13vi78
= BMW 12311247288 / 12311247310 / 1247288
= BOSCH 0123320012 / 0986040380
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 80 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | 10.50 |
| B | Width/holder arm | 19.65 |
| E | Belt. adj. brackethole pos. | 10 |
| C | Mount. bracket dist | 73.50 |
| H | Pulley dia. | 52.00 |
| A | Pulley dist. | 46.80 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL_NA |
| R | Total length mm | 207.50 |
Replacing | |
|---|---|
| 12311247288 | BMW |
| 12311247310 | BMW |
| 1247288 | BMW |
| 2541697 | VALEO |
| 2541697B | VALEO |
| a13vi78 | VALEO |
| ca1398ir | HC-PARTS |
| 0123320012 |
| 0986040380 |
| 1202701BO |
| 12311247288 |
| 12311247310 |
| 12311247487 |
| 12311247488 |
| 12411247487 |
| 1247288 |
| 13664 |
| 13733 |
| 215509090 |
| 2205014 |
| 241139 |
| 2541697 |
| 2541697B |
| 282815 |
| 282986 |
| 436675 |
| 439007 |
| 541697 |
| 5717SP |
| 5925SP |
| 90156316 |
| 90156316N |
| 90203537 |
| 9040380F |
| 9123320012 |
| A13VI78 |
| CA1261IR |
| CA1398IR |
| DRB0380 |
| HCA1261IR |
| HCA1398IR |
| LRA01721 |
| LRB00427 |
| OAN11927 |
Mounted on :
BMW : 3 - 318 - 316 / 5 518 -
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Chassi type | Engine in cm3 | Cylindres |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 318 | 1.9 | Unleaded | 1996 01 | 1997 01 | M44 | 0 | 1895 | L4 | ||
| 3 | 318 | 1.9 | Unleaded | 1996 01 | 1997 01 | M44 | iS | 0 | 1895 | L4 | |
| 3 | 318 | 1.8 | Unleaded | 1995 01 | - | M42 | Ti | 0 | 1796 | L4 | |
| 3 | 318 | 1.9 | Unleaded | 1996 01 | 1997 01 | M44 | Ti | 0 | 1895 | L4 | |
| 3 | 318 | 1.9 | Unleaded | 1996 01 | 1997 01 | M44 | i | 0 | 1895 | L4 | |
| 318 | 318 | 1.9 | Unleaded | 1998 01 | 1998 01 | M44 | i | 0 | 1895 | L4 | |
| 318 | 318 | 1.9 | Unleaded | 1998 01 | 1999 01 | M44 | Ti | 0 | 1895 | L4 | |
| Z | Z3 | 1.9 | Unleaded | 1996 01 | 1997 01 | M44 | 0 | Décapotable | 1895 | L4 | |
| Z | Z3 | 1.9 | Unleaded | 1998 01 | 1998 01 | M44 | 0 | Décapotable | 1895 |
Generic Brand
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
