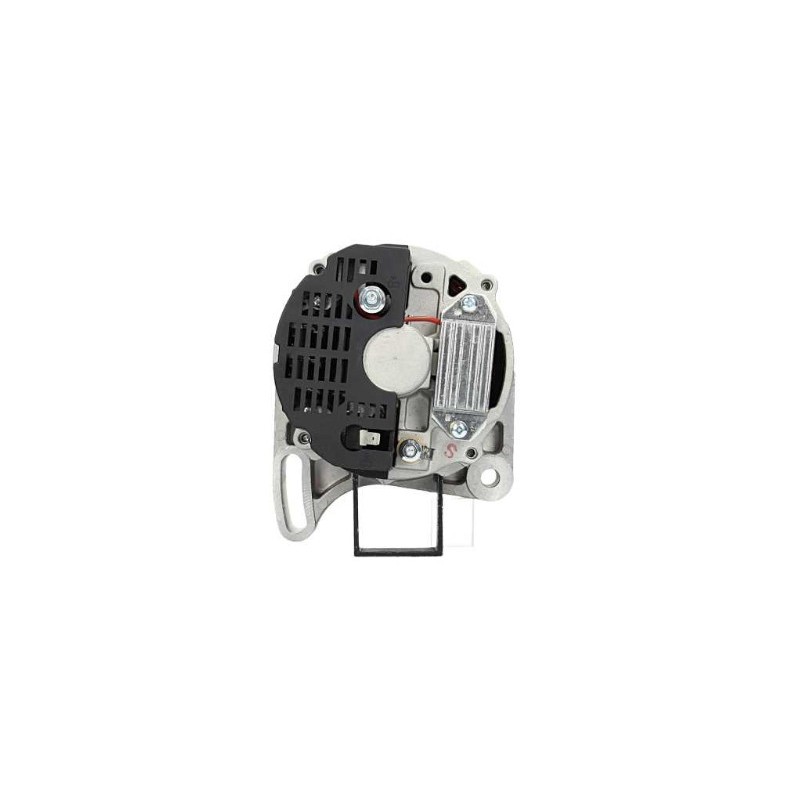

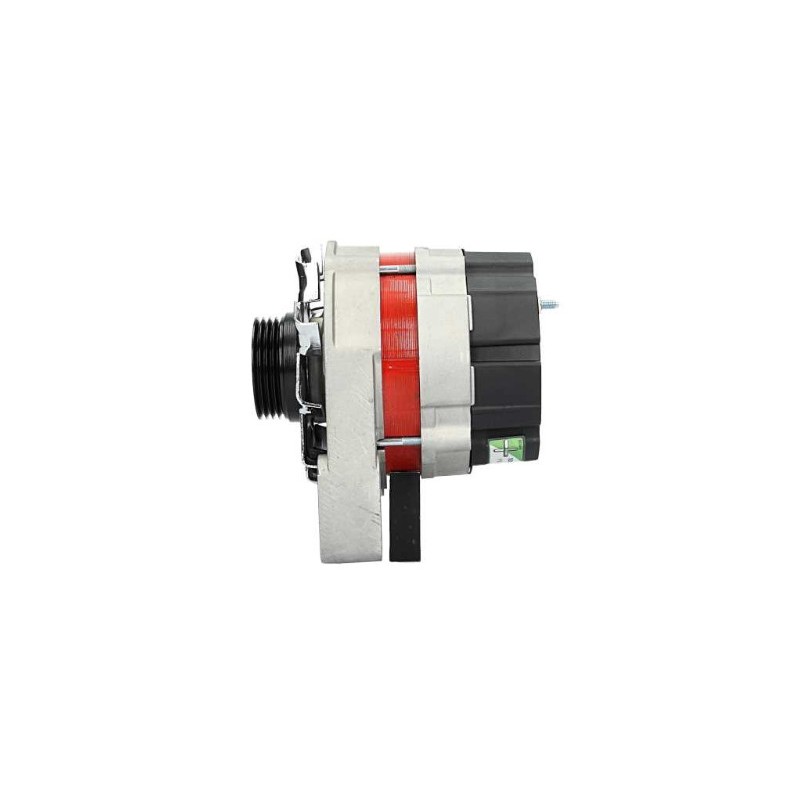

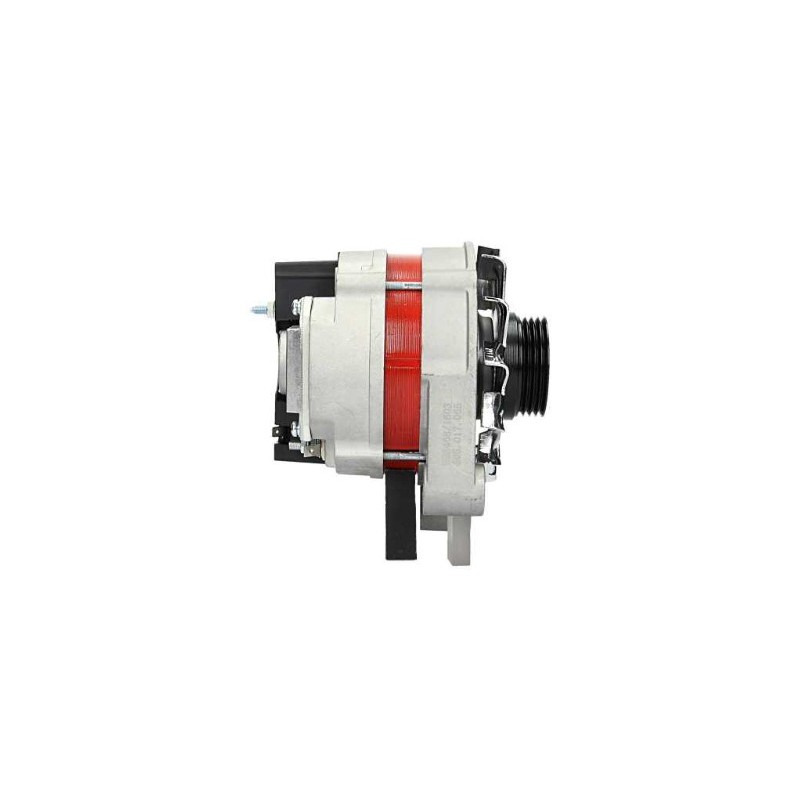

Alternator replacing ISKRA 11201711 / AAK4569 / MAGNETI MARELLI 63320111 / 63321190
| 063320111010 | MAGNETI MARELLI |
| 063321136010 | MAGNETI MARELLI |
| 063321190010 | MAGNETI MARELLI |
| 11.201.711 | ISKRA / LETRIKA |
| 113533 | CARGO |
| 11572700 | LOMBARDINI |
| 12850977 | DEUTZ |
| 28-2716 | ELSTOCK |
| 2901239 | VOLVO |
| 554817RIM | KUHNER |
| 63320111 | MAGNETI MARELLI |
| 63321136 | MAGNETI MARELLI |
| 63321190 | MAGNETI MARELLI |
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 65 | |
| Plug type | W | |

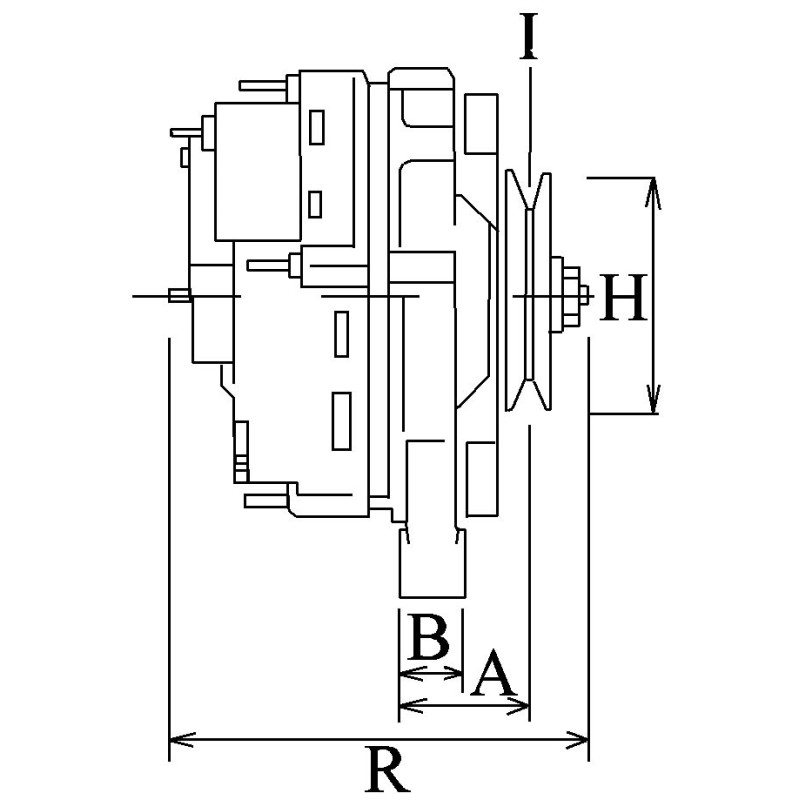

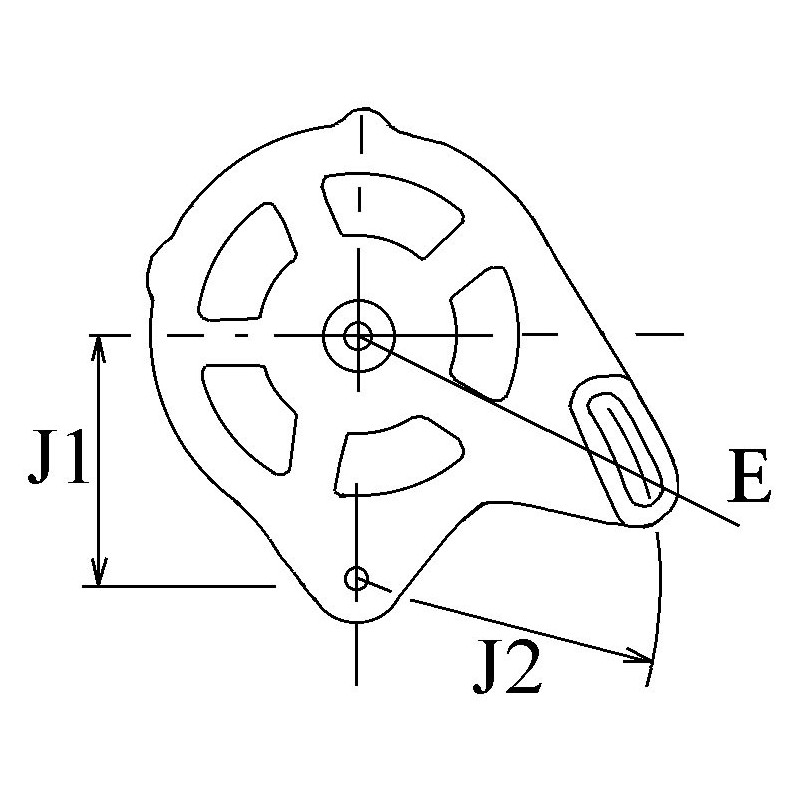

Physical Information | ||
|---|---|---|

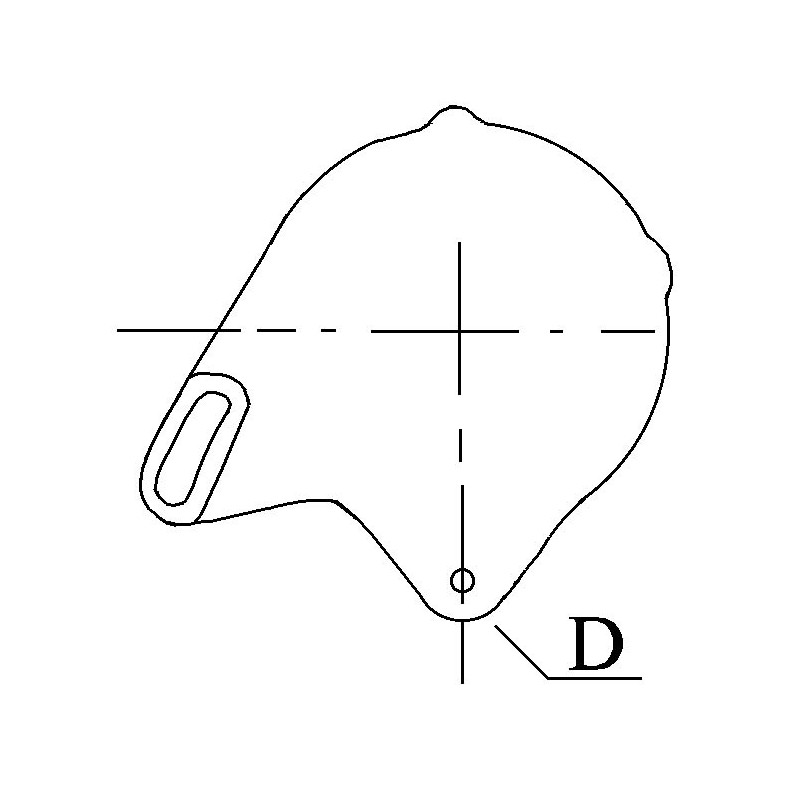

| D | Bracket hole | 10.30 |
| G | Belt. adj. bracket hole | 10.90 |
| B | Width/holder arm | 31.80 |
| E | Belt. adj. brackethole pos. | 17 |
| H | Pulley dia. | 69.50 |
| A | Pulley dist. | 52.00 |
| i | Grooves/pulley | 1 |
| j | Radius | 85.00 |
| k | Position B + | M6 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL_NA |
| Q | Tipo prise W | M5-6.3 |
| R | Total length mm | 160.00 |
Replacing :
Generic brand
| A-6379 | DIXIE |
| AAK4569 | ISKRA / LETRIKA |
| AEK1579 | AUTOELECTRO |
| ALT12106 | WOODAUTO |
| CAL21165AS | CASCO |
| CAL21165GS | CASCO |
| IA0711 | ISKRA / LETRIKA |
| LRA01579 | LUCAS |
| LRA1579 | LUCAS |
| MAHMG21 | WOODAUTO |
| MG21 | MAHLE |
| UD13057A | AS-PL |
| 22579N | WAI / TRANSPO |
| A9227 | AS-PL |
| 442383 | LOGISTIK |
| ALT20709 | WOODAUTO |
| 554817RI | KUHNER |
| 755.005.065.311 | PSH |
| 755.005.065.090 | PSH |
| 72735020 | MAHLE |
| ED0011572700 | LOMBARDINI |
| 20119561BN | REAL |
| 20119561OE | REAL |
| 2021165.0 | SANDO |
| 2021165.1 | SANDO |
| ALT231650 | SIOM |
| AI-90299 | AINDE |
| CGB-82716 | AINDE |
| DRA4076 | DELCO |
Used onnotamment on :
| Brand | Model | Typ | Year |
| BCS | 300 1.0 | [LDW1003] | |
| BCS | 400 1.4 | [LDW1404] | |
| BELARUS | 320.4 1.6 | [LDW1603] | 01/01/13 |
| BELARUS | 320.5 1.6 | [LDW1603] | 01/01/13 |
| BELARUS | 422 2.1 | [LDW2204] | 01/01/13 |
| BELARUS | 622 2.1 | [LDW2204T] | 01/01/13 |
| EUROMACCHINE | GT 10 SE 0.7 | [LDW702] | |
| EUROMACCHINE | GT 14 SE 1.0 | [LDW1003] | |
| EUROMACCHINE | GT 16 SE 1.0 | [LDW1003] | |
| EUROMACCHINE | GT 6 SE 0.7 | [LDW702] | |
| IVECO | 4141 M48 2.1 | ||
| IVECO | 4241 M41 2.0 | ||
| IVECO | 4341 M60 2.2 | ||
| IVECO | 4021 M20 0.7 | ||
| IVECO | 4031 M30 1.0 | ||
| IVECO | 4041 M40 1.4 | ||
| LOMBARDINI | Engine 0.7 | [LDW702M] | |
| LOMBARDINI | Engine 0.9 | [LDW903] | |
| LOMBARDINI | Engine 1.3 | [LDW1003M] | |
| LOMBARDINI | Engine 1.3 | [LDW1003SD] | |
| LOMBARDINI | Engine 1.3 | [LDW1303M] | 01/01/93 |
| LOMBARDINI | Engine 1.4 | [LDW1204] | |
| LOMBARDINI | Engine 1.4 | [LDW1404M] | |
| LOMBARDINI | Engine 1.4 | [LDW1404SD] | |
| LOMBARDINI | Engine 1.4 | [LDW1404] | |
| LOMBARDINI | Engine 1.6 | [LDW1503] | 01/01/89 |
| LOMBARDINI | Engine 1.6 | [LDW1603M] | |
| LOMBARDINI | Engine 1.6 | [LDW1603SD] | |
| LOMBARDINI | Engine 1.6 | [LDW1603] | |
| LOMBARDINI | Engine 2.0 | [LDW1904M] | |
| LOMBARDINI | Engine 2.1 | [LDW2004MT] | 01/01/90 |
| LOMBARDINI | Engine 2.1 | [LDW2004M] | 01/01/90 |
| LOMBARDINI | Engine 2.1 | [LDW2004] | 01/01/90 |
| LOMBARDINI | Engine 2.2 | [LDW2204MT] | |
| LOMBARDINI | Engine 2.2 | [LDW2204M] | |
| LOMBARDINI | Engine 2.2 | [LDW2204TSD] |
