Alternator VALEO SG12B123 / SG12B110 / SG12B096

Information:

Voltage 14

Amp 125

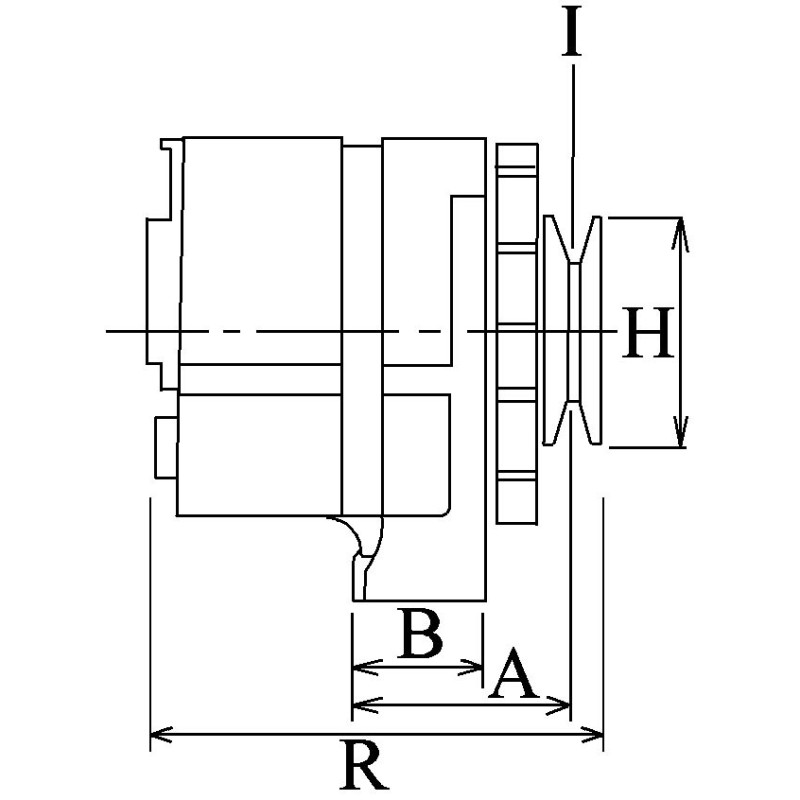

D = Bracket hole 8.70

G = Belt. adj. bracket hole 8.50

B = Width/holder arm 13.50

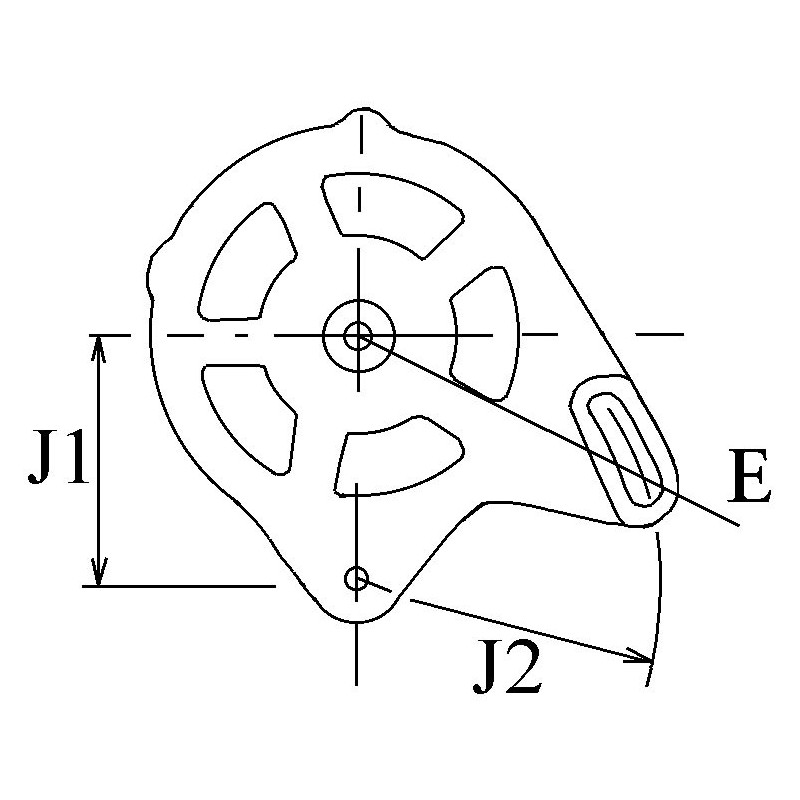

E = Belt. adj. brackethole pos. 45

C = Mount. bracket dist 60.90

H = Pulley dia. 49.00

Pulley dist. 32.50

Grooves/pulley 6

J = Radius 90.00

J = Radius 90.00

Position B + M8

Rotation Cr

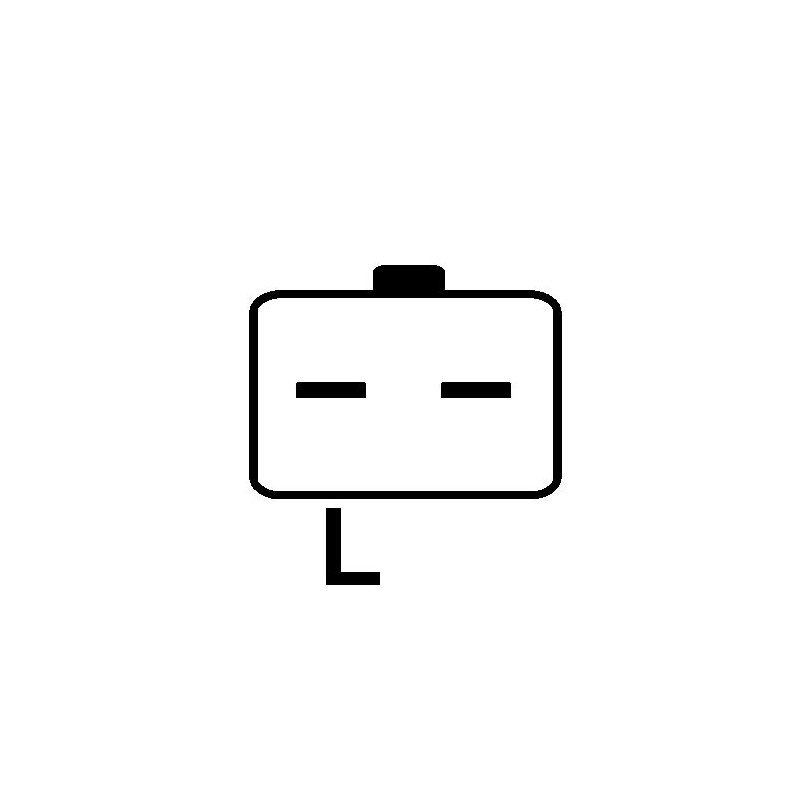

Plug no. 1 PL55

Fan If

Pulley Serpentine Pulley/ Freewheel pulley

R = Total length mm 179.00

= BOSCH 0986045241

= DELCO REMY DRA3918 / DRA4148 / DRA4186 / DRA4194 / DRA4208

= NISSAN 23100-00q0a / 23100-00qak / 23100-00QAM / 23100-00qbe

= MAGNETI MARELLI 943311246 / 944390901660

= MITSUBISHI mw30638577 / MW31216373

= ISKRA aak5782 / 11.203.950

= LUCAS LRA1990

= OPEL 9111540 / 93160665 / 93161425 / 93169265 / 93198179 / 4403540

4411316 / 4430591

= RENAULT 7700426849 / 7711134316 / 7711497093 / 8200162474 / 8200495302

8200538407 / 8200690190
= VALEO SG12B123 / SG12B110 / SG12B096 / SG12B071 / SG12B017 / 2543639 / 2543558
2543384 / 2543339 / 2542653 / 2542393D / 2542393A / 2542393 / 2542272E / 2542272C

2542272B / 2542272A / 2542272 / 2543558A / 2543384A / 2543339A / 2542653D

2542653A / 437208

= VOLVO 8251641 / 8251725 / 8253785 / 8602279 / 8602806

                                 NO CORE EXCHANGE NEEDED

                                                TWO YEARS WARRANTY
