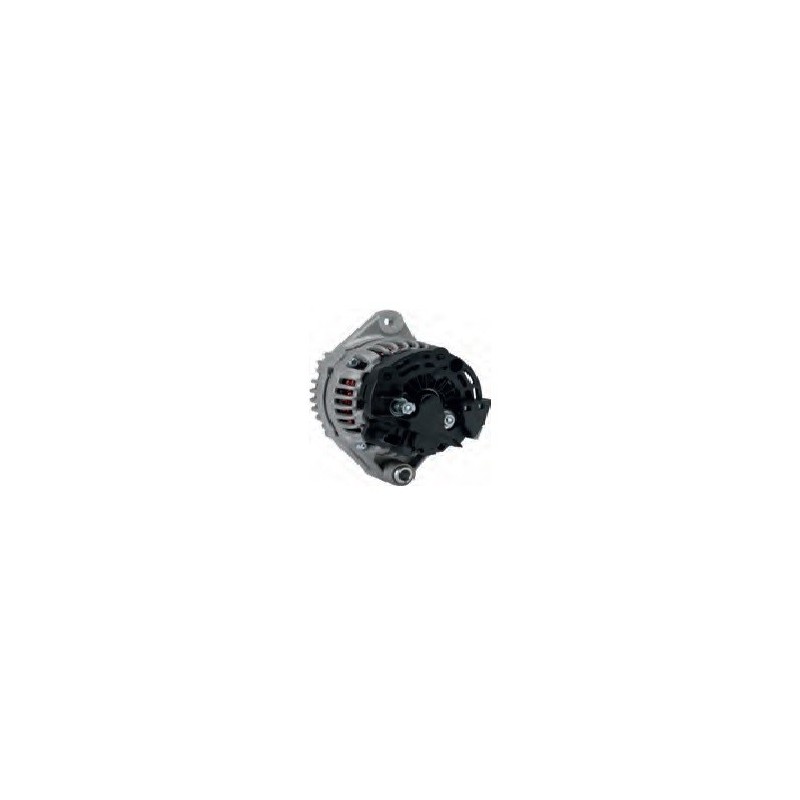

Alternator replacing BOSCH 0124425096 / 0124425058

Information:

Rotation Cr

Amp 120

Voltage 14

D = Bracket hole 12.50

G = Belt. adj. bracket hole 12.50

B = Width/holder arm 61.00

E = Belt. adj. brackethole pos. 60

H = Pulley dia. 54.00

A = Pulley dist. 113.00

Grooves/pulley 6

J = Radius 90.00

J = Radius 2 90.00

Position B + M8

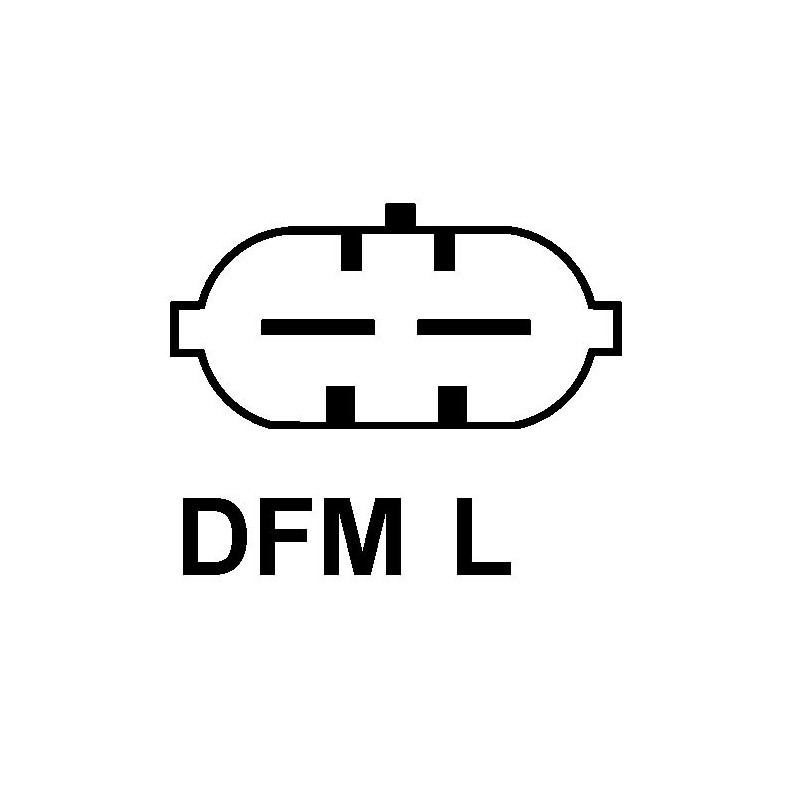

Plug no. 1 PL75

Fan If

Generic brand

= HELLA 8EL738212491

= LUCAS LRA03125

Used onon:

- Astra 1,9 diesel CDTi 150cv from 2004 to 2009

- Vectra 1,9 CDTi after 10 / 2005

                                    TWO YEARS WARRANTY

        NO CORE EXCHANGE NEEDED
