Alternator replacing HITACHI LR170-509H / LR170-509G / LR170- 509F / LR170-509E

Information:

Voltage 14

Amp 70

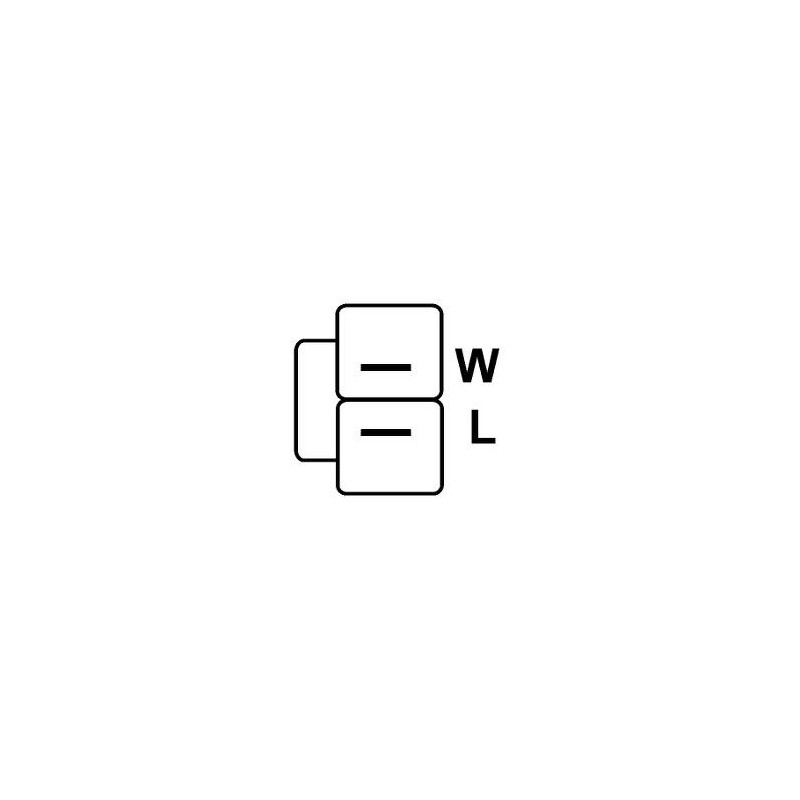

Plug type W

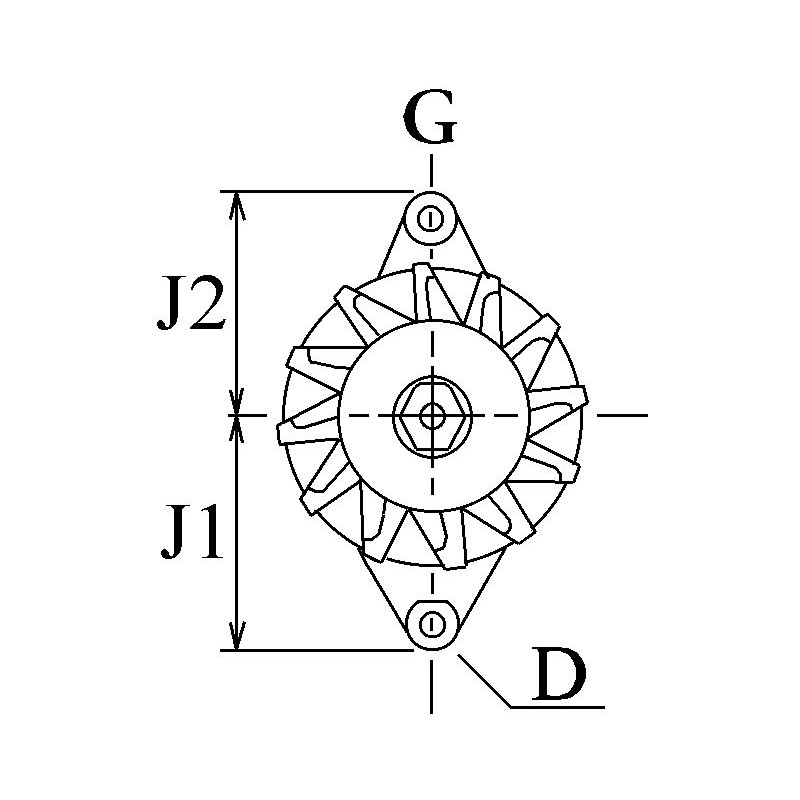

D = Bracket hole 10.30

G = Belt. adj. bracket hole 8.40

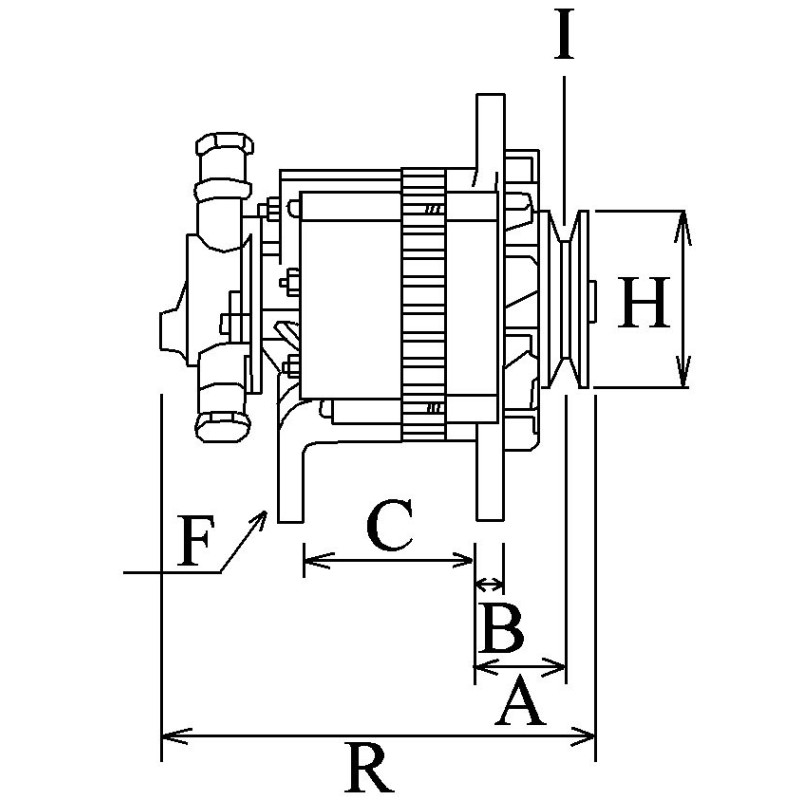

B = Width/holder arm 13.50

E = Belt. adj. brackethole pos. 57

C = Mount. bracket dist 66.3

H = Pulley dia. 60.00

A = Pulley dist. 36.00

Grooves/pulley 6

J = Radius 90.00

J = Radius 85.00

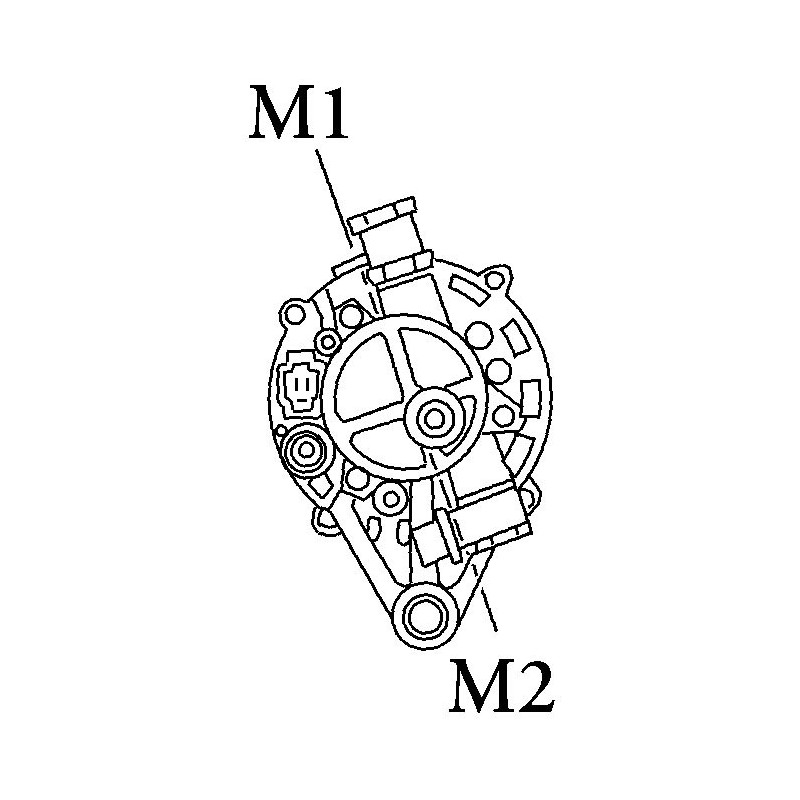

Position B + M8

Rotation Cr

Plug no. 1 PL50

Fan If

Pulley Serpentine Pulley

Total length mm 225.00

generic brand

= HITACHI LR170-509H / LR170-509G / LR170- 509F / LR170-509E / LR170-509C / LR170-509

= ISUZU 8971891122 / 8-97189112-2 / 8971891123 / 8-97189112-3 / 8971891124 /8971891125 / 8971891126

= OPEL 1204157 / 93178173 / 97189112

                  NO CORE EXCHANGE NEEDED

                                  TWO YEARS WARRANTY
