Alternator NEW replacing ISUZU 8973272181 / HITACHI LR180-513 / LR180-513B

w116107

New product

1 Item

Alternator NEW replacing:

ISUZU 8973272181 / 897327218

HITACHI LR180-513 / LR180-513B

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

158,90 € Inc VAT

More info

Electrical Information
Voltage14
Amp80

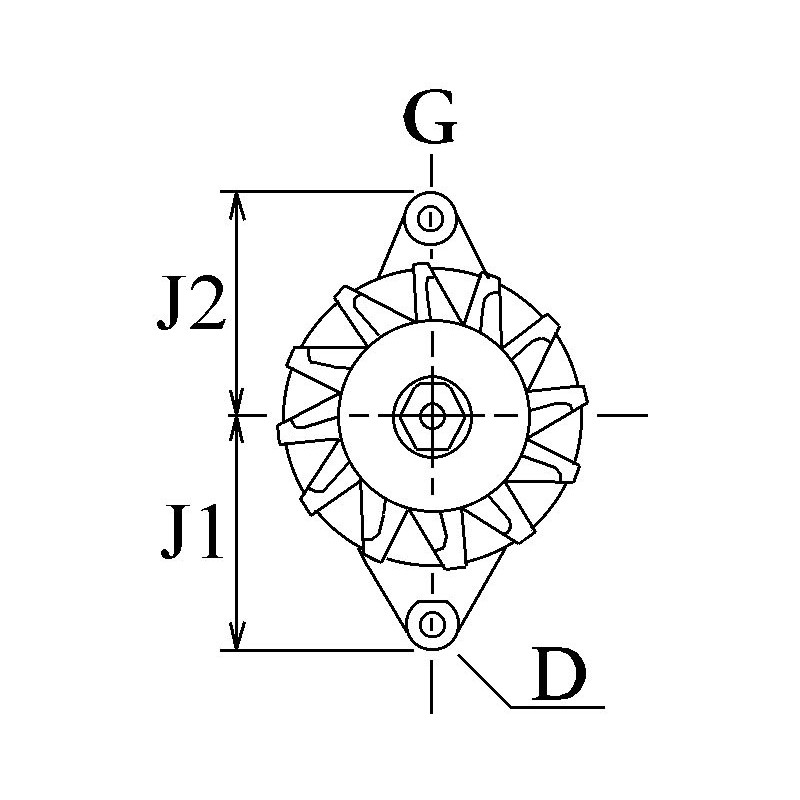

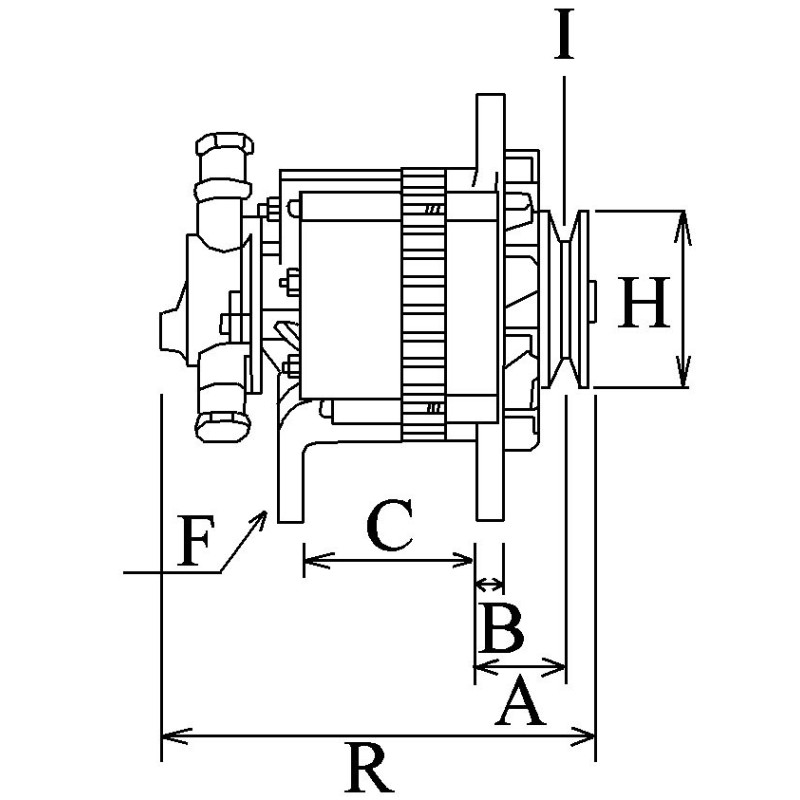

Physical Information
DBracket hole12.20
GBelt. adj. bracket hole10.50
BWidth/holder arm18.00
EBelt. adj. brackethole pos.5
CMount. bracket dist81.50
HPulley dia.82.00
APulley dist.49.00
iGrooves/pulley1
jRadius90,00
jRadius 285,00
kPosition B +M8
nRotationCr
oPlug no. 1PL07
RTotal length mm242,40

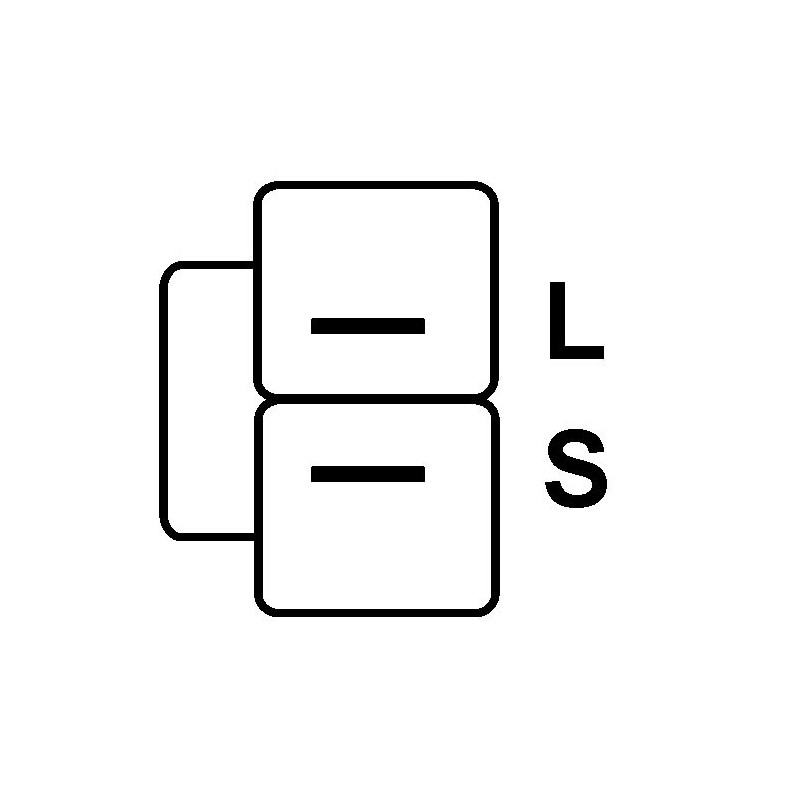

Tipo borneL-S
Un fil from branchement: (auto-excitation)Non
Replacing
8973272181ISUZU
lr180-513HITACHI
lr180-513BHITACHI

Data sheet

Poulieserpentine
Connecteur régulateurPL6
Ampérage140
Voltage14
