Alternator VALEO FG15T030 / 2606523B

Information:

Rotation Cr

Amp 150

Voltage 14

D =  Bracket hole 8.50

G = Belt. adj. bracket hole 8.50

B = Width/holder arm 14.00

E = Belt. adj. brackethole pos. 45

C = Mount. bracket dist 60.80

H =  Pulley dia. 48.50

A = Pulley dist. 33.00

Grooves/pulley 7

J = Radius 90.00

J = Radius 2 90.00

Position B + M8

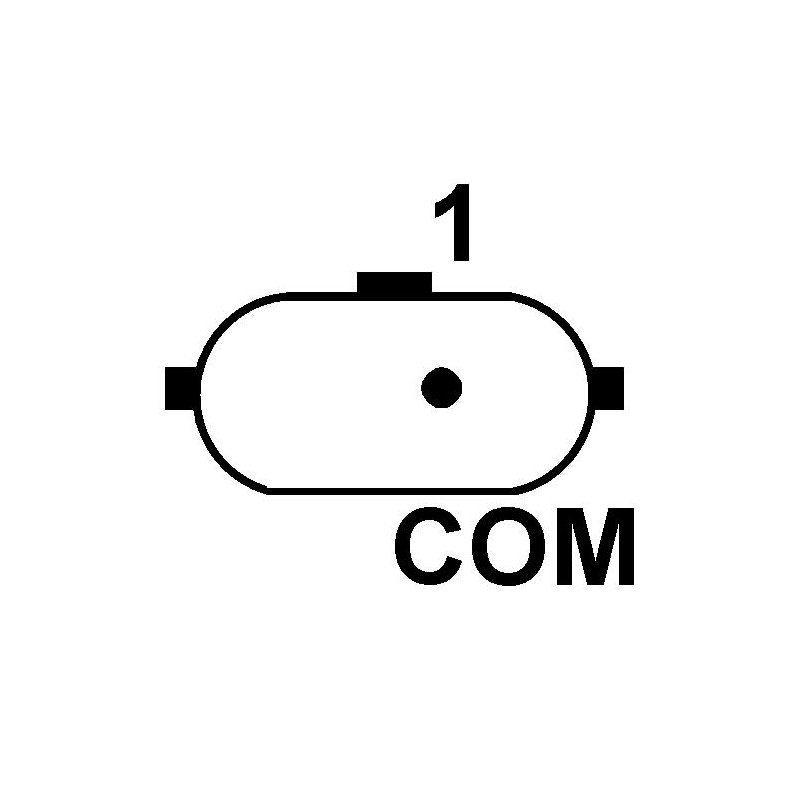

Plug no. 1 PL131

Fan If

Pulley Serpentine Pulley/ Freewheel pulley

R = Total length mm 192.00

Fabriqué VALEO

Tipo borne COM

                NO CORE EXCHANGE NEEDED

                                     TWO YEARS WARRANTY
