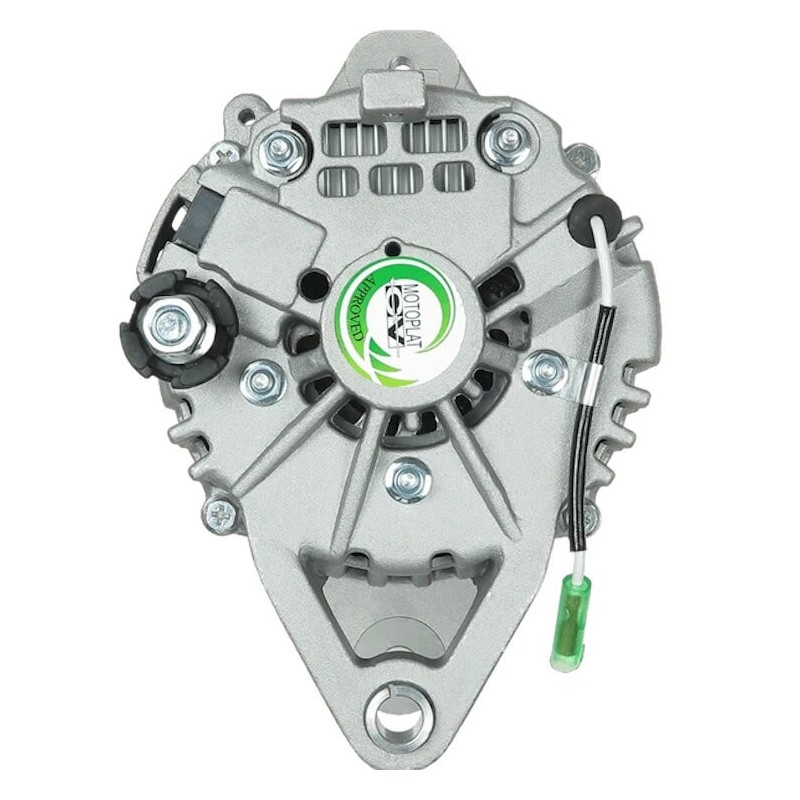

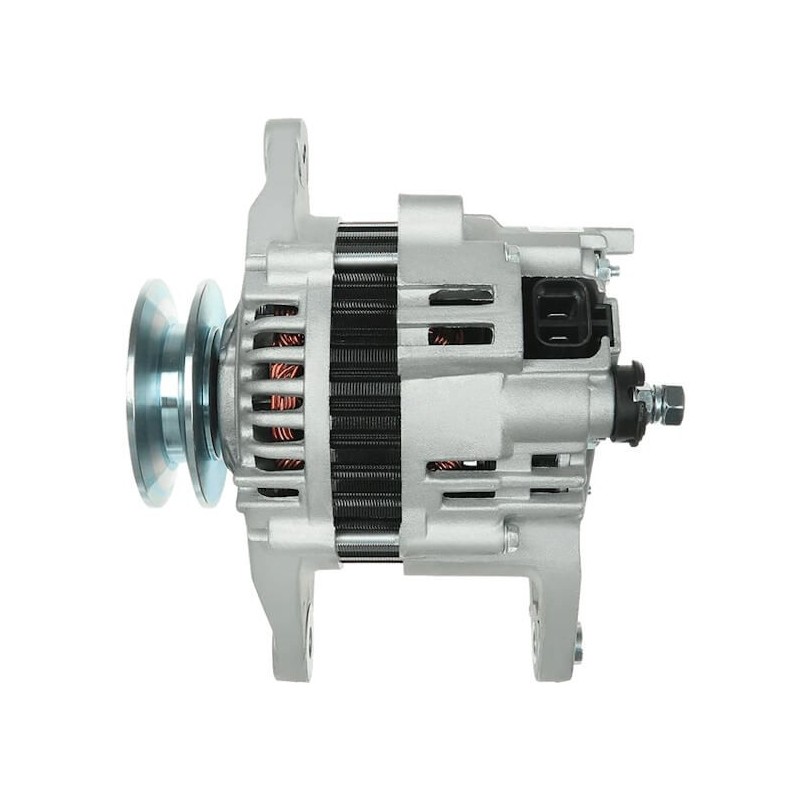

Alternator replacing LR180-763 / lr180-772 for KOMATSU

Information:

Voltage 14

Amp 80

D = Bracket hole 10.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 80.00

H = Pulley dia. 81.50

A = Pulley dist. 46.00

Grooves/pulley 1

J = Radius 85.00

J = Radius 85.00

Position B + M6

Rotation Cr

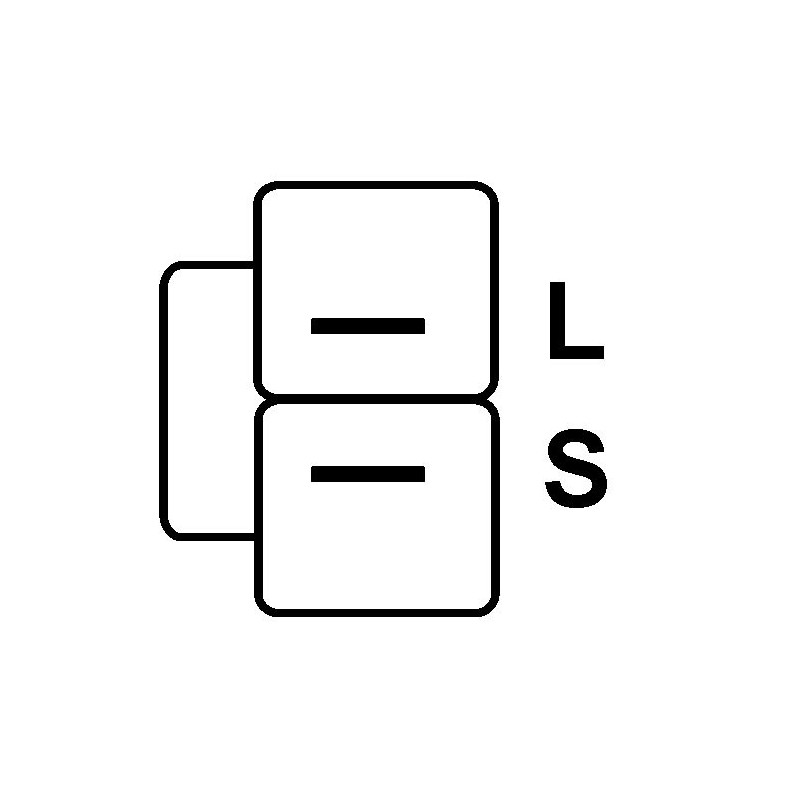

Plug no. 1 PL07

Pulley Pulley

R = Total length mm 172.00

generic brand

= HITACHI LR180-763 / lr180-772

= YANMAR 123910-77210 / 129612-77290

 generic brand

                             NO CORE EXCHANGE NEEDED

                                                TWO YEARS WARRANTY

for
