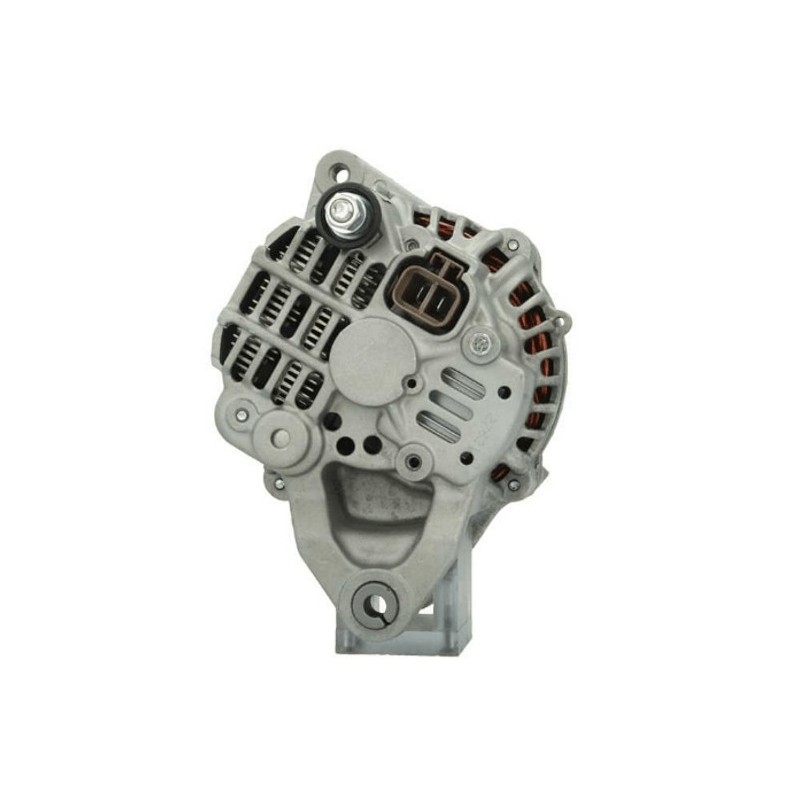

Alternator replacing MITSUBISHI A2TA2871 / A002TA2871A / A002TA2871

Information:

Voltage 14

Amp 50

D = Bracket hole 8.40

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.00

E = Belt. adj. brackethole pos. 3

C = Mount. bracket dist 79.40

H = Pulley dia. 69.00

A = Pulley dist. 41.50

Grooves/pulley 1

J = Radius 90.00

J = Radius 88.00

Position B + M8

Rotation Cr

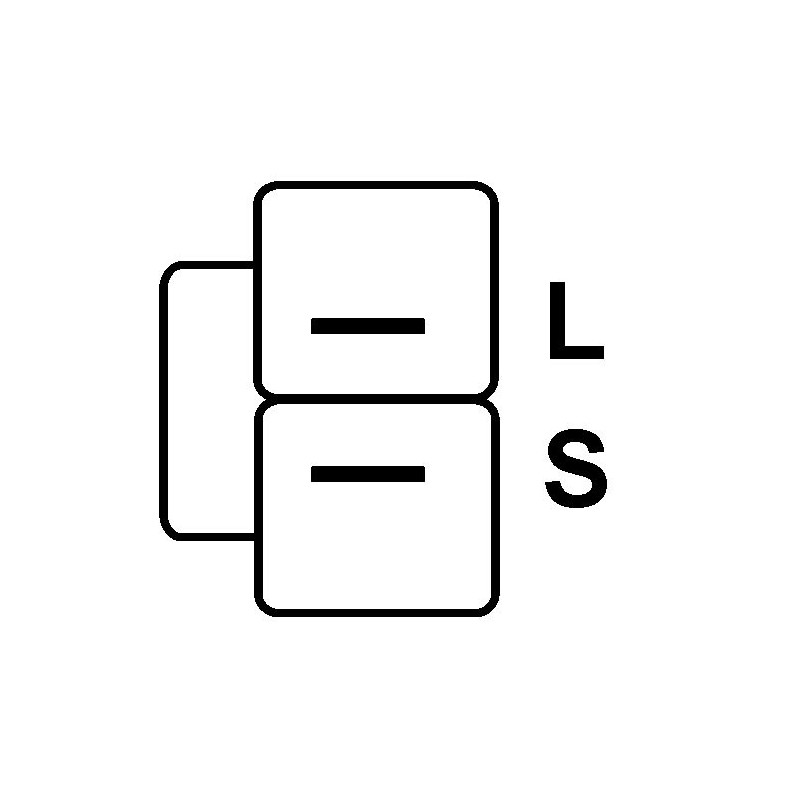

Plug no. 1 PL07

Fan If

Pulley Pulley

R  = Total length mm 165.00

generic brand

= MITSUBISHI MD354809 / MD316418 / A2TA2871A / A2TA2871 / A002TA2871A / A002TA2871

                        NO CORE EXCHANGE NEEDED

                                    TWO YEARS WARRANTY
