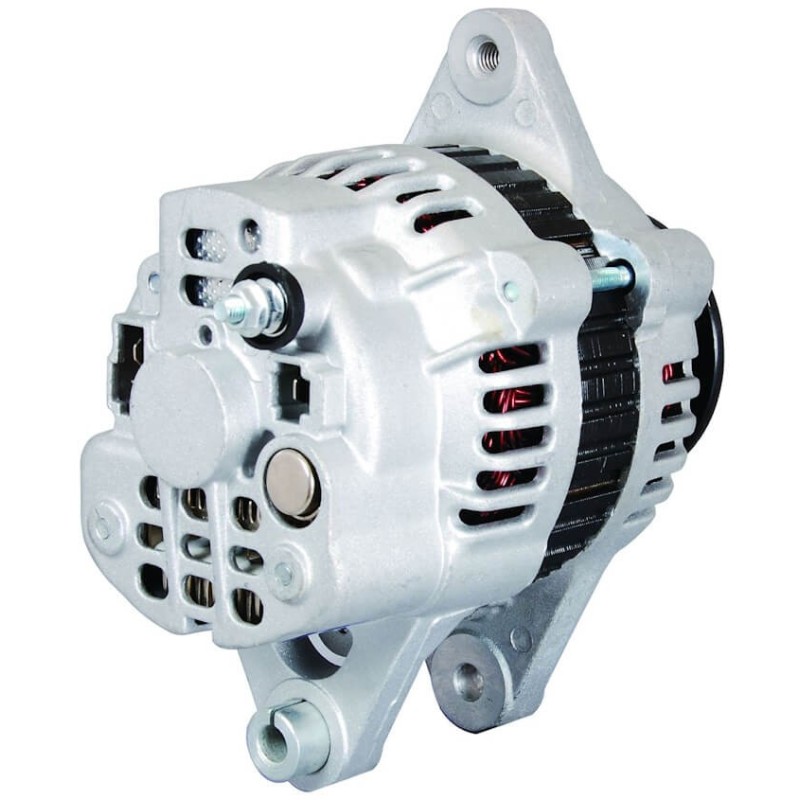

Alternator NEW für CATERPILLAR / Cub cadet / MITSUBISHI / Toro
= CATERPILLAR 1038008 / 138008
= MITSUBISHI A000T25171 / A000T25271 / A000T25371 / A000T25471 / a0t25171
MM131020 / MM432804 / MM435081 / MM435751 / MM435752 / A0T25171
= PRESTOLITE 66021126M
= Sole diesel 13827210
= Toro 67-4630
= Vetus marine STM1243
Information:
Rotation Cr
Amp 40
Voltage 14

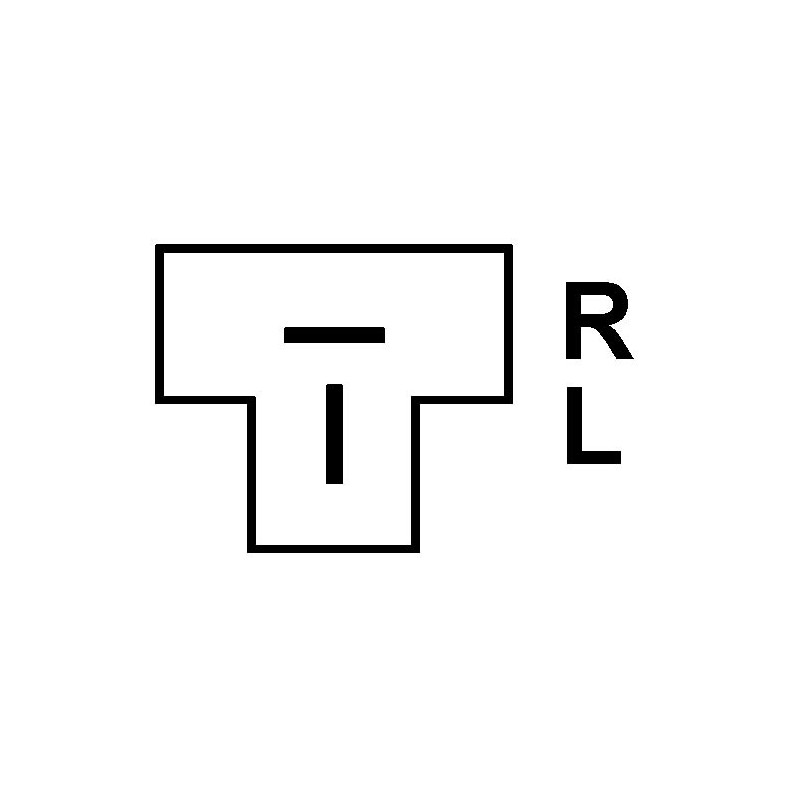

Plug type W
D = Bracket hole 8.50
G = Belt. adj. bracket hole M8
B = Width/holder arm 16.75
E = Belt. adj. brackethole pos. 60
C = Mount. bracket dist 41.00
H = Pulley dia. 70.20
A = Pulley dist. 42.00
Grooves/pulley 1
J = Radius 74.45
J = Radius 2 70.00
Position B + M5
Plug no. 1 PL09
Fan If
Pulley Pulley
Tipo regulator Ir
R = Total length mm 154.50
generic brand
= CATERPILLAR 1038008 / 138008
= MITSUBISHI A000T25171 / A000T25271 / A000T25371 / A000T25471
MM131020 / MM432804 / MM435081 / MM435751 / MM435752
= PRESTOLITE 66021126M
= Sole diesel 13827210
= Toro 67-4630
= Vetus marine STM1243
For
| Brand | Model | Typ | Year |
| CASE | 7195 | 01.1995-12.2005 | |
| CASE | 7235 | 01.1995-12.2005 | |
| CASE | 1120 | [3-65] | 01.1991-12.1992 |
| CASE | 1130 | [3-75] | 01.1991-12.1992 |
| CASE | 1140 | [3-91] | 01.1991-12.1992 |
| CATERPILLAR | GP40 | 01.1997-12.2007 | |
| CATERPILLAR | GPL40 | 01.1997-12.2007 | |
| CUB CADET | 7192 | [(19HP)3-65] | 01.1995-12.1997 |
| CUB CADET | 7193 | [(19HP)3-65] | 01.1996-12.1997 |
| CUB CADET | 7194 | [(19HP)3-65] | 01.1995-12.1997 |
| CUB CADET | 7195 | [(19HP)3-65] | 01.1995-12.1997 |
| CUB CADET | 7232 | [(23HP)3-75] | 01.1995-12.1997 |
| CUB CADET | 7233 | [(23HP)3-75] | 01.1996-12.1997 |
| CUB CADET | 7234 | [(23HP)3-75] | 01.1995-12.1997 |
| CUB CADET | 7235 | [(23HP)3-75] | 01.1995-12.1997 |
| CUB CADET | 7272 | [(27HP)3-91] | 01.1995-12.1997 |
| CUB CADET | 7273 | [(27HP)3-91] | 01.1996-12.1997 |
| CUB CADET | 7274 | [(27HP)3-91] | 01.1995-12.1997 |
| CUB CADET | 7275 | [(27HP)3-91] | 01.1995-12.1997 |
| CUB CADET | 7300 | [(30HP)3-91] | 01.1998-12.2003 |
| CUB CADET | 7305 | [(30HP)3-91] | 01.1998-12.2003 |
| HURLIMANN | Prince 325 | ||
| HURLIMANN | Prince 325XV | ||
| HURLIMANN | Prince 435 | ||
| HURLIMANN | Prince 445 | ||
| MITSUBISHI | FG-40G | [6G72] | |
| MITSUBISHI | FG-40G2 | [6G72] | |
| MITSUBISHI | FG-40LP | [6G72] | |
| MITSUBISHI | FG-40LP2 | [6G72] | |
| MITSUBISHI | FG-40LPS | [6G72] | |
| MITSUBISHI | Engine | [K3] | 01.1987-12.1997 |
| MITSUBISHI | Engine | [K4E] | 01.1987-12.1997 |
| MITSUBISHI | Engine | [K4M] | |
| MITSUBISHI | Engine | [L3C] | |
| MITSUBISHI | Engine | [L3E] | |
| MITSUBISHI | Engine | [L3] | 01.1986-12.1996 |
| SAME | Solaris 45 | [4-91] | 01.1999-12.2009 |
| SOLE DIESEL | Engine 0.5 | [Mini-11] | |
| SOLE DIESEL | Engine 0.6 | [Mini-17] | |
| SOLE DIESEL | Engine 1.0 | [Mini-26] | |
| SOLE DIESEL | Engine 1.0 | [Mini-29] | |
| SOLE DIESEL | Engine 2.0 | [Mini-48] | |
| TORO | Greensmaster 3000D | 01.1990-12.2000 | |
| TORO | Groundsmaster 220D | 01.1988-12.1991 | |
| TORO | Groundsmaster 223D | 01.1992-12.1997 | |
| TORO | Groundsmaster 224 | 01.1989-12.1996 | |
| TORO | Reelmaster 223D | [L3E] | 01.1988-12.1992 |
| TORO | Reelmaster 5100D | 01.1990-12.1998 | |
| TORO | Workman 3300D | [L3E] | 01.1993-12.1998 |
| TORO | Workman 4300D | 01.1994-12.1998 | |
| VETUS | Engine | [M2.04] | |
| VETUS | Engine | [M2.06] | |
| VETUS | Engine | [M2.C5] | |
| VETUS | Engine | [M2.D5] |
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
