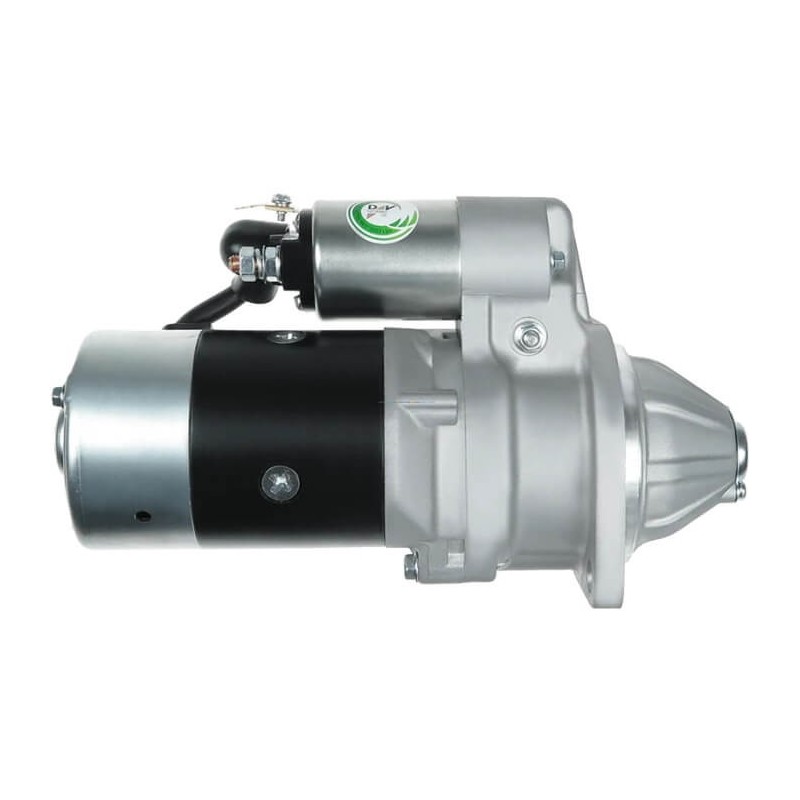

Starter replacing S13-138 / S13-138A / 129953-77010 / 129953-77019
Starter replacing S13-138 / S13-138A / 129953-77010 / 129953-77019
Starter replacing S13-138 / S13-138A / 129953-77010 / 129953-77019
Starter replacing S13-138 / S13-138A / 129953-77010 / 129953-77019
Previous
Next
Starter replacing S13-138 / S13-138A / 129953-77010 / 129953-77019
Starter replacing S13-138 / S13-138A / 129953-77010 / 129953-77019
Starter replacing S13-138 / S13-138A / 129953-77010 / 129953-77019
Starter replacing S13-138 / S13-138A / 129953-77010 / 129953-77019

Starter replacing S13-138 / S13-138A / 129953-77010 / 129953-77019

w19694N

12995377010 Yanmar
12995377019 Yanmar
253177 Elstock
682019092 DRI
8141 CEVAM
91251180 Wilson
980517092 PSH
AYS118 ATK
DEM60S13138 ADI
DRS0795 Remy
LRS01643 Lucas
LRS1643 Lucas
S13138 Hitachi
Read more
€189.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

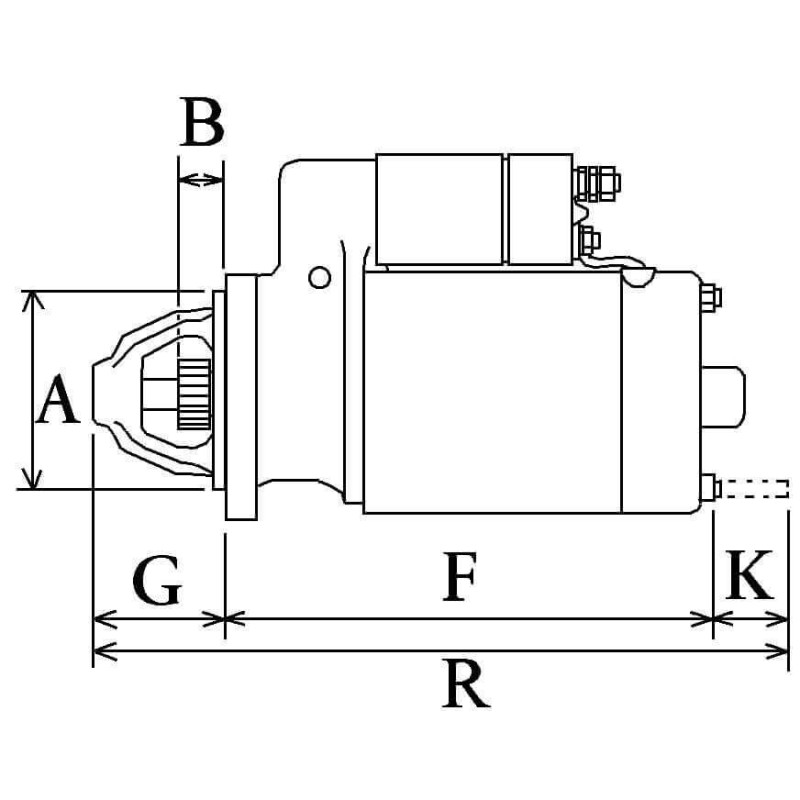

Physical information
H No./teeth 9
P Rotation CW
N Gear type GR
A Mount. flange 95.00
I B+ M8
No./mount. holes 2 (0)
B Drive dist. 20.00
E Mount. hole 1 mm 12.65
E Mount. hole 2 mm 12.60
F Dist./back 230.00
G Dist./front 62.00
M Mount. bracket No
O Dist. mm 119.45
R Total length mm 292.00
Catalogue information
Clutch type Wet
Drive type Steel
Prod. info BN
Waterproof No
Oil sealed No
Electrical information
Voltage 12
kW 3.0

generic brand

replacing

112672 CARGO
129953-77010 YANMAR
129953-77019 YANMAR
19694N WAI / TRANSPO
20445551BN REAL
20445551OE REAL
220701 ERA
240-30101 DIXIE
25-3177 ELSTOCK
6020155.0 SANDO
6020155.1 SANDO
8141 CEVAM
91-25-1180 WILSON
980.517.092 PSH
CGB-23068 AINDE
CST20155AS CASCO
CST20155GS CASCO
DRS0795 DELCO
HITS13-138 WOODAUTO
LRS01643 LUCAS
LRS1643 LUCAS
MAV221550 SIOM
S-80174 DIXIE
S13-138 HITACHI
STH2672 KRAUF
UD13635S AS-PL
S2088S AS-PL
S12HT0508A2 SIDAT
336246 LOGISTIK

for

Brand Model Typ Year
YANMAR Engine [3TG66]
YANMAR Engine [4TNE98] 01/01/96
