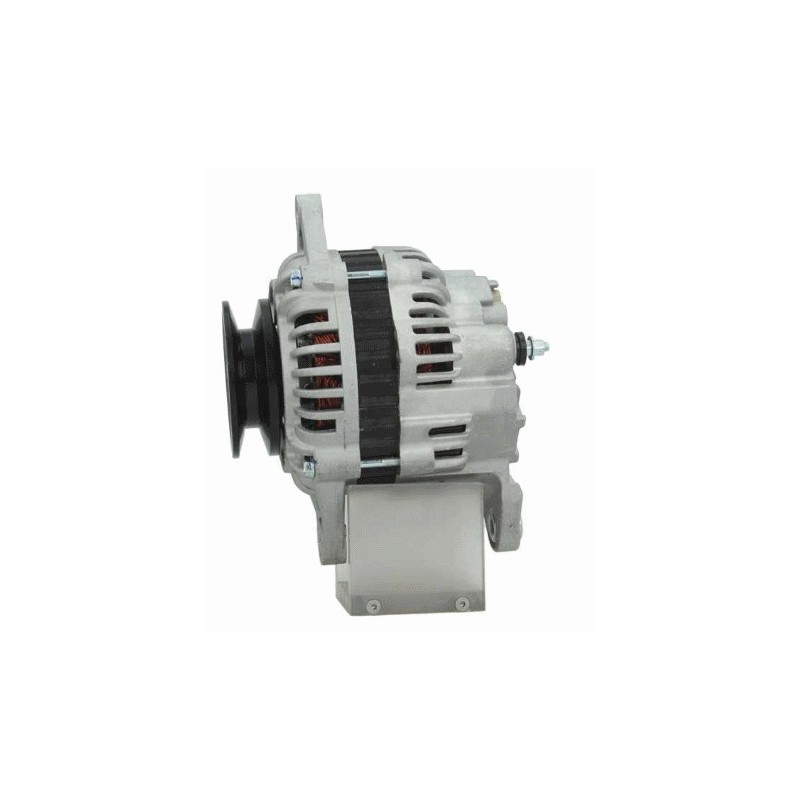

Alternator replacing A002TA8383 / a2ta8383 / 8971822892
w114456
Alternator NEW replacing :
MITSUBISHI A002TA8383 / a2ta8383
NEW HOLLAND VI8971822892
ISUZU 8971822892
DRA1607 / LRA02538
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features
Electrical Information | ||
---|---|---|
Voltage | 28 | |
Amp | 30 |
More information
Physical Information | ||
---|---|---|
D | Bracket hole | 8.50 |
G | Belt. adj. bracket hole | 8.50 |
B | Width/holder arm | 12.80 |
E | Belt. adj. brackethole pos. | 60 |
C | Mount. bracket dist | 81.00 |
H | Pulley dia. | 85.00 |
A | Pulley dist. | 43.00 |
i | Grooves/pulley | 1 |
j | Radius | 90.00 |
j | Radius 2 | 85.00 |
k | Position B + | M5 |
n | Rotation | CW |

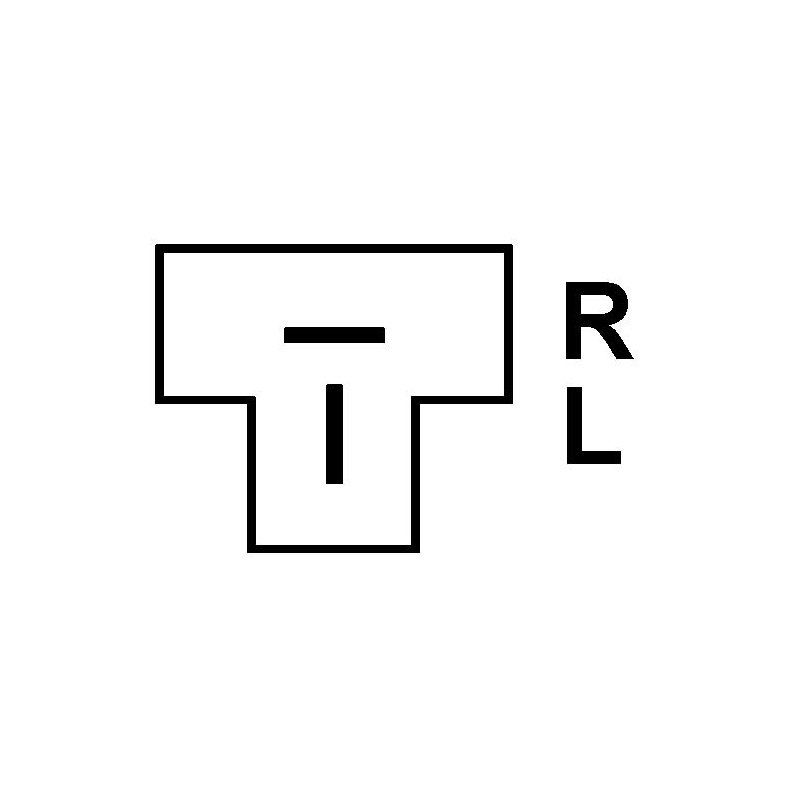

o | Plug no. 1 | PL09 |
R | Total length mm | 161.00 |
generic brand
Replacing | |
---|---|
8971822892 | ISUZU |
A002TA8383 | MITSUBISHI |
a2ta8383 | MITSUBISHI |
