Alternator for FORD / VOLVO / SEAT
Alternator MITSUBISHI A002TX2581 / A2TX2581ZC / A2TX2681 / A2TX2681ZC
€228.90

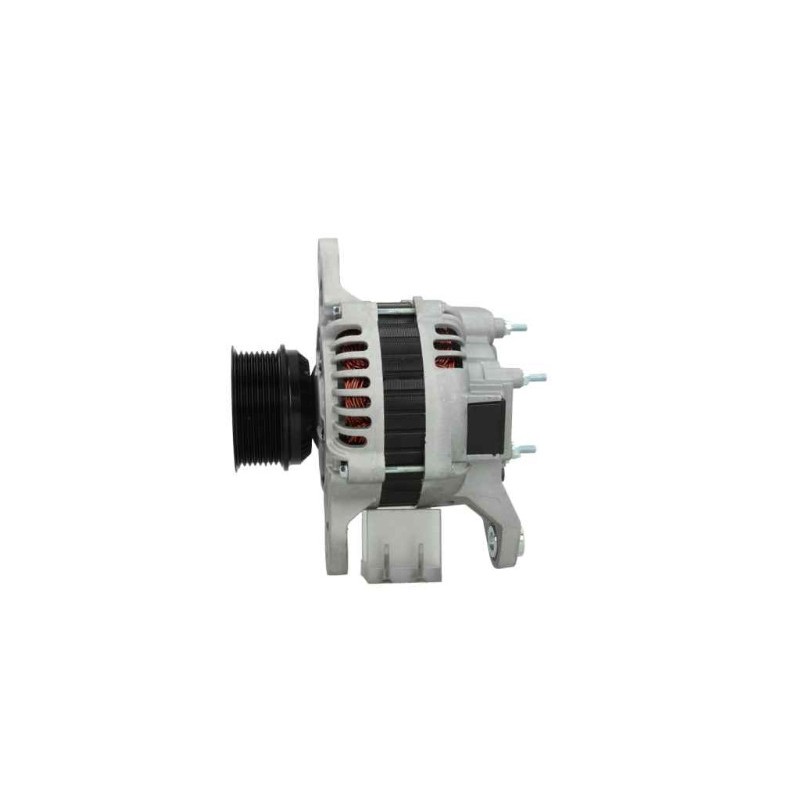

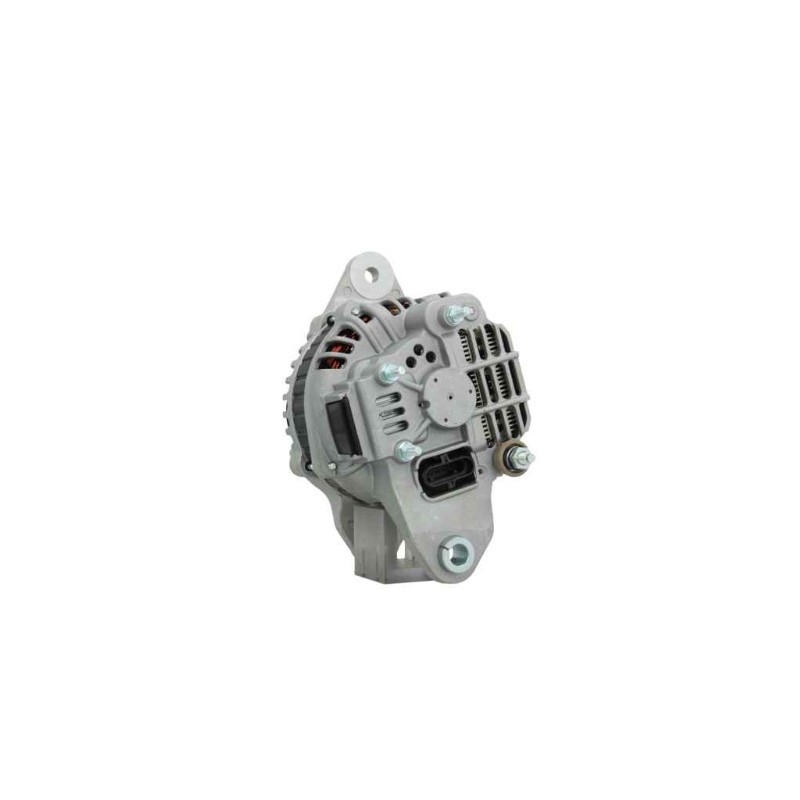

Alternator replacing MITSUBISHI A004TR5391 / A004TR5391ZT / A004TR5393
w114407
Alternator replacing VOLVO 21041752 / RENAULT 5010589305 / 7420842441
= MITSUBISHI A004TR5393 / A004TR5393ZT / A4TR5391 / A4TR5391ZT / A4TR5393
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features
Electrical Information | ||
|---|---|---|
| Voltage | 28 | |
| Amp | 90 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 13.00 |
| G | Belt. adj. bracket hole | 10.60 |
| B | Width/holder arm | 13.80 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 101.00 |
| H | Pulley dia. | 82.00 |
| A | Pulley dist. | 44.50 |
| i | Grooves/pulley | 8 |
| j | Radius | 99.50 |
| j | Radius 2 | 99.50 |
| k | Position B + | M8 |
| n | Rotation | Cr |

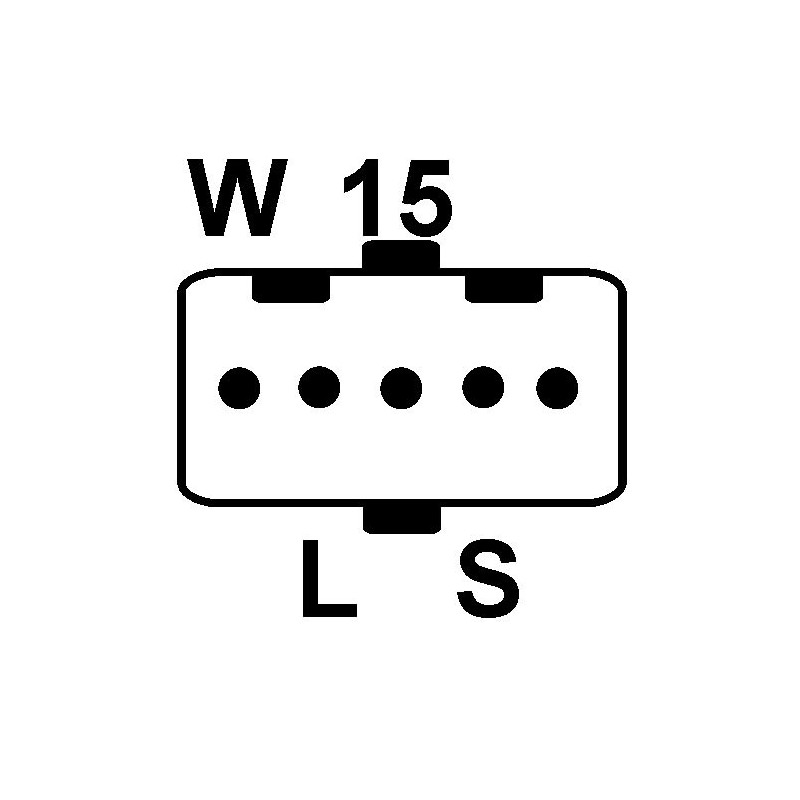

| o | Plug no. 1 | PL182 |
| Q | Tipo prise W | Plug |
Replacing | |
|---|---|
| 21041752 | VOLVO |
| 5010589305 | RENAULT |
| 7420842441 | RENAULT |
| A004TR5391 | MITSUBISHI |
| A004TR5391ZT | MITSUBISHI |
| A004TR5393 | MITSUBISHI |
| A004TR5393ZT | MITSUBISHI |
| A4TR5391 | MITSUBISHI |
| A4TR5391ZT | MITSUBISHI |
| A4TR5393 | MITSUBISHI |
generic brand
| 210913A |
| 486555 |
| 5001868213 |
| 5010589305 |
| 576507090 |
| 930842 |
| A004TR5391 |
| A004TR5393 |
| A4TR5391 |
| A4TR5391ZT |
| A4TR5393 |
| A4TR5393ZT |
| DRA0842 |
| LRA03447 |
Mounted on :
RENAULT - Truck - KERAX - PREMIUM - Pick-up - Trailer - Tombereau
VOLVO
| FM Series | FM 370 | 10.8 | Diesel | 2008 06 | D11C370 | 272 | 370 | Trailer | 10840 | 6 |
| FM Series | FM 370 | 10.8 | Diesel | 2008 06 | D11C370 | 272 | 370 | Trailer | 10840 | 6 |
| FM Series | FM 370 | 10.8 | Diesel | 2008 06 | D11K370 | 272 | 370 | Trailer | 10840 | 6 |
