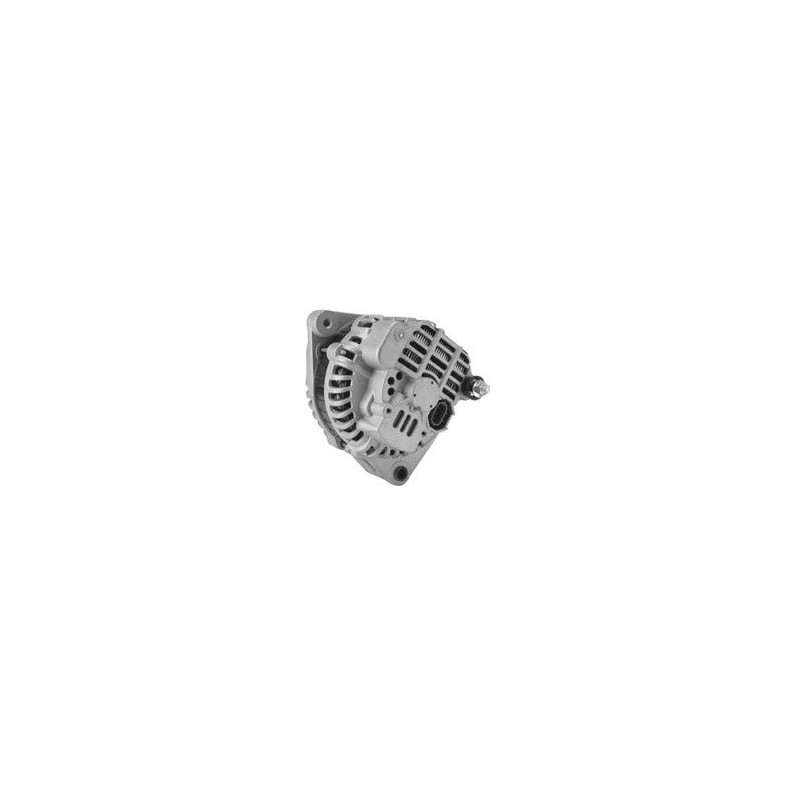

Alternator replacing MITSUBISHI A4TA8491 / A4TA0591 / A004TA8491

Information:

Voltage 28

Amp 90

D = Bracket hole 10.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 58.10

E = Belt. adj. brackethole pos. 7

H = Pulley dia. 62.00

A = Pulley dist. 90.00

Grooves/pulley 10

J = Radius 90.00

J = Radius 90.00

Position B + M8

Rotation Cr

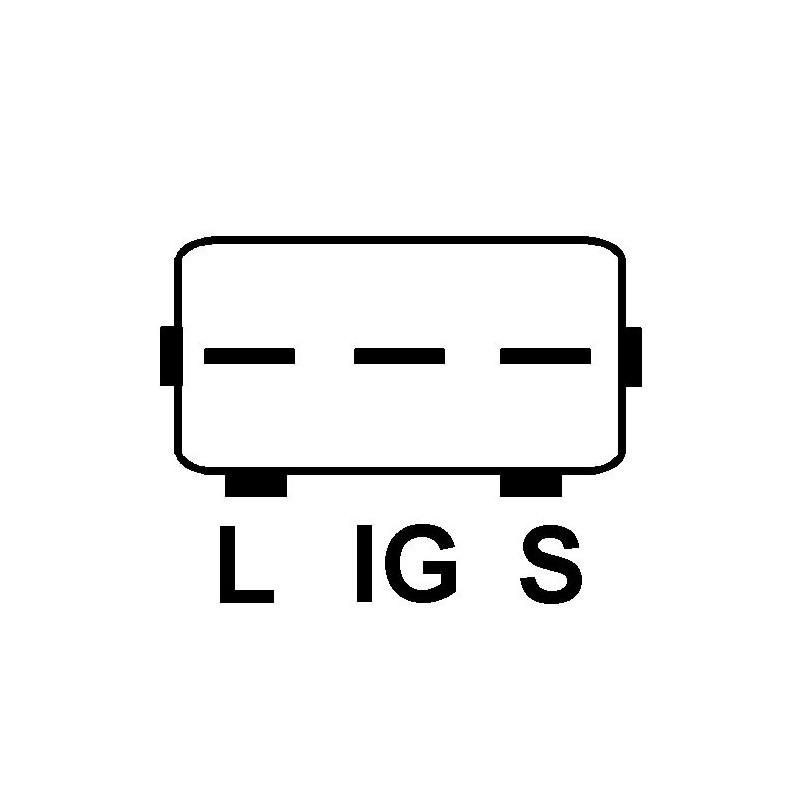

Plug no. 1 PL42

Fan If

Pulley Serpentine Pulley

R = Total length mm 213.00

= MITSUBISHI A4TA8491 / A4TA0591 / A004TA8491 / A004TA0591

= BOSCH 0123525500 / 0123525503

= IVECO 500331736 / 504065776 / 504286394 / 99477271

generic brand

                             NO CORE EXCHANGE NEEDED

                                              TWO YEARS WARRANTY
