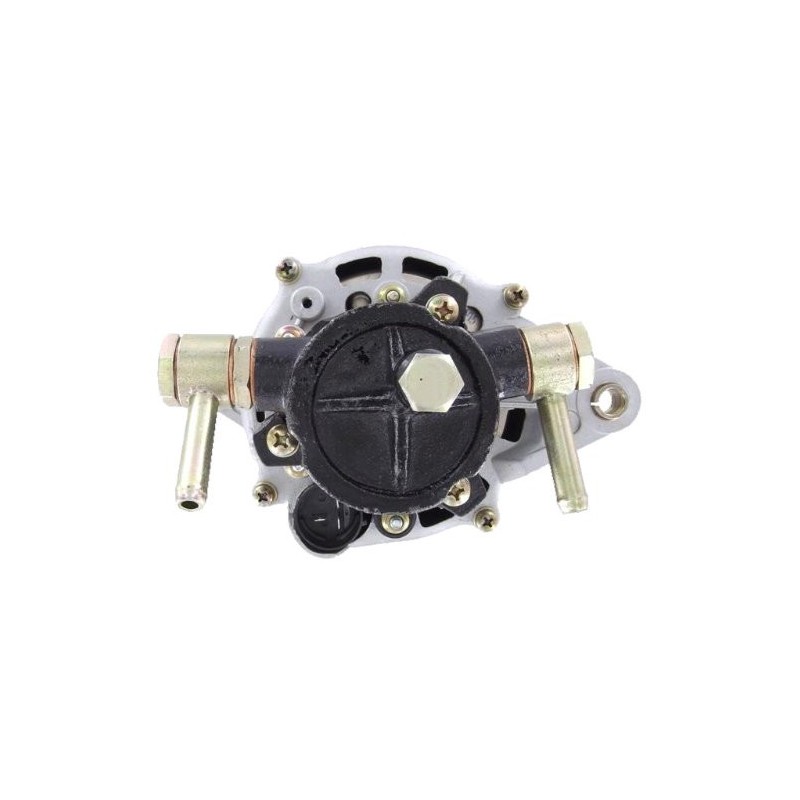

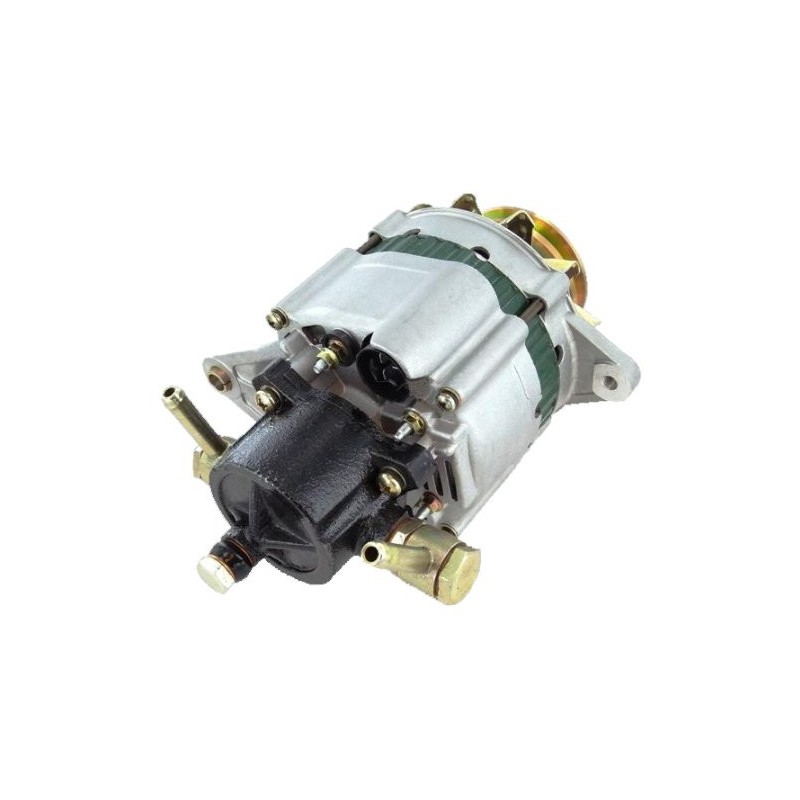

Alternator replacing HITACHI LR170-418C / LR170-418B / LR170- 418

Information:

Voltage 14

Amp 70

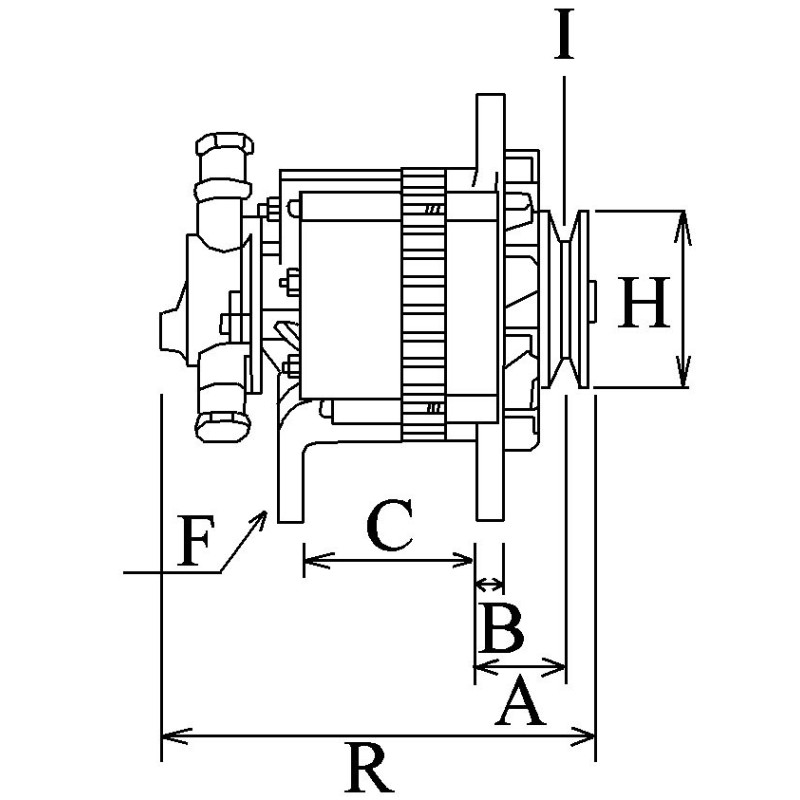

D = Bracket hole 10.25

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.75

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 81.75

H = Pulley dia. 88.20

A = Pulley dist. 47.30

Grooves/pulley 2

J = Radius 91.00

J = Radius 81.00

Position B + M5

Rotation Cr

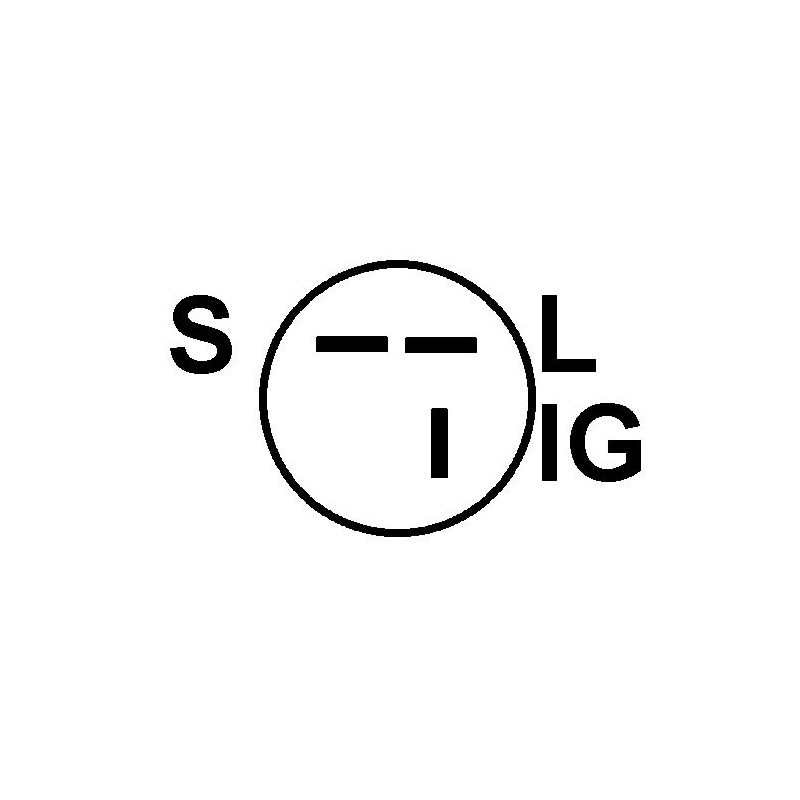

Plug no. 1 PL32

Fan Ef

Pulley Pulley double

R = Total length mm 271.00

generic brand

Used on  :

CHEVROLET truck 3,9 essence type 4BD1 / 4BD2

ISUZU série N 3,9 diesel engine type 4BD1
