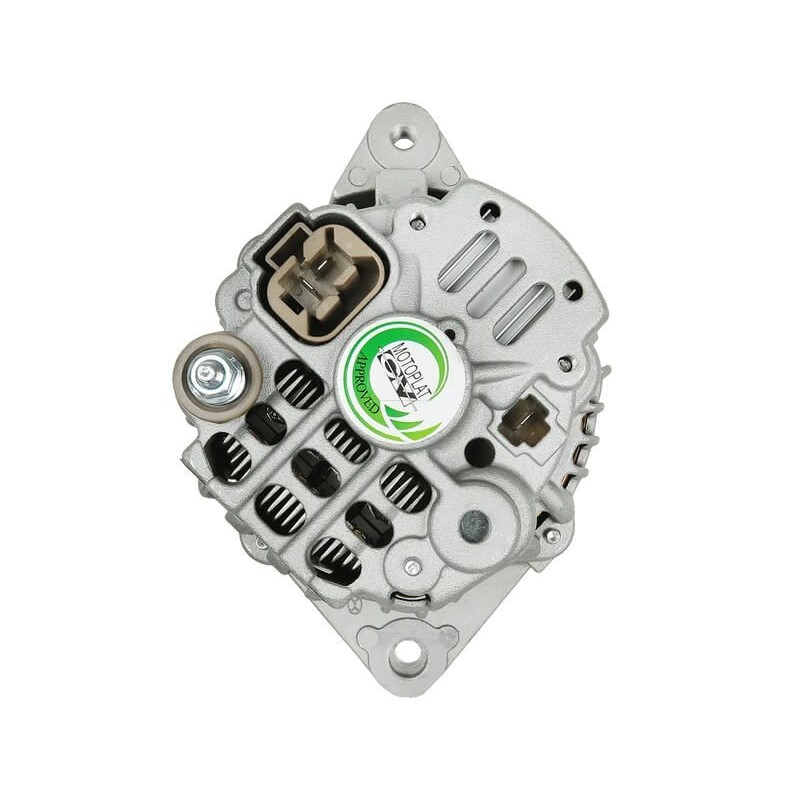

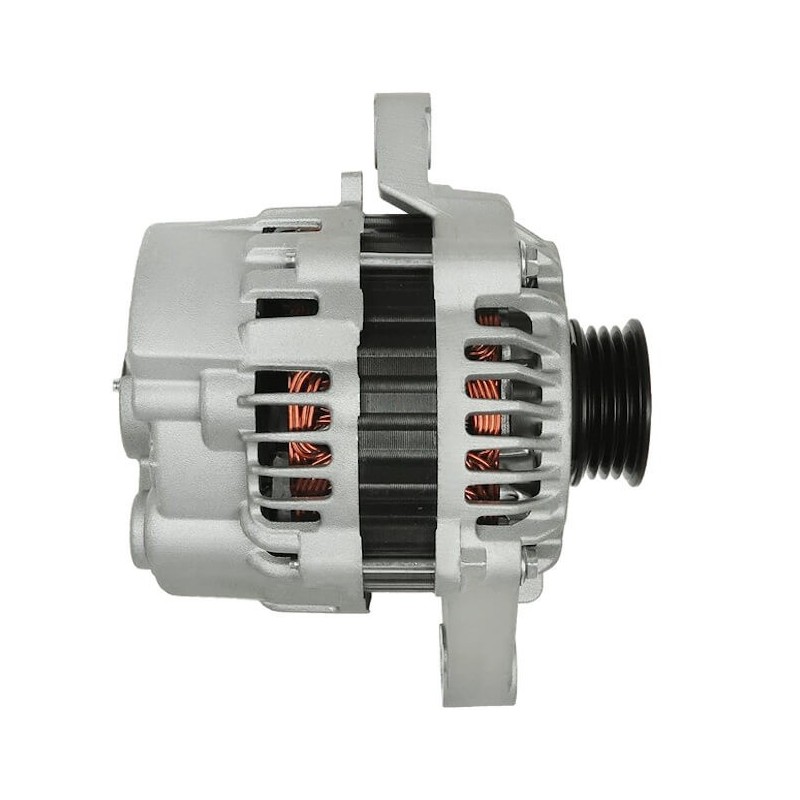

Alternator replacing A007TA1491 / A7TA1491 / JCB 750-15330
W112559
112559 | CARGO |
12728N | WAI / TRANSPO |
20137632OE | REAL |
2035236 | SANDO |
28-6785 | ELSTOCK |
705.508.040 | PSH |
750-15330 | LISTER |
90-27-3272 | WILSON |
90-27-3272N | WILSON |
A-80078 | DIXIE |
A007TA1491 | MITSUBISHI |
A7TA1491 | MITSUBISHI |
ALT28000 | WOODAUTO |
CAL35236GS | CASCO |
CGB-13071 | AINDE |
Features
Information:
Electrical Information | ||
---|---|---|
Voltage | 14 | |
Amp | 50 | |

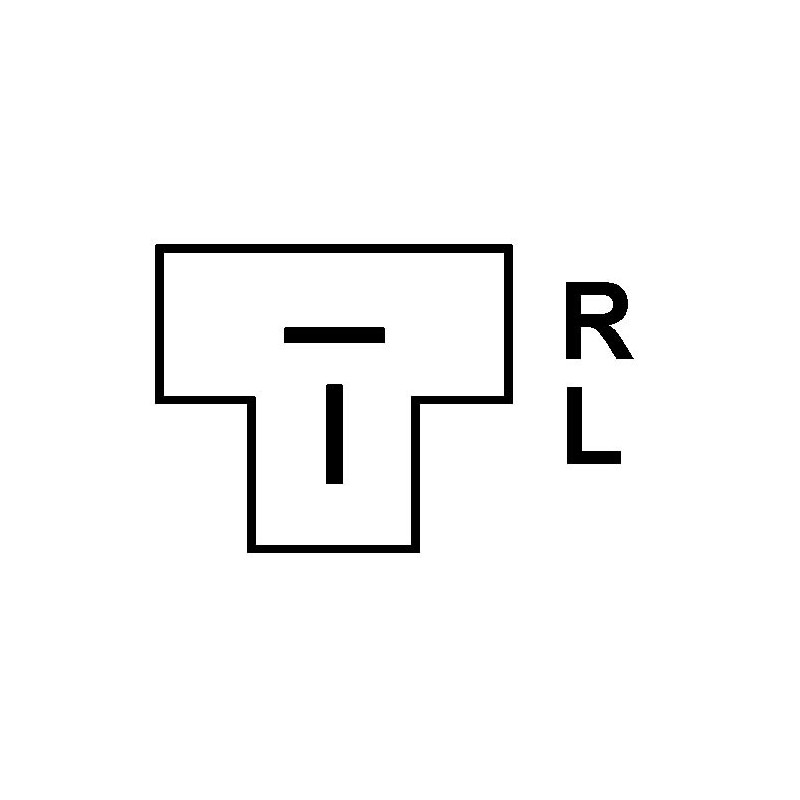

Plug type | W |
Physical Information | ||
---|---|---|
D | Bracket hole | 8.50 |
G | Belt. adj. bracket hole | M8 |
B | Width/holder arm | 21.00 |
E | Belt. adj. brackethole pos. | 60 |
H | Pulley dia. | 45.00 |
A | Pulley dist. | 42.00 |
i | Grooves/pulley | 4 |
j | Radius | 78.00 |
j | Radius 2 | 78.00 |
k | Position B + | M6 |
n | Rotation | CW |
o | Plug no. 1 | PL09 |
Q | Tipo prise W | 6.30 |
R | Total length mm | 165.00 |
generic brand
Mounted on :
Brand | Model | Typ | Year |
HAWKPOWER | GS12D-LP | 01/01/95 | |
LISTER PETTER | Alpha LPWS2 | 01/01/02 | |
LISTER PETTER | Alpha LPWS3 | 01/01/02 | |
LISTER PETTER | Alpha LPWS4 | 01/01/02 |
