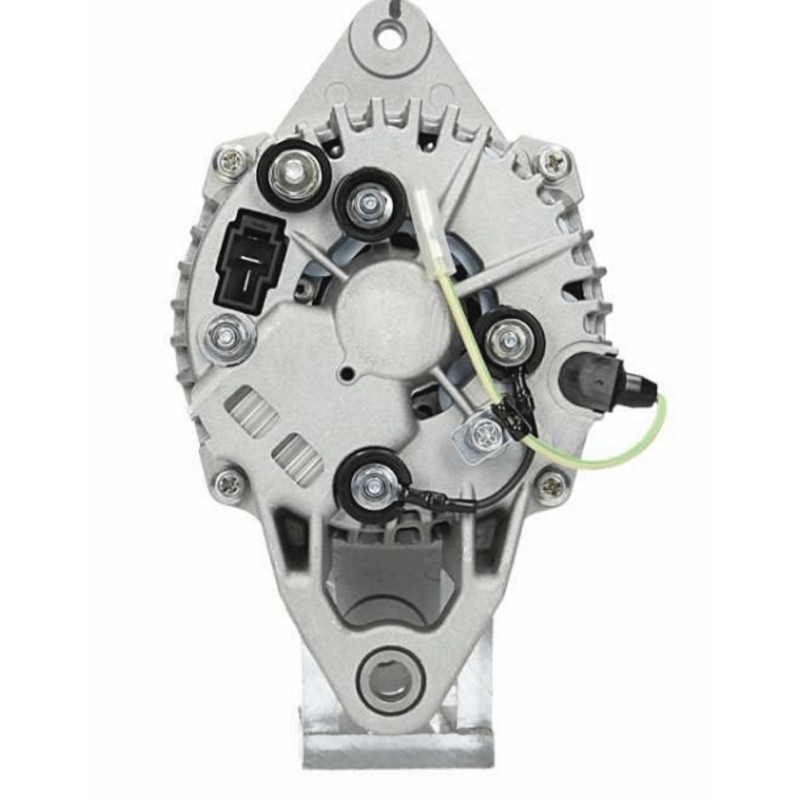

Alternator replacing HITACHI LR160-741 / YANMAR 12827177200
Alternator NEW 12 volts 60 Amp
pulley diameter 45 / isolated / B+ M6
= Reference 020741 / 12827177200 / 286893 / 985004060 / AYA103 / LR160741 / LRA03783 / 985004060
HITACHI Alternator available under the reference suivante w985004060
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
InformationPhysique | ||
|---|---|---|
| A | Dist. pulley | 46.00 |
| B | Width/holder arm | 13.00 |
| C | Mount. bracket dist. | 82.00 |
| D | Bracket hole | 10.20 |
| E | Angle pâte tendeur | 60 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 82.00 |
| I | Rainures de la pulley | 1 |
| J | Radius | 90.00 |
| J | Radius 2 | 84.00 |
| K | Position B + | M6 |
| K | Position B+ en min. | 55 |
| N | Rotation | Cr |

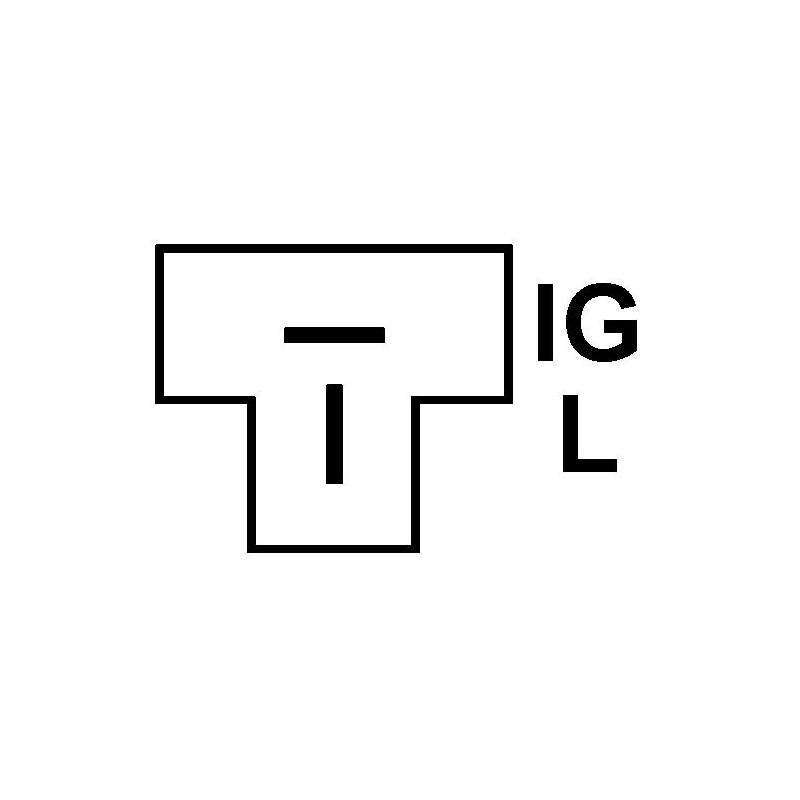

| O | Plug no. 1 | PL10 |
| Q | Tipo prise W | w/ |
| R | Total length mm | 160.00 |
= Reference :
| 020741 |
| 114672 |
| 12827177200 |
| 286893 |
| 985004060 |
| 985004060080 |
| 985004060265 |
| 985004060270 |
| AYA103 |
| LR160741 |
| LR160741+ |
| LRA03783 |
fitsengine YANMAR :
2YM15 3JH3E 3JH4E 3YM20 3YM30
