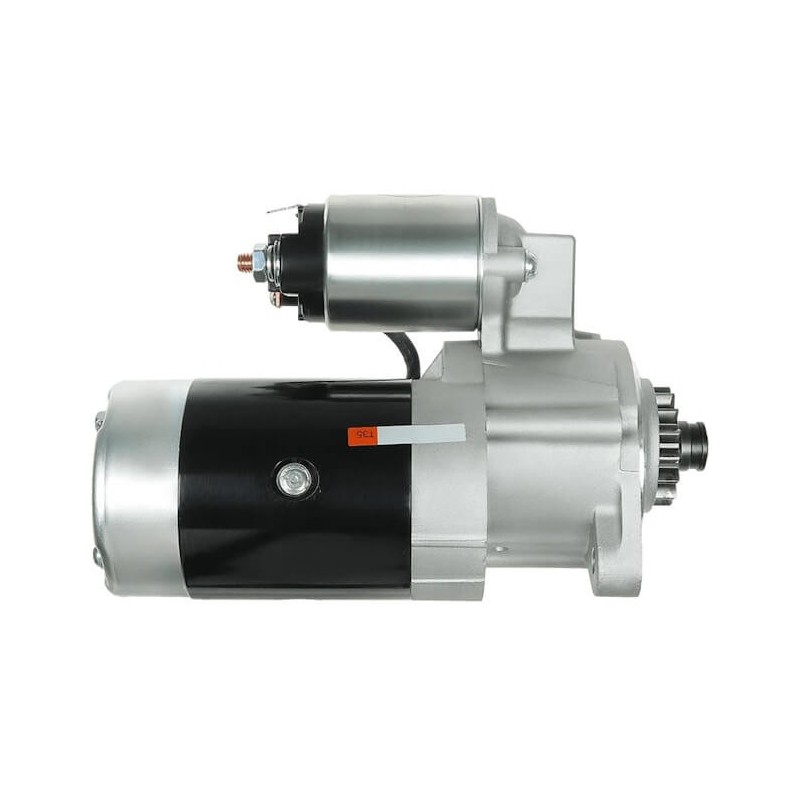

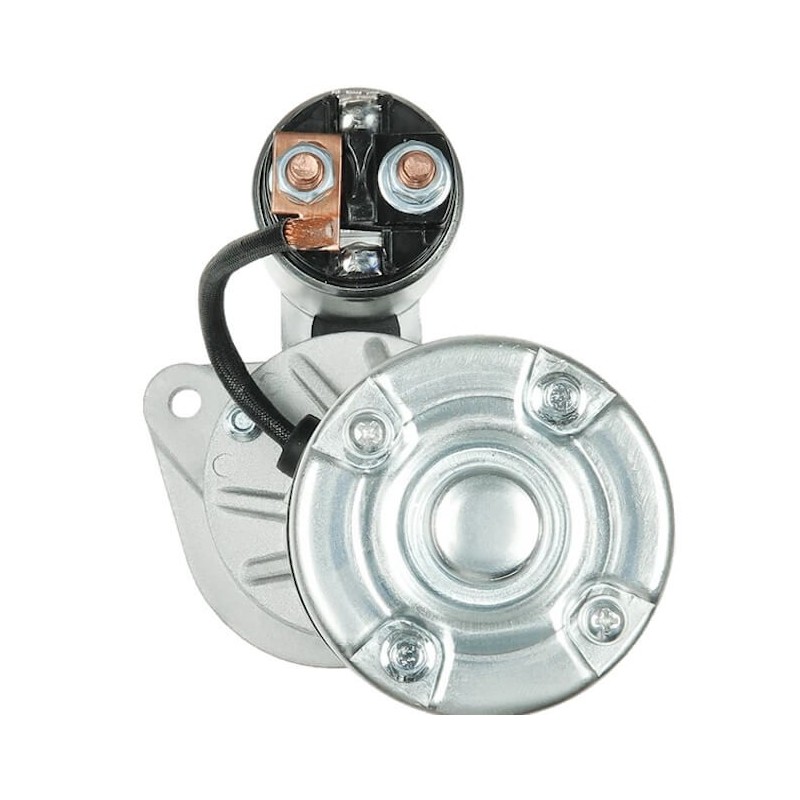

Starter replacing MITSUBISHI MM317600 / M2T50285 / M2T50281
Starter for KOMATSU, MITSUBISHI, Pel Job
Toro, Vetus
= MITSUBISHI MM317600 / M2T50285 / M2T50281 / M2T50271 / M002T50271 / M002T50281 / M002T50285
= YANMAR 015125-53001e
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
More info
Information:
Voltage 12
KW 1.6

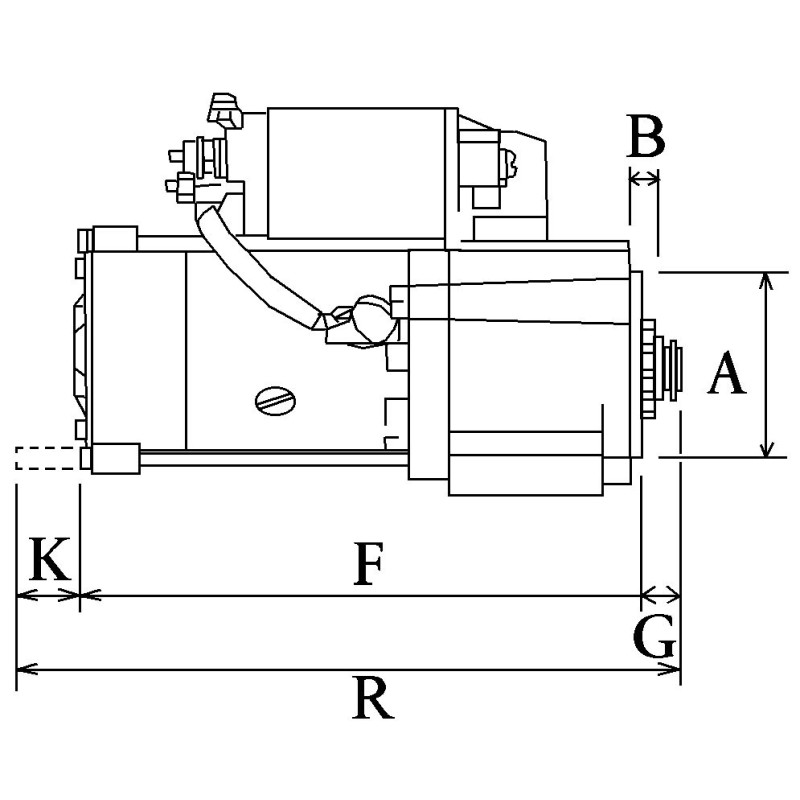

A = Mount flange 77.00
B = Drive distance 17.00
F = Distance / Back 192.50
G = Distance / Front 32.00
H = Nbr of teeth 15
B+ M8
Gear type Dd/gr

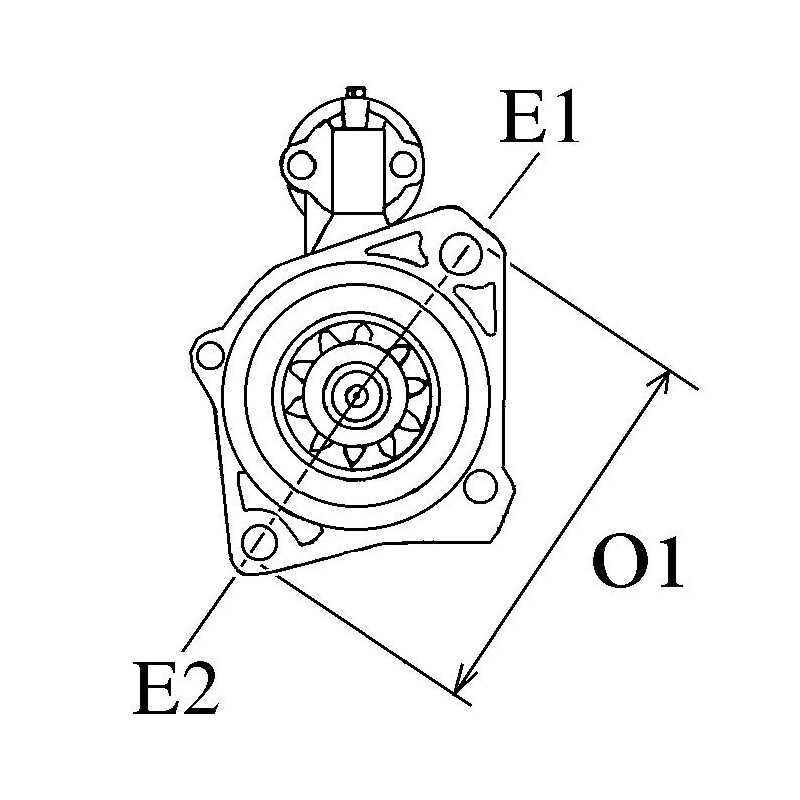

O1 = Distance 105.00
Rotation Cr
Nbr of mounting holes 2 (2)
Clutch Tipo Dry
Drive Tipo Steel
R = Total length mm 228.50
generic brand
= DELCO REMY DRS3936
= LUCAS LRS01145
= MITSUBISHI MM317600 / M2T50285 / M2T50281 / M2T50271 / M002T50271 / M002T50281 / M002T50285 / MM317602 / MM317604 / M000T60481
= SCHAEFF 5527658960 / 5527662777 / 55999991397 / 5999999577 / 5999999877
= VOLVO 7410733 / 7412897
= WEIDEMANN 5166001159 / 5166001163 / 5166317604 / 5166317612
= YANMAR 015125-53001e
fits:
| MARQUE | MODELE | TYPE | |
| MITSUBISHI INDUSTRIE | CHARIOT | - - | - - |
| PEL-JOB | EB 150 | MITSUBISHI L3E | - - |
| PEL-JOB | ED 1821 | MITSUBISHI L2E | - - |
| VETUS MARINE | M2.06 (MITSUBISHI) | 0635ccm 11.8KW | - - |
| VETUS MARINE | M2.C5 (MITSUBISHI) | 8KW | - - |
| VETUS MARINE | M2.D5 (MITSUBISHI) | 9.5KW | - - |
| VETUS MARINE | M3.09 (MITSUBISHI) | 18.3KW | - - |
| DAEWOO / DOOSAN | Solar 015Plus | 12,7 kW | L3E |
| DAEWOO / DOOSAN | Solar 018VT | 12,7 kW | L3E |
| FRIGOBLOCK | Kühlaggregat | L3E-61KG | - - |
| FUJII NOKI | MSR 1110D | L3E-31FS | - - |
| HANIX | H12A | 11,4 kW | L3E-31NS |
| HANIX | H15A | 12,5 kW | L3E-31NS |
| HANIX | H15B | 13,5 kW | L3E-31NS |
| HANIX | H15B Plus | 13,5 kW | L3E-31NS |
| HANIX | H15B-2 | 12,5 kW | L3E-31NS |
| HANIX | H15B-2 Plus | 12,5 kW | L3E-31NS |
| HANIX | H17A | 12,5 kW | L3E-31NS |
| HANIX | S&B150-2 | 12,5 kW | L3E-31NS |
| HFL | Gen Set | - - | L2E-HFL |
| KONVEKTA | Ref Unit | - - | L3E-61R |
| KYORITSU | SSV-660F | - - | L3E-31KS |
| LOKARI | Multi Tractor | - - | L3E-61LT |
| LOKARI | Traktor | - - | L3E-61LT |
| MITSUBISHI AM | GF16 | 11,8 kW | L3E |
| MITSUBISHI AM | GF17 | 12,5 kW | L3E |
| MITSUBISHI AM | VM213 | 9,6 kW | L3E |
| MITSUBISHI AM | VM215 | 11,0 kW | L3E |
| MITSUBISHI AM | VM217 | 12,1 kW | L3E |
| MITSUBISHI AM | VMS18 | 13,2 kW | L3E |
| MITSUBISHI AM | VMS18G | 13,2 kW | L3E |
| MITSUBISHI AM | VMS20 | 14,3 kW | L3E |
| MITSUBISHI AM | VMS20G | 14,3 kW | L3E |
| PEL JOB | EB10 | - - | L2E-61ES |
| PEL JOB | EB12.4 | 11,4 kW | L3E-61ES |
| PEL JOB | EB14.4 | 11,4 kW | L3E-61ES |
| PEL JOB | EB150 XR | 11,3 kW | L3E-61ES |
| PEL JOB | EB150 XT | 11,3 kW | L3E-61ES |
| PEL JOB | EB150 XTV | 11,3 kW | L3E-61ES |
| PEL JOB | EB16.4 | 12,9 kW | L3E-62ES |
| PEL JOB | EB200 XT | 11,3 kW | L3E-61ES |
| PEL JOB | EB200 XTV | 11,3 kW | L3E-61ES |
| PEL JOB | Sirius | 11,3 kW | L3E-61ES |
| RANSOMES | 4000T-23D | - - | L3E-61RG |
| SAMOFA | Industrial | - - | L3E-61SA |
| SDMO | NR 9 | - - | L2E-62SDG |
| SDMO | NS 5 | - - | L2E-61SDG |
| SOLE | Gen Set | - - | L3E-61SS |
| SOLE | Gen Set | - - | L3E-62SS |
| SOLE | Gen Set | - - | L3E-61SS |
| SOLE | Marine Application | - - | L3E-62SS |
| Terex-Schaeff | HR12 | 13 kW | L3E-61KL |
| THALER | Kabelverleger | - - | L2E-61SA-MHD |
| THORNYCRAFT | Marine Application | - - | L3E-61TM |
| TORO Movers – Fairway | Groundsmaster 220D | MITSUBISHI Diesel | 1988 – 1991 |
| TORO Movers – Fairway | Groundsmaster 223D | MITSUBISHI Diesel | 1992 – 2001 |
| TORO Movers – Fairway | Groundsmaster 224 | MITSUBISHI Diesel | 1989 – 1996 |
| TORO Movers – Fairway | Reelmaster 223-D | L3E MITSUBISHI Diesel | 1990 – 1992 |
| TORO Movers – Fairway | Reelmaster 5100-D | - - | 1992 – 1998 |
| TORO UTV | Workman 1300-D | - - | 1998 |
| TORO UTV | Workman 3300-D | MITSUBISHI 21HP Dsl | 1993 – 2001 |
| TORO UTV | Workman 3310-D | - - | 1999 – 2000 |
| TORO UTV | Workman 3320-D | - - | 1999 |
| TORO UTV | Workman 4300-D | MITSUBISHI 23HP Dsl | 1995 – 2001 |
| VOLVO | EC13XR | 11,1 kW | L3E-61ES |
| VOLVO | EC13XTV | 11,1 kW | L3E-61ES |
| VOLVO | EC14 | 11,3 kW | L3E-61ES |
| VOLVO | EC15BXR | 11,3 kW | L3E-61ES |
| VOLVO | EC15BXT | 11,3 kW | L3E-61ES |
| VOLVO | EC15BXTV | 11,3 kW | L3E-61ES |
| VOLVO | EC15XR | 11,3 kW | L3E-61ES |
| VOLVO | EC15XT | 11,3 kW | L3E-61ES |
| VOLVO | EC15XTV | 11,3 kW | L3E-61ES |
| VOLVO | EC20BXT | 11,3 kW | L3E-61ES |
| VOLVO | EC20BXTV | 11,3 kW | L3E-61ES |
| VOLVO | EC20XT | 11,3 kW | L3E-61ES |
| VOLVO | EC20XTV | 11,3 kW | L3E-61ES |
| WEIDEMANN | 911D/M | - - | L2E-61WH |
| WESTERBEKE | Gen Set | - - | L3E-61WM |
| WESTERBEKE | Marine Application | - - | L3E-62WM |
| Zeppelin | ZR 15 | 13,3 kW | L3E |
| ZEPPELIN | ZRH 12 | - - | L3E-61KL |
