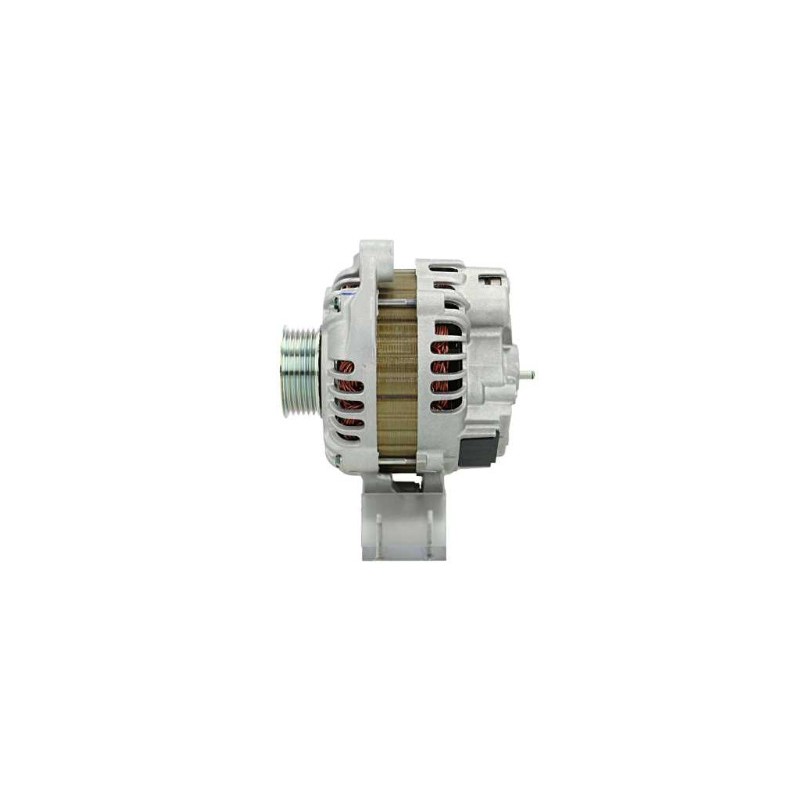

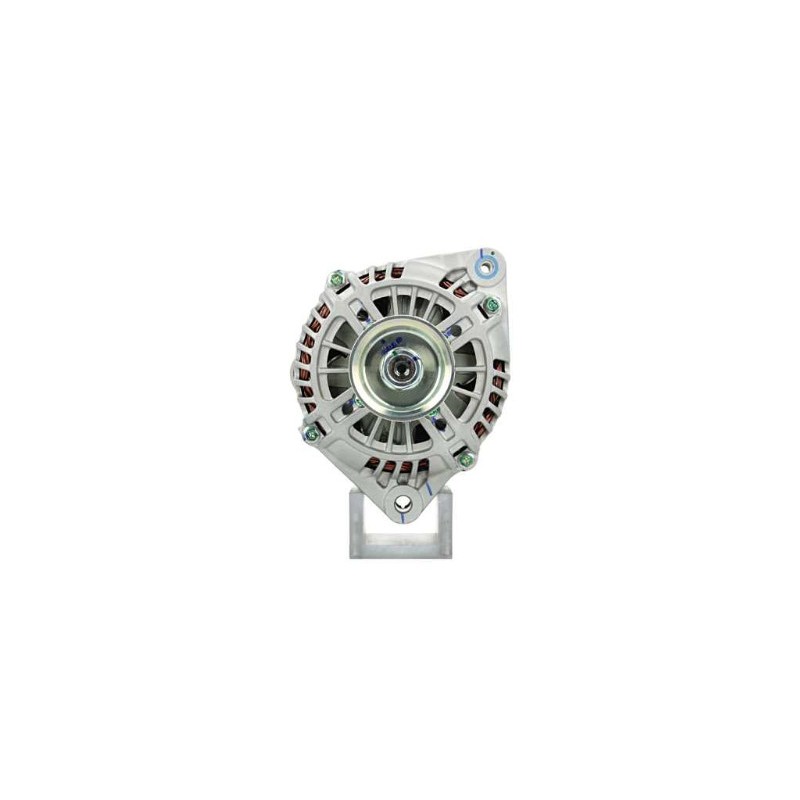

Alternator NEW replacing MITSUBISHI A004TR5794 / A004TR5794ZT / A4TR5794 / A4TR5794ZT
DRA1424 / 504254440
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Information:
Electrical Information | ||
---|---|---|
Voltage | 28 | |
Amp | 120 |
Physical Information | ||
---|---|---|
D | Bracket hole | 10.50 |
G | Belt. adj. bracket hole | M8 |
B | Width/holder arm | 58.00 |
E | Belt. adj. brackethole pos. | 7 |
H | Pulley dia. | 62.00 |
A | Pulley dist. | 90.00 |
i | Grooves/pulley | 6 |
j | Radius | 90.00 |
j | Radius 2 | 90.00 |
k | Position B + | M8 |
n | Rotation | CW |

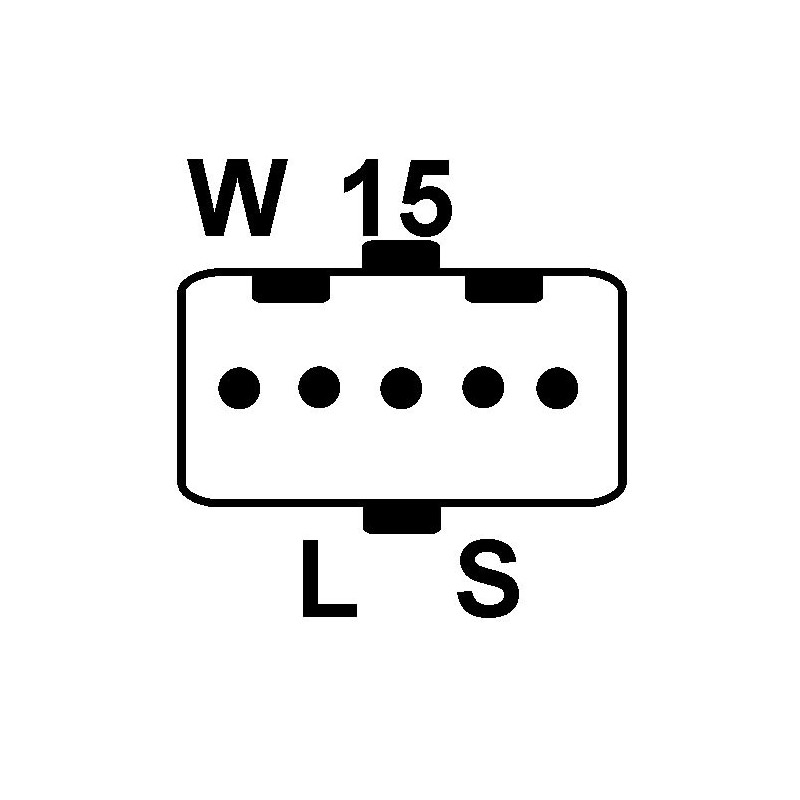

o | Plug no. 1 | PL182 |
Q | Tipo prise W | Plug |
R | Total length mm | 182.00 |
Replacing | |
---|---|
504254440 | IVECO |
A004TR5794 | MITSUBISHI |
A004TR5794ZT | MITSUBISHI |
A4TR5794 | MITSUBISHI |
A4TR5794ZT | MITSUBISHI |
MONTAGE SUR :
TruckS IVECO EuroTech / Eurostar / EuroTrakker / Stralis
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
