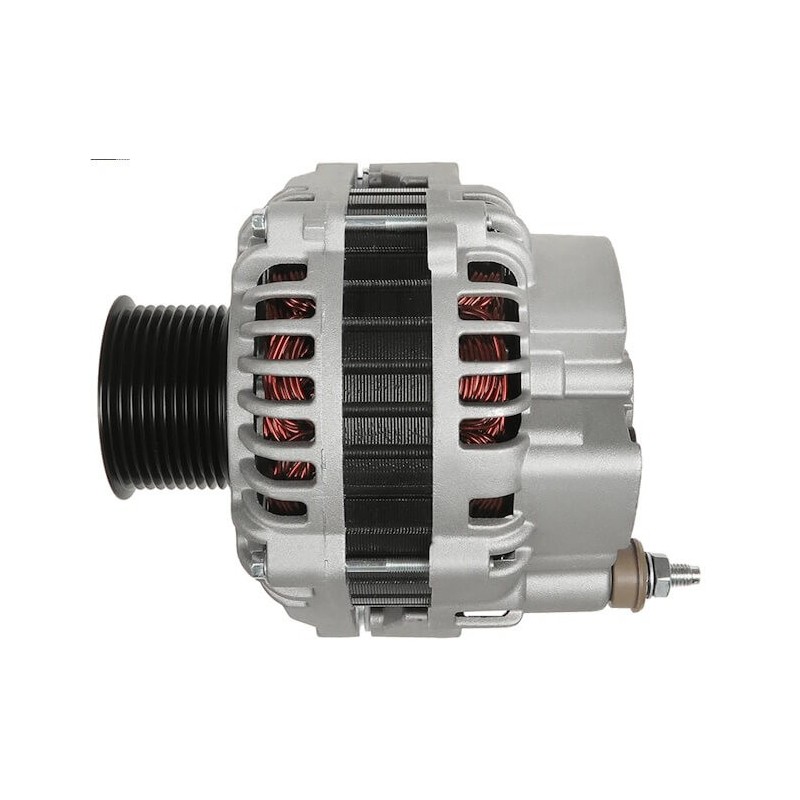

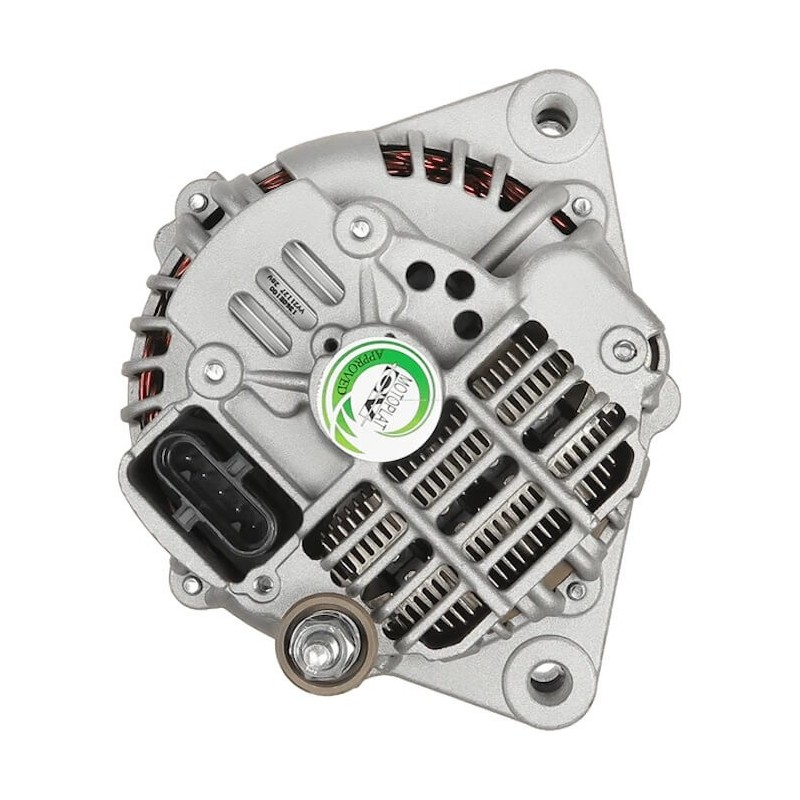

Alternator replacing 01182764 / 1182764 / 20707050 / A004TA8191 / A4TA8191
| 01182764 | KHD | |
| 116014 | Cargo | |
| 1182763 | KHD | |
| 1183126 | KHD | |
| 15201109 | AES | |
| 19092013 | Delco | |
| 20707050 | Volvo | |
| 20898062 | Volvo | |
| 21201016 | AES | |
| 486654 | Elstock | |
| 5010589137 | Renault | |
| 566501100 | PSH | |
| 7421289219 | Renault | |
| 85003257 | Volvo |
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 28 | |
| Amp | 100 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.45 |
| G | Belt. adj. bracket hole | 10.45 |
| B | Width/holder arm | 57.00 |
| E | Belt. adj. brackethole pos. | 50 |
| H | Pulley dia. | 64.00 |
| A | Pulley dist. | 82.70 |
| i | Grooves/pulley | 10 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

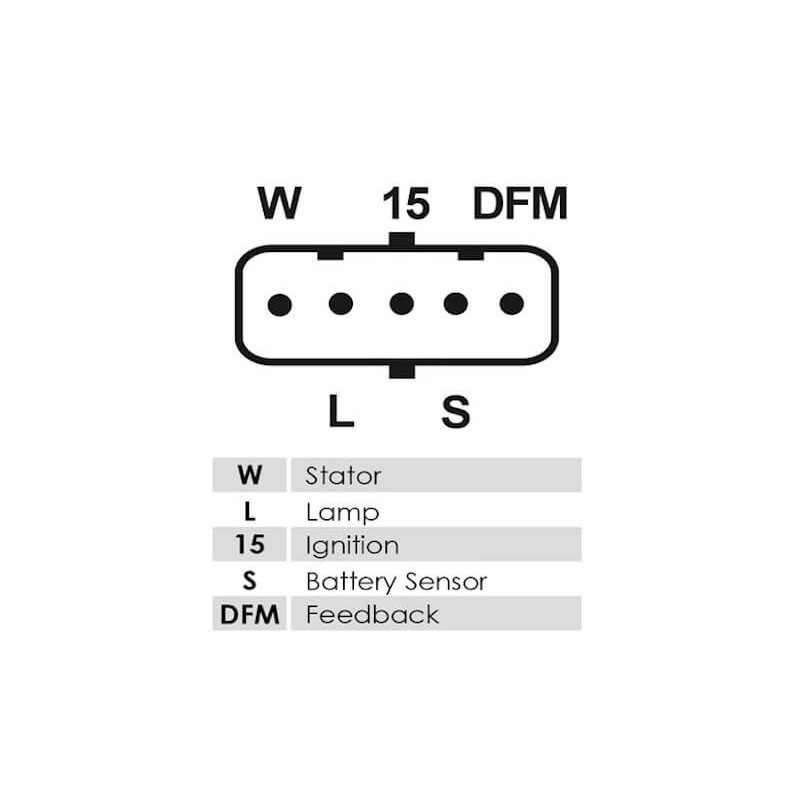

| o | Plug no. 1 | PL82 |
| Q | Tipo prise W | Plug |
| R | Total length mm | 195.00 |
Replacing | |
|---|---|
| 01182764 | KHD |
| 1182764 | KHD |
| 20707050 | VOLVO |
| A004TA8191 | MITSUBISHI |
| a4ta8191 | MITSUBISHI |
generic brand
fits:
| Brand | Model | Typ | Year |
| KHD | Engine 4.8 | [TCD2013] | 01/01/06 |
| KHD | Engine 7.2 | [TCD2013] | 01/01/06 |
| KHD | TCD2013 L4 2V | ||
| KHD | TCD2013 L4 4V | ||
| KHD | TCD2013 L6 2V | ||
| KHD | TCD2013 L6 4V | ||
| VOLVO | B7R 7.2 | 01.2001-12.2011 |
