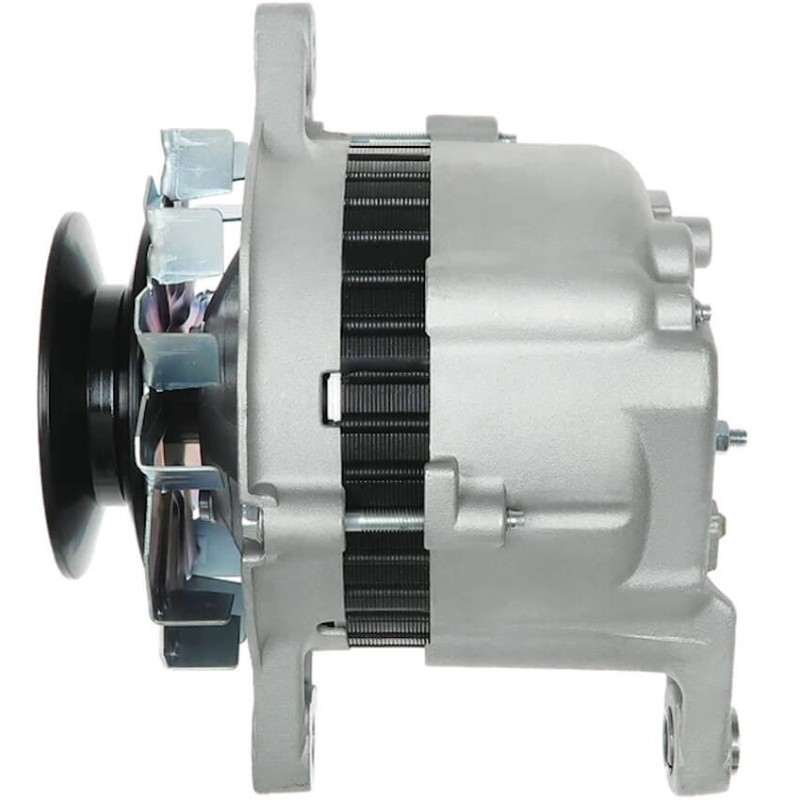

Alternator replacing HITACHI LR220-24 / LR220-23 for forklifts and machines

Information:

Voltage 28

Amp 20

Plug type W

D = Bracket hole 10.40

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.50

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 81.30

H = Pulley dia. 85.00

A = Pulley dist. 44.50

Grooves/pulley 1

J = Radius 78.00

J = Radius 78.00

Position B + M5

Rotation Cr

Plug no. 1 PL09

Fan Ef

Pulley Pulley

R = Total length mm 165.00

Generic brand

= DELCO REMY DRA3386

= HITACHI LR220-24 / LR220-23

= LUCAS LRA02437

= MITSUBISHI A1T70783 / A001T70783

= ISUZU 5812003300 / 5812003350

                               NO CORE EXCHANGE NEEDED

                                                     TWO YEARS WARRANTY
