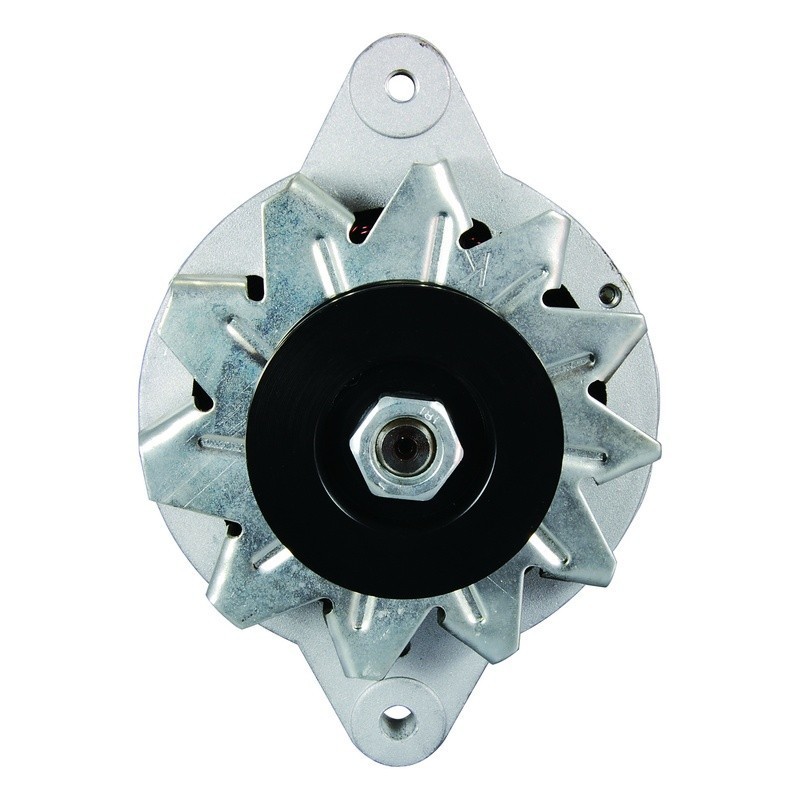

Alternator NEW for MAZDA / ISEKI
= ISUZU 5001810100 / 5812003281 / 5812003380
5812003381 / 5812003411 / 8941717780 / 8944237560
= YANMAR 121400-77201 / 124080-77201 / 128171-77200 / 128270-77200 / 128270-77201
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Information:
Amp 35 - Voltage 14

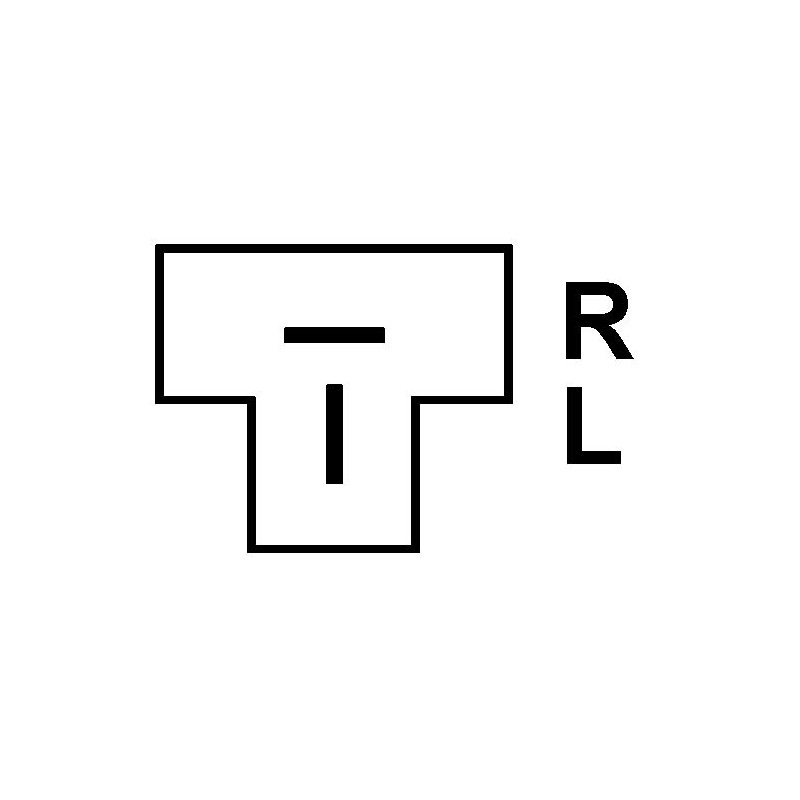

Plug type W
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | M8x1,25 |
| B | Width/holder arm | 13.50 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 81.65 |
| H | Pulley dia. | 70.35 |
| A | Pulley dist. | 41.85 |
| i | Grooves/pulley | 1 |
| j | Radius | 76.40 |
| j | Radius 2 | 76.60 |
| k | Position B + | M5 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL09 |
| R | Total length mm | 168.00 |
Replacing | |
|---|---|
| 121400-77201 | YANMAR |
| 124080-77201 | YANMAR |
| 128171-77200 | YANMAR |
| 128270-77200 | YANMAR |
| 128270-77201 | YANMAR |
| 23100-91109 | NISSAN |
| 3282883M91 | MASSEY FERGUSON |
| 34468-18200 | NISSAN |
| 34468-28200 | NISSAN |
| 23100-91109 | NISSAN |
| 4828-18-300 | MAZDA |
| 5001810100 | ISUZU |
| 5812003281 | ISUZU |
| 5812003380 | ISUZU |
| 5812003381 | ISUZU |
| 5812003411 | ISUZU |
| 6581-200-338 | ISEKI |
| 6581-200-349 | ISEKI |
| 8941717780 | ISUZU |
| 8944237560 | ISUZU |
| A001T03476 | MITSUBISHI |
| A001T23377 | MITSUBISHI |
| A001T25077 | MITSUBISHI |
| A001T25083 | MITSUBISHI |
| A001T25087 | MITSUBISHI |
| A001T25097 | MITSUBISHI |
| A001T31374 | MITSUBISHI |
| A001T31377 | MITSUBISHI |
| A001T31685 | MITSUBISHI |
| A001T31699 | MITSUBISHI |
| A001T33277 | MITSUBISHI |
| a1t03476 | MITSUBISHI |
| a1t23377 | MITSUBISHI |
| a1t25077 | MITSUBISHI |
| a1t25083 | MITSUBISHI |
| a1t25087 | MITSUBISHI |
| a1t25097 | MITSUBISHI |
| a1t31374 | MITSUBISHI |
| a1t31377 | MITSUBISHI |
| a1t31685 | MITSUBISHI |
| a1t31699 | MITSUBISHI |
| a1t33277 | MITSUBISHI |
| D401-18-300 | MAZDA |
| D401-18-300A | MAZDA |
| D501-18-300 | MAZDA |
| F851-18-300 | MAZDA |
| GE01-18-300 | MAZDA |
| GE01-18-300A | MAZDA |
| H612-18-300 | MAZDA |
| 4828-18-300 | MAZDA |
| ja116ir | HC-PARTS |
| lr120-15c | HITACHI |
| lr135-105 | HITACHI |
| lr135-115 | HITACHI |
| lr135-116 | HITACHI |
| LR135-118 | HITACHI |
| lr135-124 | HITACHI |
| lr135-126 | HITACHI |
| lr135-127 | HITACHI |
| lr135-128 | HITACHI |
| lr135-58 | HITACHI |
| lr135-58b | HITACHI |
| lr135-74 | HITACHI |
| lr135-74b | HITACHI |
| lr135-86 | HITACHI |
| lr135-86b | HITACHI |
| lr135-86c | HITACHI |
| lr135-86f | HITACHI |
| lr135-91 | HITACHI |
| lr135-95 | HITACHI |
| lr135-95b | HITACHI |
| 20130177 | PRESTOLITE |
Generic Brand
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
