Alternator replacing HITACHI LR160-446E / LR160-446C / LR160- 446B

Information:

Voltage 14

Amp 60

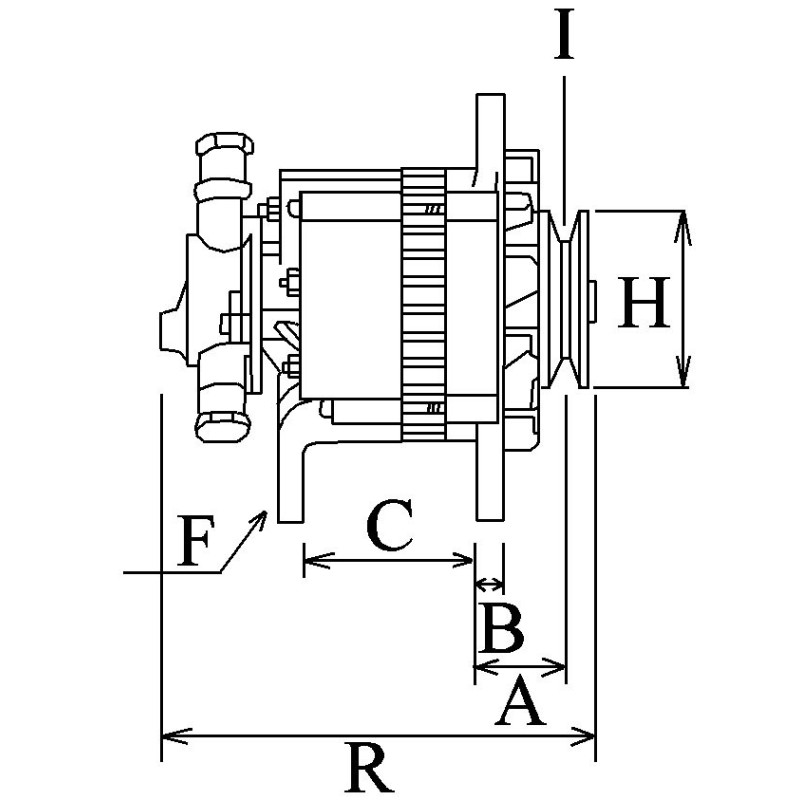

D = Bracket hole 10.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.00

E = Belt. adj. brackethole pos. 5

C = Mount. bracket dist 80.50

H = Pulley dia. 82.75

A = Pulley dist. 48.00

Grooves/pulley 1

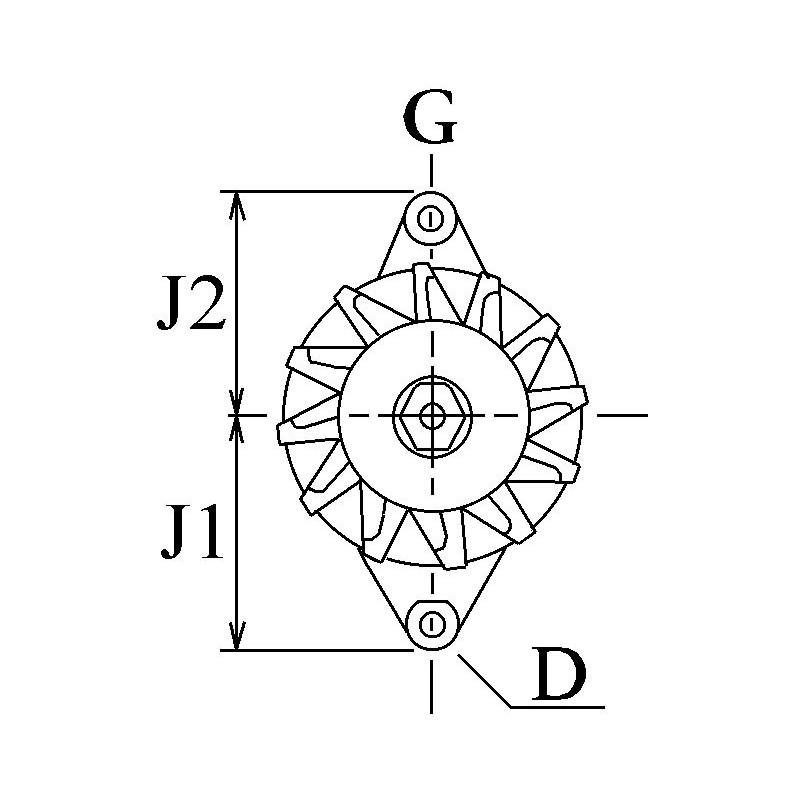

J = Radius 88.90

J = Radius 85.75

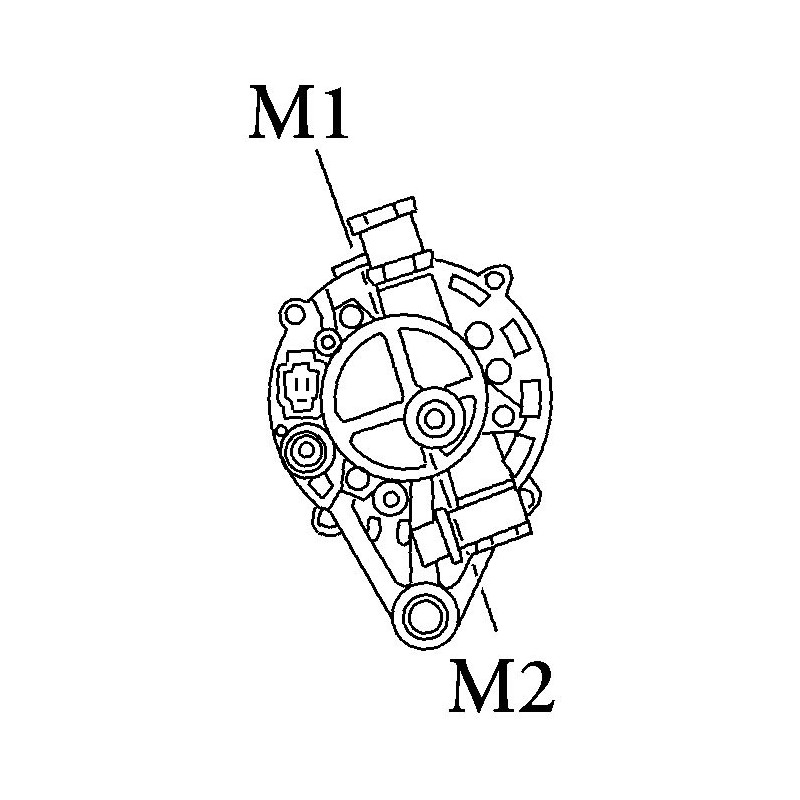

Position B + M5-9.40

Rotation Cr

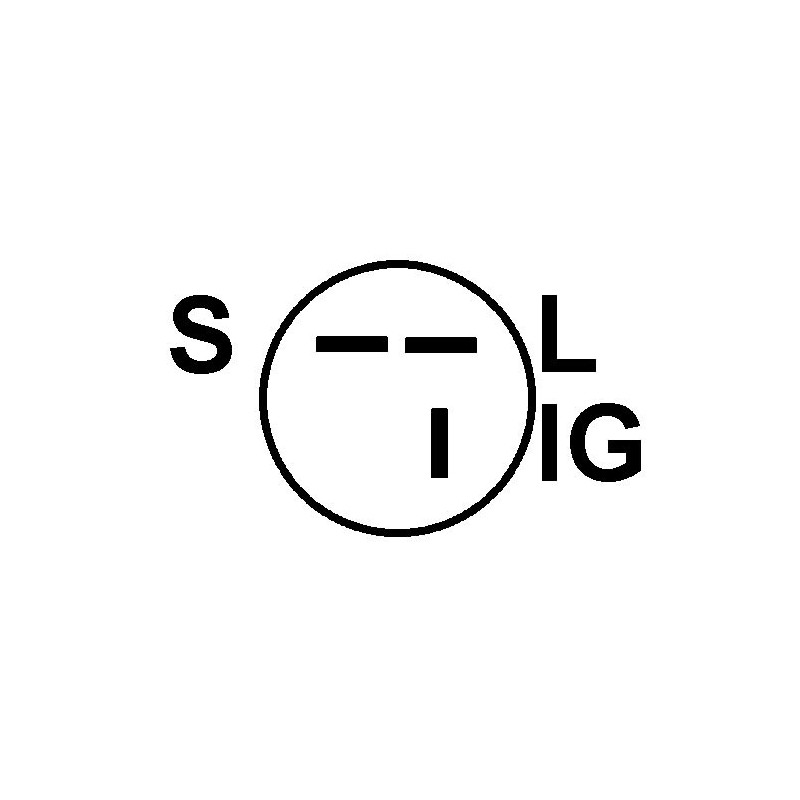

Plug no. 1 PL32

Fan Ef

Pulley Pulley

R = Total length mm 242.50

= ATL L37830 / L45000

= BOSCH 0986037831090 / 0986045001 / 0986037831 / 0986045001090

= DELCO REMY DRA34383 / DRA348

= HITACHI LR160-446E / LR160-446C / LR160-446B / LR160-446

= ISUZU 8970716110 / 8970746110 / 8971347620 / 8971478510 / 8971876550

= HELLA 732719-001

= OPEL 97074611 / 97134762 / 97147851 / 97187655

= VALEO 437130

                                       NO CORE EXCHANGE NEEDED

                                                    TWO YEARS WARRANTY
