w111479

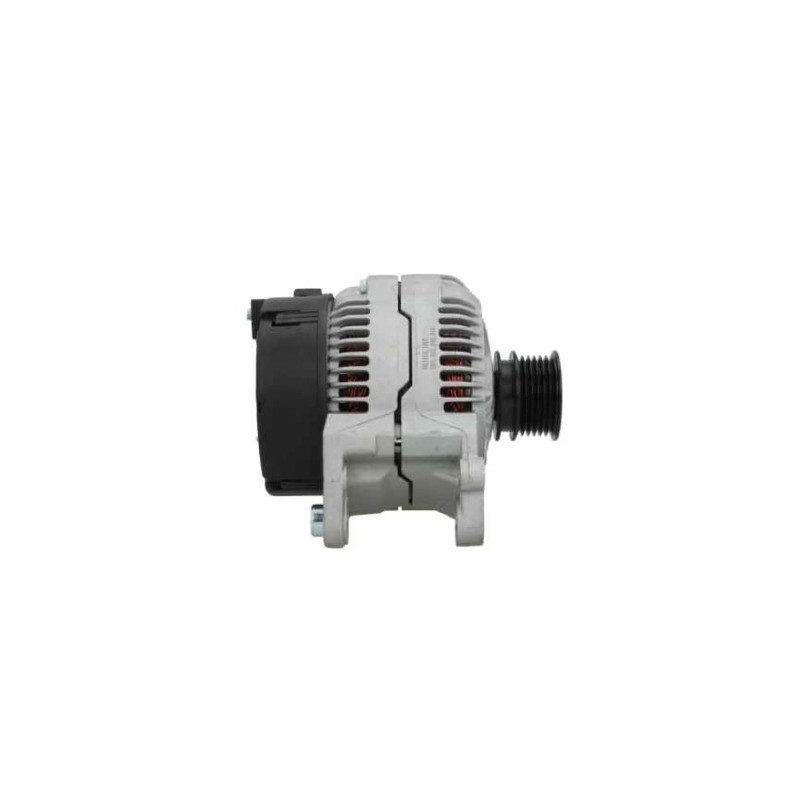

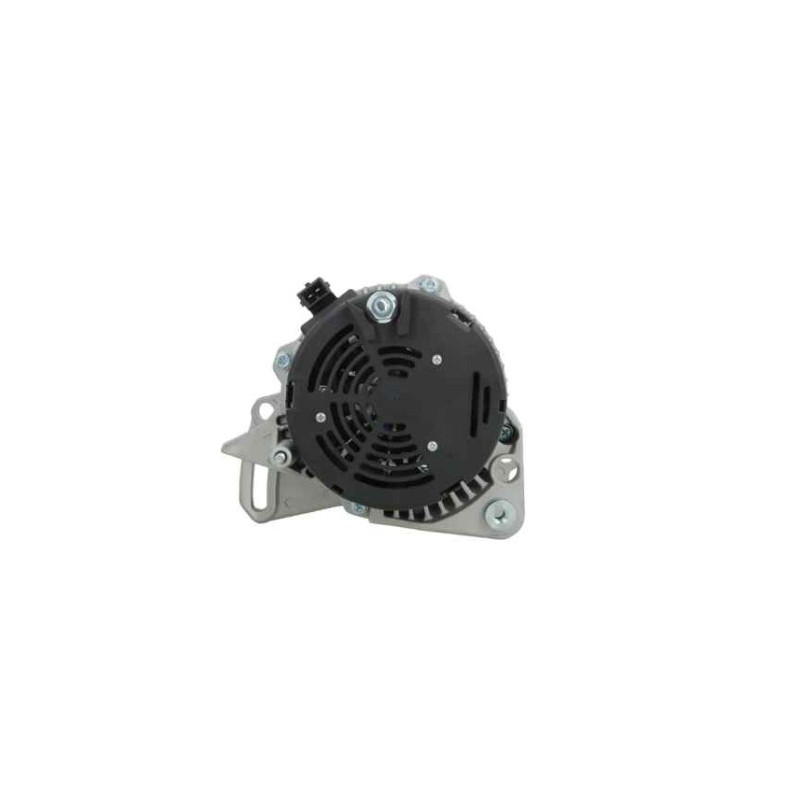

Alternator NEW replacing :

BOSCH 0120485036 / 0123320002 / 0123320006 / 0123340002  / 0986038380

VW 028903025P / 028903025PA / 028903025PX / 030903023C / 030903023F / 030903023FX

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY

Read more
€109.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Electrical Information
Voltage 14
Amp 90

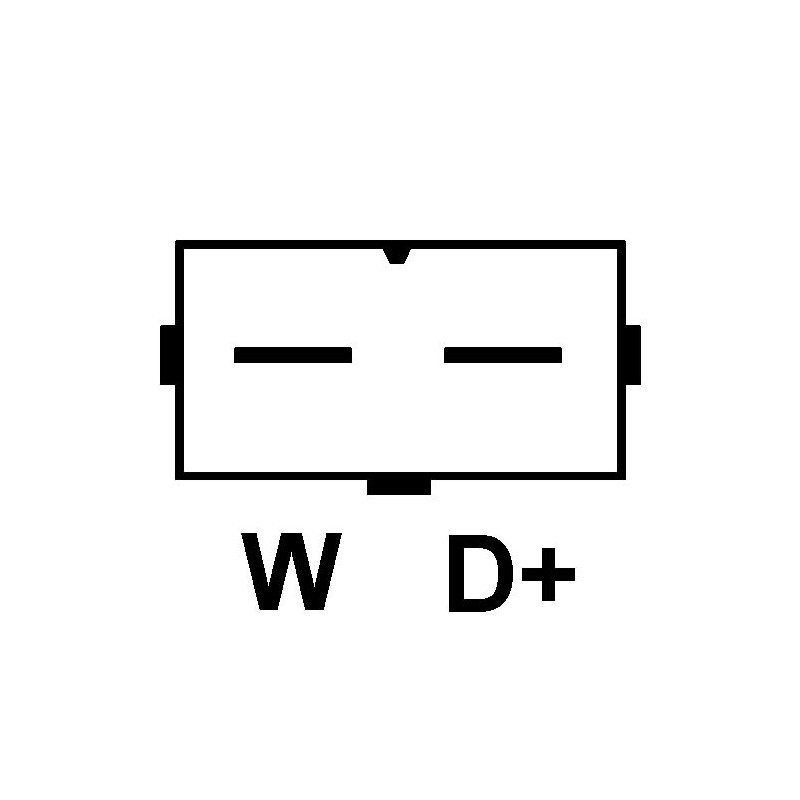

Plug type W
Physical Information

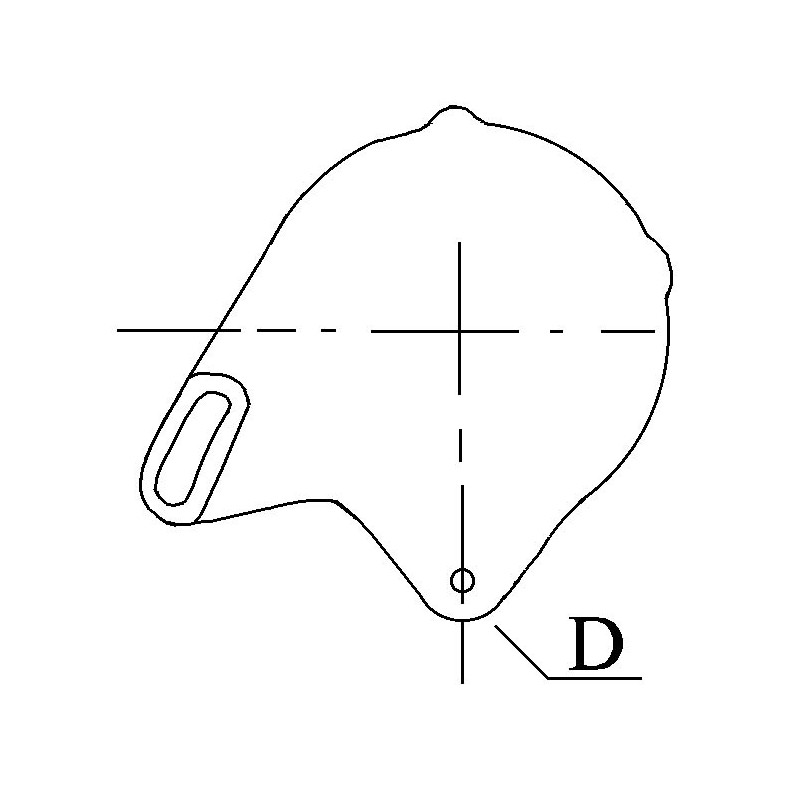

D Bracket hole 8.20
G Belt. adj. bracket hole 9.40

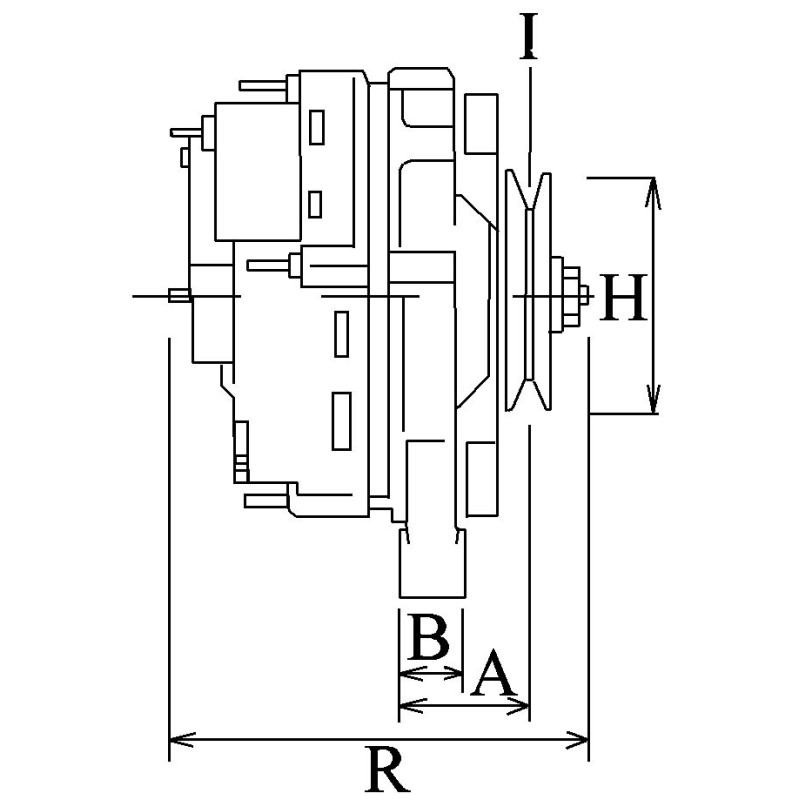

B Width/holder arm 14.00

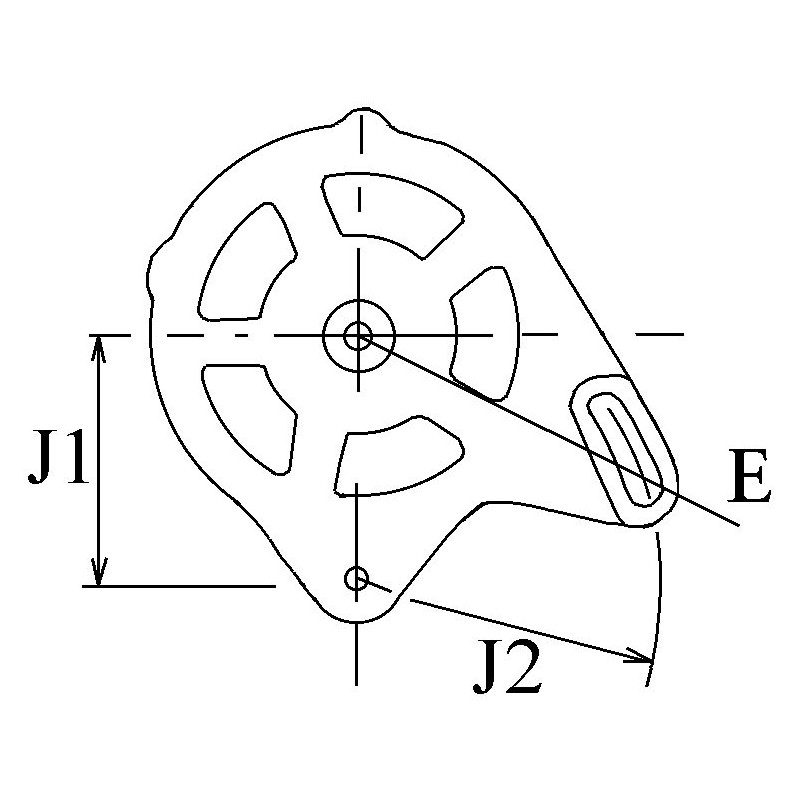

E Belt. adj. brackethole pos. 10-15
C Mount. bracket dist 59.00
H Pulley dia. 50.00
A Pulley dist. 39.00
i Grooves/pulley 6
j Radius 90.00
j Radius 2 110.00

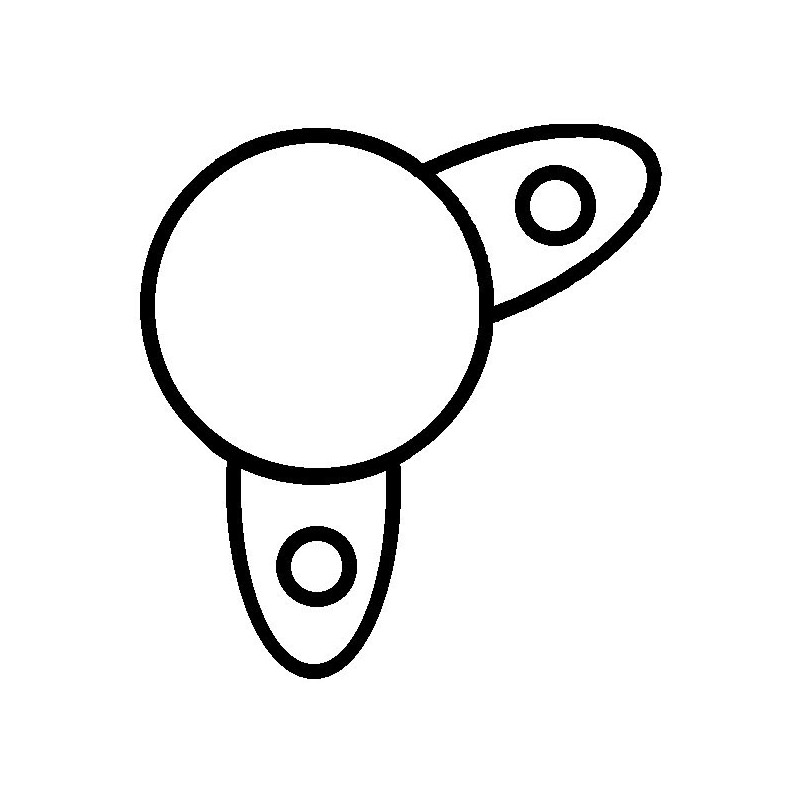

k Position B + M8
n Rotation CW
o Plug no. 1 PL23
Q Tipo prise W Plug
R Total length mm 185.00

generic brand

replacing :

Reference Brand
A0006 AS-PL
AEA1246 AUTOELECTRO
0120485036 BOSCH
0123320002 BOSCH
0123320006 BOSCH
0123340002 BOSCH
0986038380 BOSCH
111479 CARGO
CAL10121 CASCO
4395 CEVAM
1516623R DAF
DA4378 DELCO
DRA3268 DELCO
RAA14379 DELCO
A-6229 DIXIE
56291 EAI
28-1920 ELSTOCK
210121 ERA
AG0012 GHIBAUDI
CA740IR HC PARTS
8EL012427-741 HELLA
8EL730038-001 HELLA
32038380 HERTH+BUSS
6.3193.9 IKA
11.201.990 ISKRA / LETRIKA
AAK5198 ISKRA / LETRIKA
IA0990 ISKRA / LETRIKA
ALB0740 KRAUF
ALV0740 KRAUF
LRB00146 LUCAS
LRB146 LUCAS
943356529010 MAGNETI MARELLI
944390383800 MAGNETI MARELLI
MAR953 MAGNETI MARELLI
MRA38380 MAGNETI MARELLI
9517482 MAGNETON
MG252 MAHLE
89212448 POWERMAX
35214195 PRESTOLITE
305.501.090 PSH
2541416 VALEO
2541416F VALEO
436443 VALEO
439002 VALEO
A13VI123 VALEO
A13VI40 VALEO
028903025P VW
028903025PA VW
028903025PX VW
030903023C VW
030903023F VW
030903023FX VW
13605N WAI / TRANSPO
13605R WAI / TRANSPO
90-15-6252 WILSON
ALT10178 WOODAUTO
MAHMG252 WOODAUTO
CAL10121AS CASCO
20101121BN REAL

fits:

Brand Model Tipo Year
VW Caddy 1.4 [AEX] 11.1995-01.2004
VW Caddy 1.6 [1F] 11.1995-09.2000
VW Corrado 2.0 i [2E] 04.1993-12.1995
VW Corrado 2.0 i [ADY] 10.1994-07.1995
VW Golf III 1.4 [ABD] 10.1991-08.1997
VW Golf III 1.4 [ABD] 11.1991-08.1997
VW Golf III 1.4 [ABD] 07.1993-04.1999
VW Golf III 1.4 [AEX] 10.1991-08.1997
VW Golf III 1.4 [AEX] 07.1993-04.1999
VW Golf III 1.4 [APQ] 07.1993-04.1999
VW Golf III 1.6 [ABU] 09.1992-08.1997
VW Golf III 1.6 [AEA] 09.1992-08.1997
VW Golf III 1.6 [AEK] 07.1994-04.1999
VW Golf III 1.6 [AEK] 10.1994-05.1998
VW Golf III 1.6 [AEK] 07.1995-08.1997
VW Golf III 1.6 [AFT] 07.1994-04.1999
VW Golf III 1.6 [AFT] 10.1994-05.1998
VW Golf III 1.6 [AFT] 07.1995-08.1997
VW Golf III 1.6 [AKS] 07.1994-04.1999
VW Golf III 1.6 [AKS] 07.1995-08.1997
VW Golf III 1.8 [AAM] 11.1991-08.1997
VW Golf III 1.8 [AAM] 07.1993-05.1998
VW Golf III 1.8 [AAM] 07.1993-04.1999
VW Golf III 1.8 [ABS] 11.1991-08.1997
VW Golf III 1.8 [ABS] 07.1993-05.1998
VW Golf III 1.8 [ABS] 07.1993-04.1999
VW Golf III 1.8 [ACC] 33970
VW Golf III 1.8 [ACC] 34700
VW Golf III 1.8 [ADZ] 11.1991-08.1997
VW Golf III 1.8 [ADZ] 07.1993-04.1999
VW Golf III 1.8 [ADZ] 07.1993-05.1998
VW Golf III 1.8 CL [ACC] 33970
VW Golf III 1.8 CL [ACC] 34700
VW Golf III 1.8 CL [ACC] 35065
VW Golf III 1.8 CL [ACC] 35431
VW Golf III 1.8 Syncro [ABS] 01.1993-08.1997
VW Golf III 1.8 Syncro [ADZ] 01.1993-08.1997
VW Golf III 1.8 Syncro [ADZ] 10.1994-04.1999
VW Golf III 1.9 [AAZ] 01.1993-01.1995
VW Golf III 1.9 D [1Y] 11.1991-08.1997
VW Golf III 1.9 D [1Y] 07.1993-04.1999
VW Golf III 1.9 TD [AAZ] 11.1991-08.1997
VW Golf III 1.9 TD [AAZ] 07.1993-04.1999
VW Golf III 1.9 TDi [AAZ] 01.1996-01.1996
VW Golf III 2.0 [2E] 07.1993-04.1999
VW Golf III 2.0 [2E] 07.1993-05.1998
VW Golf III 2.0 [ABA] 35796
VW Golf III 2.0 [ADY] 07.1993-04.1999
VW Golf III 2.0 [ADY] 07.1993-05.1998
VW Golf III 2.0 [AGG] 07.1993-05.1998
VW Golf III 2.0 [AGG] 07.1993-04.1999
VW Golf III 2.0 [AKR] 07.1993-04.1999
VW Golf III 2.0 [AKR] 07.1993-05.1998
VW Golf III 2.0 Celebration Edit [ABA] 34700
VW Golf III 2.0 Celebration Edit [ABA] 01.1995-01.1995
VW Golf III 2.0 City [ABA] 01.1995-01.1995
VW Golf III 2.0 City [ABA] 34700
VW Golf III 2.0 GL [ABA] 01.1993-01.1993
VW Golf III 2.0 GL [ABA] 01.1994-01.1995
VW Golf III 2.0 GL [ABA] 01.1995-01.1997
VW Golf III 2.0 GL [ABA] 01.1995-01.1995
VW Golf III 2.0 GL [ABA] 34700
VW Golf III 2.0 GTi [2E] 11.1991-08.1997
VW Golf III 2.0 GTi [ABA] 11.1991-08.1997
VW Golf III 2.0 GTi [ABA] 01.1993-01.1993
VW Golf III 2.0 GTi [ABA] 01.1994-01.1994
VW Golf III 2.0 GTi [ABA] 34335
VW Golf III 2.0 GTi [ABA] 01.1995-01.1995
VW Golf III 2.0 GTi [ABA] 01.1996-01.1997
VW Golf III 2.0 GTi [ABA] 01.1998-01.1998
VW Golf III 2.0 GTi [ABA] 35796
VW Golf III 2.0 GTi [ADY] 11.1991-08.1997
VW Golf III 2.0 GTi [AGG] 11.1991-08.1997
VW Golf III 2.0 GTi [AKR] 11.1991-08.1997
VW Golf III 2.0 JAZZ [ABA] 01.1997-01.1997
VW Golf III 2.0 K2 [ABA] 01.1997-01.1997
VW Golf III 2.0 K2 [ABA] 35796
VW Golf III 2.0 Sport [ABA] 34700
VW Golf III 2.0 Sport [ABA] 01.1995-01.1995
VW Golf III 2.0 Syncro [AGG] 08.1995-04.1999
VW Golf III 2.0 Trek [ABA] 01.1997-01.1997
VW Golf IV 1.6 [AFT] 06.1998-06.2002
VW Golf IV 1.6 [AKS] 06.1998-06.2002
VW Golf IV 1.8 [AAM] 06.1998-10.2000
VW Golf IV 1.8 [ADZ] 06.1998-06.2002
VW Golf IV 1.8 [ANN] 06.1998-06.2002
VW Golf IV 1.8 [ANP] 06.1998-06.2002
VW Golf IV 2.0 [AGG] 06.1998-06.2002
VW Golf IV 2.0 [AKR] 06.1998-06.2002
VW Jetta 1.8 [ACC] 33970
VW Jetta 1.8 [ACC] 34335
VW Jetta 1.8 CL [ACC] 34335
VW Jetta 1.8 GL [ACC] 33970
VW Jetta 2.0 [ABA] 35796
VW Jetta 2.0 Celebration Edit [ABA] 34700
VW Jetta 2.0 Celebration Edit [ABA] 01.1995-01.1995
VW Jetta 2.0 City [ABA] 34700
VW Jetta 2.0 GL [ABA] 33970
VW Jetta 2.0 GL [ABA] 01.1994-01.1995
VW Jetta 2.0 GL [ABA] 01.1994-01.1994
VW Jetta 2.0 GL [ABA] 34335
VW Jetta 2.0 GL [ABA] 34700
VW Jetta 2.0 GL [ABA] 35065
VW Jetta 2.0 GL [ABA] 01.1996-01.1996
VW Jetta 2.0 GL [ABA] 35431
VW Jetta 2.0 GL [ABA] 01.1998-01.1998
VW Jetta 2.0 GLS [ABA] 33970
VW Jetta 2.0 GLS [ABA] 01.1994-01.1995
VW Jetta 2.0 GLS [ABA] 01.1994-01.1994
VW Jetta 2.0 GLS [ABA] 34700
VW Jetta 2.0 GLS [ABA] 01.1996-01.1997
VW Jetta 2.0 GLS [ABA] 01.1998-01.1998
VW Jetta 2.0 GT [ABA] 01.1997-01.1997
VW Jetta 2.0 GT [ABA] 01.1998-01.1998
VW Jetta 2.0 JAZZ [ABA] 01.1997-01.1997
VW Jetta 2.0 K2 [ABA] 01.1998-01.1998
VW Jetta 2.0 Trek [ABA] 01.1996-01.1996
VW Jetta 2.0 Trek II [ABA] 01.1997-01.1997
VW Jetta 2.0 Wolfsburg Edition [ABA] 01.1996-01.1996
VW Passat 1.6 [AEK] 07.1994-12.1995
VW Passat 1.6 [AEK] 10.1994-08.1996
VW Passat 1.6 [AFT] 07.1994-12.1995
VW Passat 1.6 [AFT] 10.1994-08.1996
VW Passat 1.8 [AAM] 08.1990-08.1996
VW Passat 1.8 [AAM] 08.1990-05.1997
VW Passat 1.8 [ABS] 02.1988-08.1996
VW Passat 1.8 [ABS] 02.1988-05.1997
VW Passat 1.8 [ADZ] 02.1988-08.1996
VW Passat 1.8 [ADZ] 02.1988-05.1997
VW Passat 1.8 G60 Syncro [PG] 08.1988-05.1997
VW Passat 1.8 G60 Syncro [PG] 08.1988-08.1996
VW Passat 1.8 Super [PG] 33604
VW Passat 1.8 Super [PG] 33970
VW Passat 1.8 Super [PG] 34335
VW Passat 1.8 Super Syncro [PG] 33604
VW Passat 1.9 [AAZ] 01.1992-01.1994
VW Passat 1.9 D [1Y] 05.1989-10.1993
VW Passat 1.9 TD [AAZ] 03.1991-08.1996
VW Passat 1.9 TD [AAZ] 03.1991-05.1997
VW Passat 1.9 TDi [1Z] 01.1996-01.1996
VW Passat 1.9 TDi [AHU] 01.1997-01.1997
VW Passat 2.0 [2E] 02.1990-05.1997
VW Passat 2.0 [2E] 02.1990-08.1996
VW Passat 2.0 [ADY] 02.1990-05.1997
VW Passat 2.0 [ADY] 02.1990-08.1996
VW Passat 2.0 [AGG] 02.1990-08.1996
VW Passat 2.0 [AGG] 02.1990-05.1997
VW Passat 2.0 Syncro [2E] 10.1990-05.1997
VW Passat 2.0 Syncro [2E] 10.1990-08.1996
VW Passat 2.0 Syncro [ADY] 10.1990-08.1996
VW Passat 2.0 Syncro [ADY] 10.1990-05.1997
VW Passat 2.0 Syncro [AGG] 10.1990-05.1997
VW Passat 2.0 Syncro [AGG] 10.1990-08.1996
VW Polo 1.0 [AER] 09.1996-10.1999
VW Polo 1.05 [AEV] 10.1994-09.1996
VW Polo 1.3 [ADX] 10.1994-07.1995
VW Polo 1.4 [AEX] 07.1995-10.1999
VW Polo 1.4 [AEX] 05.1996-12.1997
VW Polo 1.4 [AEX] 05.1997-09.2001
VW Polo 1.4 [AEX] 05.1998-12.1999
VW Polo 1.4 [AKV] 05.1997-09.2001
VW Polo 1.4 [AKV] 12.1997-08.1999
VW Polo 1.6 [1F] 11.1995-09.1997
VW Polo 1.6 [AFT] 12.1995-08.1999
VW Polo 1.6 [AFT] 05.1997-09.2001
VW Polo 2.0 [ADC] 08.1999-09.2001
VW Sharan 2.0 [ADY] 34943
VW Trans r 1.9 D [1X] 07.1990-12.1995
VW Trans r 1.9 D [1X] 09.1990-12.1995
VW Trans r 1.9 TD [ABL] 10.1992-04.2003
VW Trans r 2.0 [AAC] 07.1990-04.2003
VW Trans r 2.0 [AAC] 07.1990-03.2004
VW Trans r 2.0 [AAC] 09.1990-04.2003
VW Vento 1.4 [ABD] 11.1991-09.1998
VW Vento 1.4 [AEX] 11.1991-09.1998
VW Vento 1.6 [ABU] 09.1992-09.1998
VW Vento 1.6 [AEA] 09.1992-09.1998
VW Vento 1.6 [AEE] 09.1992-09.1998
VW Vento 1.6 [AEK] 10.1994-09.1998
VW Vento 1.6 [AFT] 10.1994-09.1998
VW Vento 1.8 [AAM] 11.1991-09.1998
VW Vento 1.8 [ABS] 11.1991-09.1998
VW Vento 1.8 [ADZ] 11.1991-09.1998
VW Vento 1.9 D [1Y] 11.1991-09.1998
VW Vento 1.9 TD [AAZ] 11.1991-09.1998
VW Vento 2.0 [2E] 11.1991-09.1998
VW Vento 2.0 [ADY] 11.1991-09.1998
VW Vento 2.0 [AGG] 11.1991-09.1998
VW Vento 2.0 [AKR] 11.1991-09.1998
SEAT Alhambra 2.0 i [ADY] after 04/1996
SEAT Arosa 1.0 [AER] 05.1997-06.2004
SEAT Arosa 1.4 [AEX] 05.1997-06.2004
SEAT Arosa 1.4 [AKV] 05.1997-06.2004
SEAT Arosa 1.4 [APQ] 05.1997-06.2004
SEAT Cordoba 1.4 i [AEX] 06.1994-06.1999
SEAT Cordoba 1.4 i [AEX] 09.1996-06.1999
SEAT Cordoba 1.4 i [AKV] 06.1994-06.1999
SEAT Cordoba 1.4 i [AKV] 09.1996-06.1999
SEAT Cordoba 1.4 i [ANX] 06.1994-06.1999
SEAT Cordoba 1.4 i [APQ] 06.1994-06.1999
SEAT Cordoba 1.6 i [1F] 09.1996-06.1999
SEAT Cordoba 1.6 i [AFT] 07.1996-06.1999
SEAT Cordoba 1.6 i [AFT] 09.1996-06.1999
SEAT Cordoba 1.8 i [ABS] 02.1993-06.1999
SEAT Cordoba 1.8 i [ACC] 02.1993-06.1999
SEAT Cordoba 1.8 i [ADZ] 02.1993-06.1999
SEAT Cordoba 1.9 TD [AAZ] 02.1993-08.1996
SEAT Cordoba 2.0 i [2E] 02.1993-06.1999
SEAT Cordoba 2.0 i [AGG] 02.1993-06.1999
SEAT Cordoba 2.0 i 16V [ABF] 08.1996-06.1999
SEAT Ibiza 1.6 i [1F] 03.1993-08.1999
SEAT Ibiza 1.6 i [AFT] 04.1996-08.1999
SEAT Ibiza 1.8 i [ABS] 03.1993-08.1999
SEAT Ibiza 1.8 i [ADZ] 03.1993-08.1999
SEAT Ibiza 1.9 D [1Y] 04.1993-08.1996
SEAT Ibiza 1.9 D [1Y] 10.1994-08.1996
SEAT Ibiza 1.9 TD [AAZ] 03.1993-08.1996
SEAT Ibiza 2.0 i [2E] 03.1993-08.1999
SEAT Ibiza 2.0 i [AGG] 03.1993-08.1999
SEAT Ibiza 2.0 i 16V [ABF] 08.1996-08.1999
SEAT Inca 1.4 i [AEX] after 11/5995
SEAT Inca 1.4 i [AKV] after 11/1995
SEAT Inca 1.6 i [1F] 11.1995-05.1998
SEAT Inca 1.6 i [AEE] 06.1997-05.1998
SEAT Toledo 1.6 i [1F] 05.1991-03.1999
SEAT Toledo 1.6 i [1F] 01.1993-03.1999
SEAT Toledo 1.6 i [ABN] 05.1991-03.1999
SEAT Toledo 1.8 i [ABS] 11.1993-12.1996
SEAT Toledo 1.8 i [ADZ] 11.1993-12.1996
SEAT Toledo 1.8 i [RP] 05.1991-12.1996
SEAT Toledo 1.9 D [1Y] 05.1991-03.1999
SEAT Toledo 1.9 D [1Y] 12.1995-03.1999
SEAT Toledo 1.9 TD [AAZ] 05.1991-03.1999
SEAT Toledo 2.0 i [2E] 05.1991-03.1999
SEAT Toledo 2.0 i [AGG] 05.1991-03.1996

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

16 other products in the same category:

Previous
Next
Do you have any questions?

Do you have any questions?

See our FAQ Contact us
Wagendass is committed to the durability of your vehicle

Wagendass is committed to the durability of your vehicle

New parts, no deposit, 2-year guarantee

Read more

Spare parts warranties with Wagendass

  • New parts
  • No deposits
  • 2-year warranty for all vehicle types

How to find your replacement part on the Wagendass website?

The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.

The part number can be numeric or alphanumeric, and can be found on your part.

Once you've found the part number, enter it in the search bar at the top center of our site.

The result will be the replacement part matching your part number.

Spare parts warranties with Wagendass
New parts

Original and adaptable
No deposits

No return of the old
Secure payments

Amex,CB,Visa,MasterCard in 3D Secure and PayPal
Fast delivery

France and International
