Alternator replacing LUCAS 24134A / 24134 / 24099A / 24099 / 23740A

Information:

Voltage 14

Amp 43

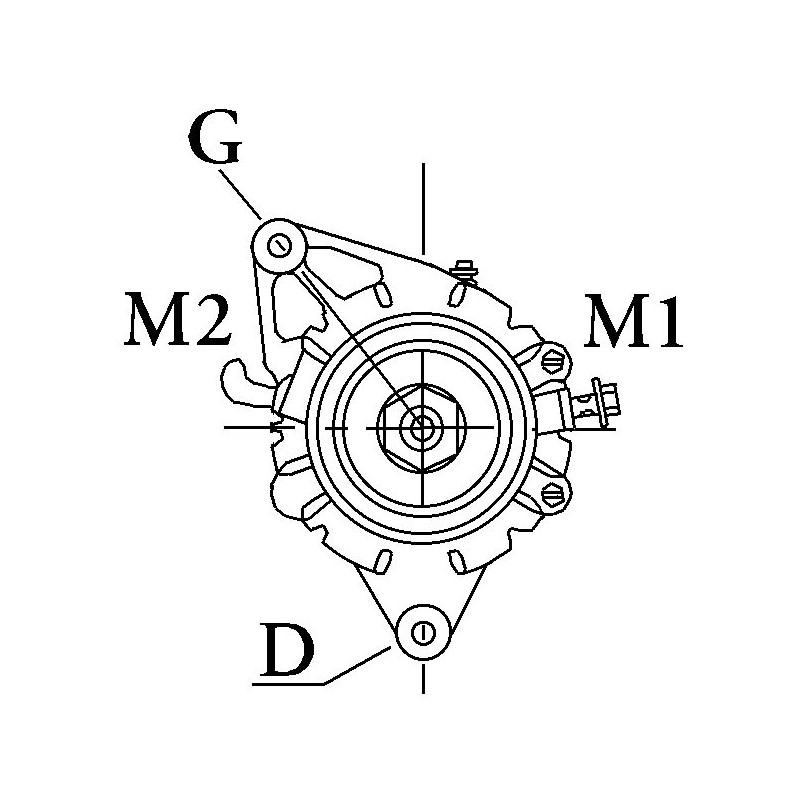

D = Bracket hole 8.20

G = Belt. adj. bracket hole M8

B = Width/holder arm 9.80

E = Belt. adj. brackethole pos. 50

C = Mount. bracket dist 81.00

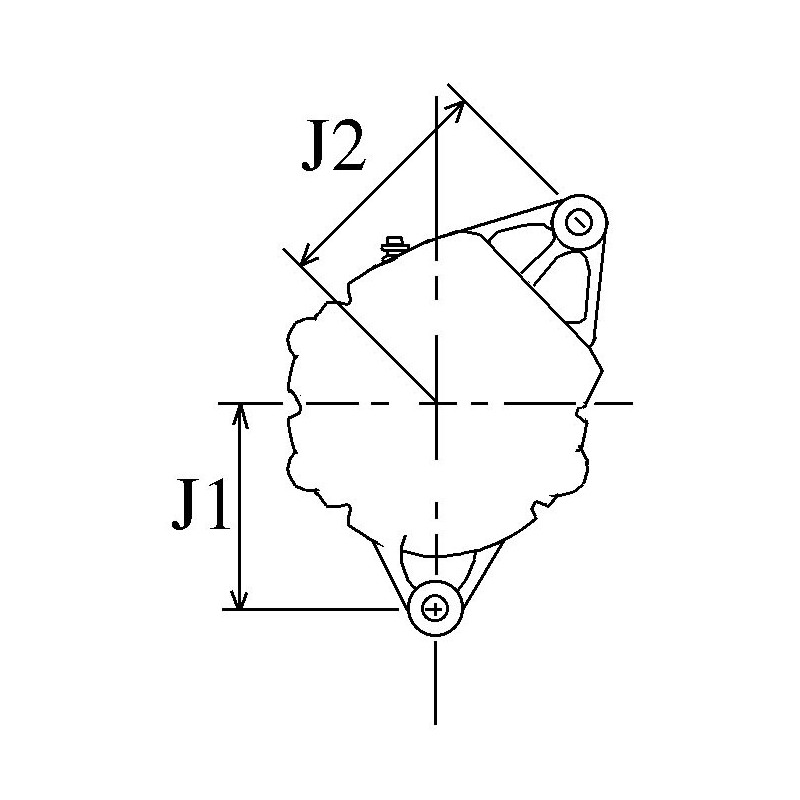

J = Radius 81.25

J = Radius 83.00

Rotation Cr

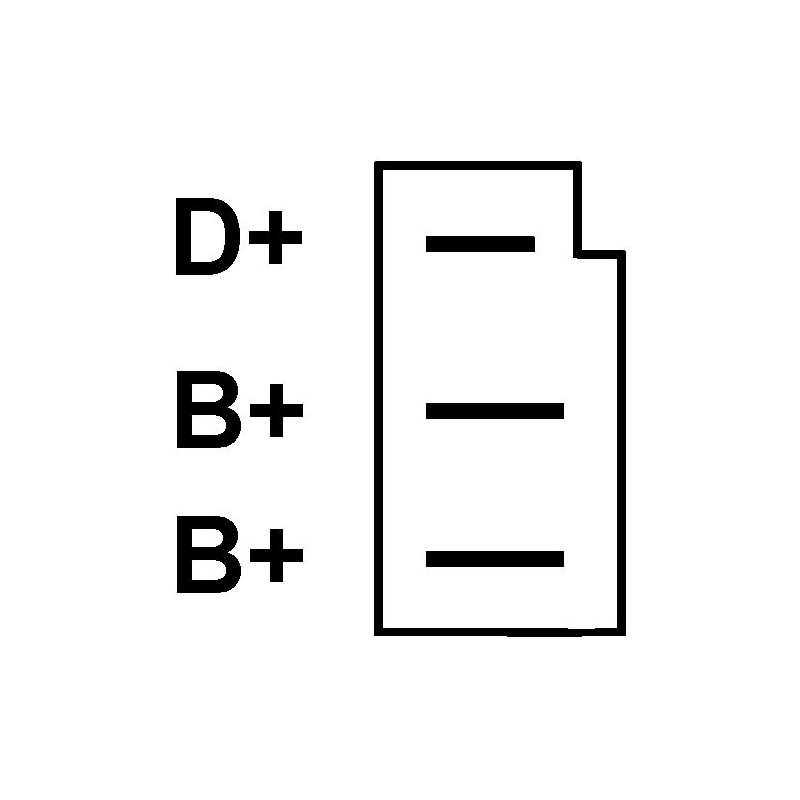

Plug no. 1 PL22

Fan If

Pulley Without

R = Total length mm 169.50

Generic brand

= Reference LUCAS :

23573
23573A
23573B
23573D
23617
23617A
23617B
23617D
23622
23622A
23622B
23677
23677B
23684
23691
23691A
23691B
23693
23693A
23693B
23693E
23697A
23697B
23697D
23709
23709A
23709B
23709D
23719
23719A
23719D
23721
23721A
23737
23737A
23737D
23739A
23739B
23740A
23740B
23751
23751A
23751D
23756
23756A
23756D
23759
23759A
23759D
23765
23765A
23765B
23766
23766A
23766B
23767
23767A
23767B
23771
23771A
23771B
23779
23779A
23779D
23806
23806A
23806B
23807A
23807B
23808
23808A
23808F
23811
23811A
23811D
23814A
23814B
23814D
23814E
23830A
23830B
23839
23839A
23839B
23842
23842A
23845
23845A
23845B
23846A
23848
23848A
23873
23873A
23890
23890A
23891
23891A
23893
23893A
23924
23924A
23925
23925A
23945
23945A
23946
23946A
23983
23983A
23985
23985A
23993A
23994
23994A
23994B
24024
24024A
24024B
24024D
24024E
24024F
24026
24026A
24026B
24036
24036A
24061
24065
24065A
24065B
24079A
24082
24082A
24099
24099A
24134
24134A
24134E
24181
24181A
24185
26021235
26921046

54021350
61920107

= Reference PERKINS :
2871609
2871A102
2871A120
2871A131

= Reference MOTOROLA :
9AR2918
9AR2918G

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
