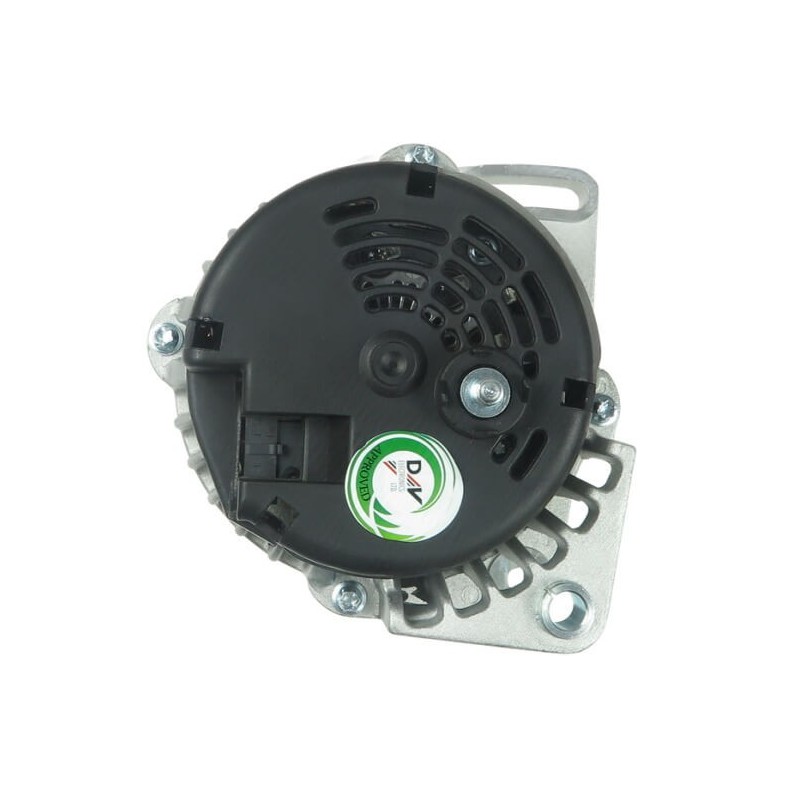

Alternator replacing RENAULT 7700870018 / 7700872258 / 7700872348

Information:

Voltage 14

Amp 75

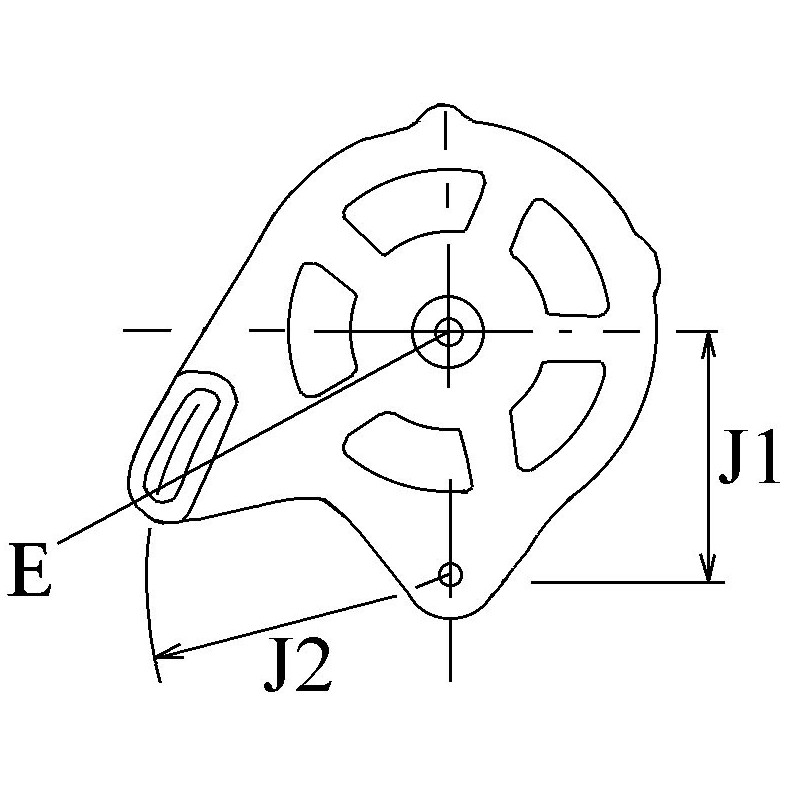

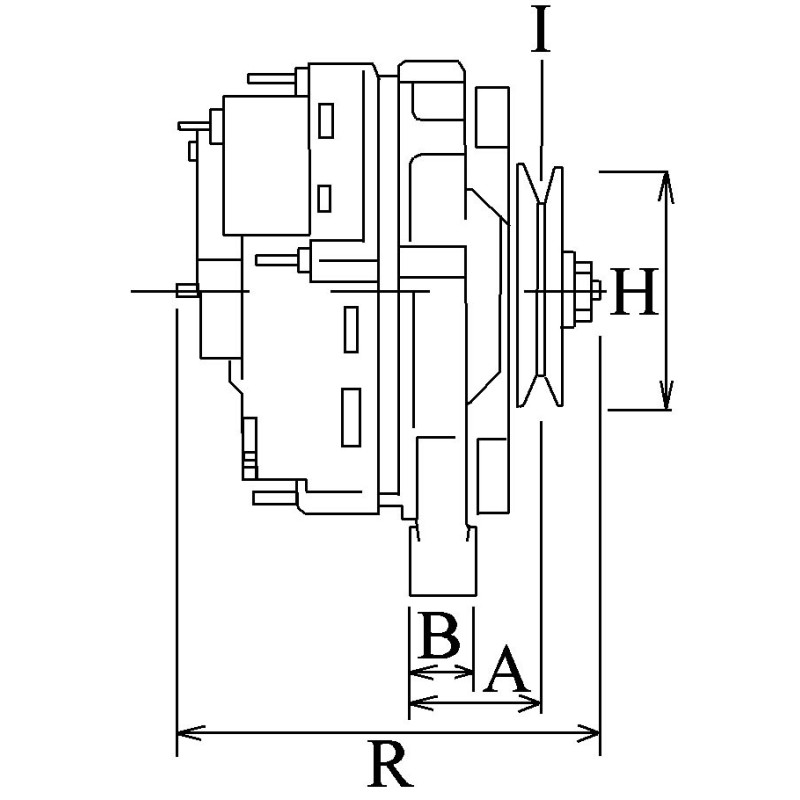

D = Bracket hole M10

G = Belt. adj. bracket hole 10.00/40.75

B = Width/holder arm 27.00

E = Belt. adj. brackethole pos. 47

C = Mount. bracket dist 66.50

H = Pulley dia. 59.50

A = Pulley dist. 46.70

Grooves/pulley 4

J = Radius 85.50

J = Radius 97.50

Position B + M8

Rotation Cr

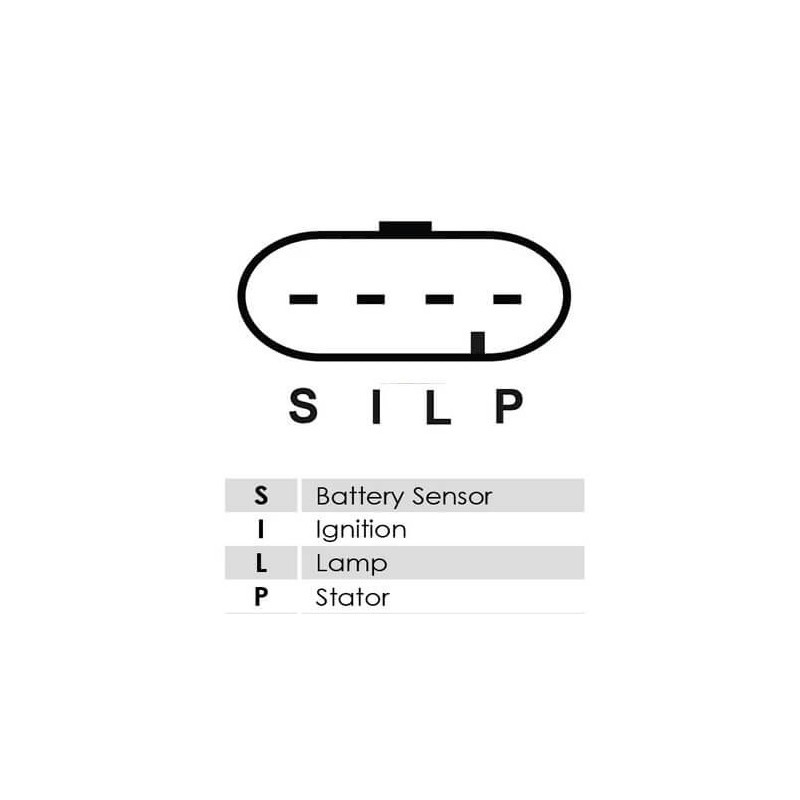

Plug no. 1 PL122

Fan If

Pulley Serpentine Pulley

R = Total length mm 179.00

generic brand

= DELCO REMY 10480214 / 10480215 / drx08378

= Delphi 872258 / 461

= HELLA 8FV351211371

= ISKRA AAK5503 / 11.209.004

= RENAULT 7700870018 / 7700872258 / 7700872348 / 7700972258

7711134795

= VALEO 436701

= VOLVO 8111838 / 8111839 / 872258 / 873348

                       NO CORE EXCHANGE NEEDED

                                       TWO YEARS WARRANTY
