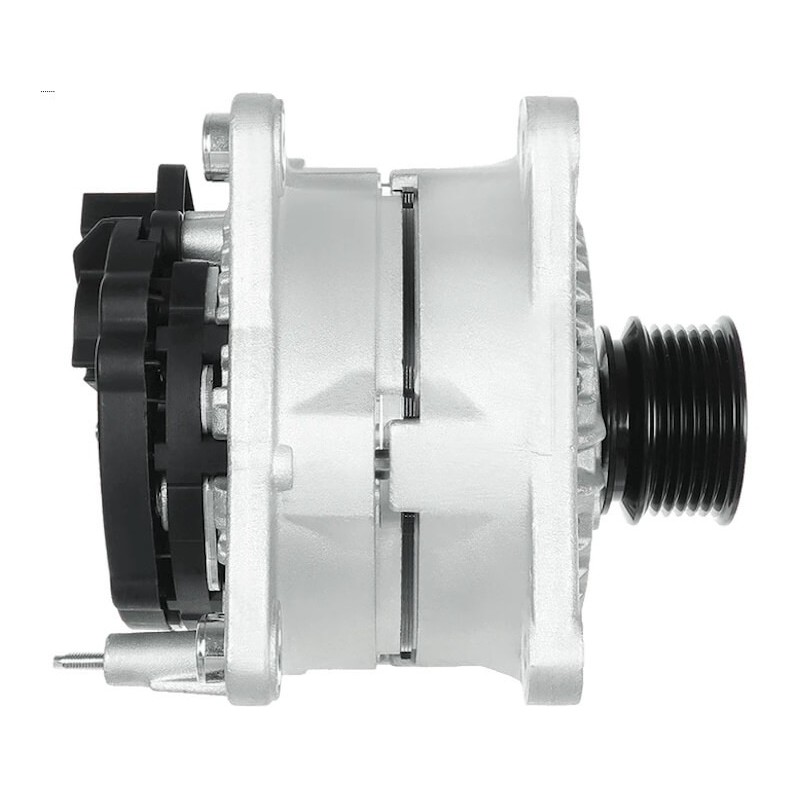

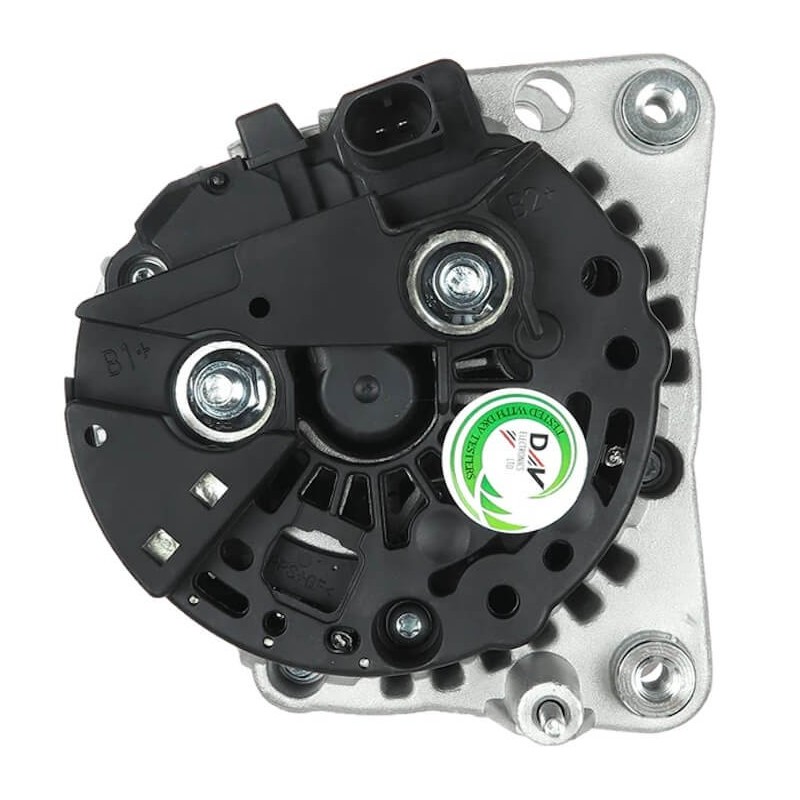

Alternator F000BL04DG replacing 0124325135 / 0124325003

Information:

Voltage 14

Amp 90

D = Bracket hole 8.60

G = Belt. adj. bracket hole 8.60

B = Width/holder arm 14.00

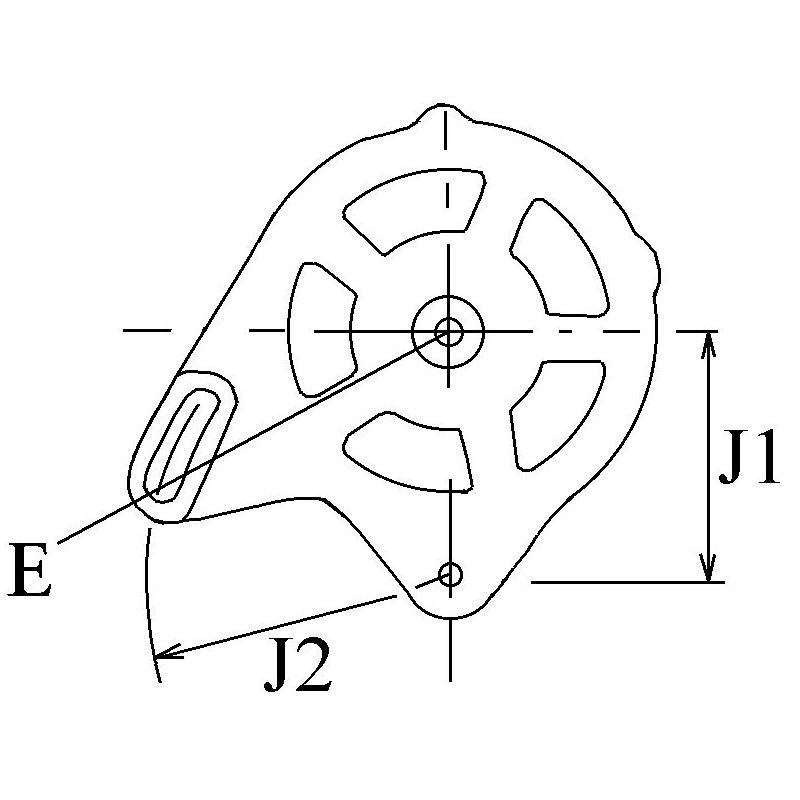

E = Belt. adj. brackethole pos. 45

C = Mount. bracket dist 61.00

H = Pulley dia. 56.00

A = Pulley dist. 39.60

Grooves/pulley 6

J = Radius 90.00

J = Radius 90.00

Position B + M8

Rotation Cr

Plug no. 1 PL61

Fan If

Pulley Serpentine Pulley

Belt. adj. bracket hole (M8)

R = Total length mm 186.50

= ISKRA 11.203.313 / aak5544

= MAGNETON 9517213

= VOLKSWAGEN 028903028d / 028903028DX / 030903023j

030903023JX / 06A903023 / 06a903026 / 06A903026A

fitsAudi / SKODA / VW / SEAT

                                                TWO YEARS WARRANTY

          NO CORE EXCHANGE NEEDED
