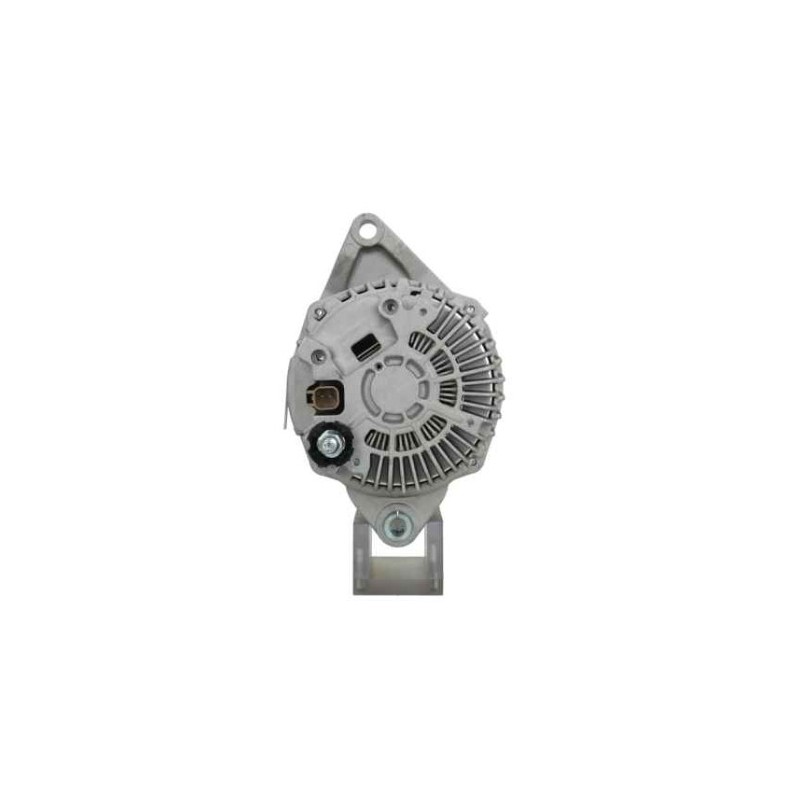

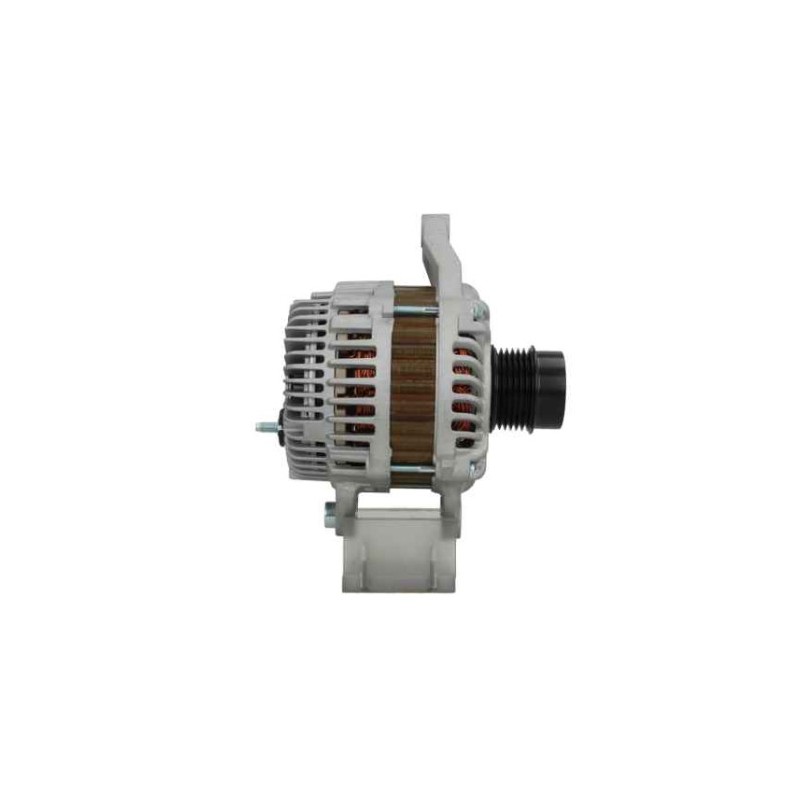

Alternator replacing A2TJ0481ZC / A2TJ0481 / A200TJ0481 / A200TJ0481ZC
Alternator NEW replacing :
CHRYSLER 04801323AB, 04801323AC, 04801323AD, 4801323AB, 4801323AC, 4801323AD, 4801323AK, MITSUBISHI A002TJ0481, A002TJ0481ZC, A002TJ0481ZD, A2TJ0481, A2TJ0481ZC, A2TJ0481ZD
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
| Voltage | 14 | |
| Amp. | 115 | |
Specs Physique | ||
|---|---|---|
| A | Pulley dist. | 34.00 |
| B | Width/holder arm | 12.70 |
| C | Mount. bracket dist | 53.80 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 3 |
| G | Belt. adj. bracket hole | 11.50 |
| H | Pulley dia. | 53.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 83.00 |
| J | Radius 2 | 102.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 40 |
| N | Rotation | Cr |

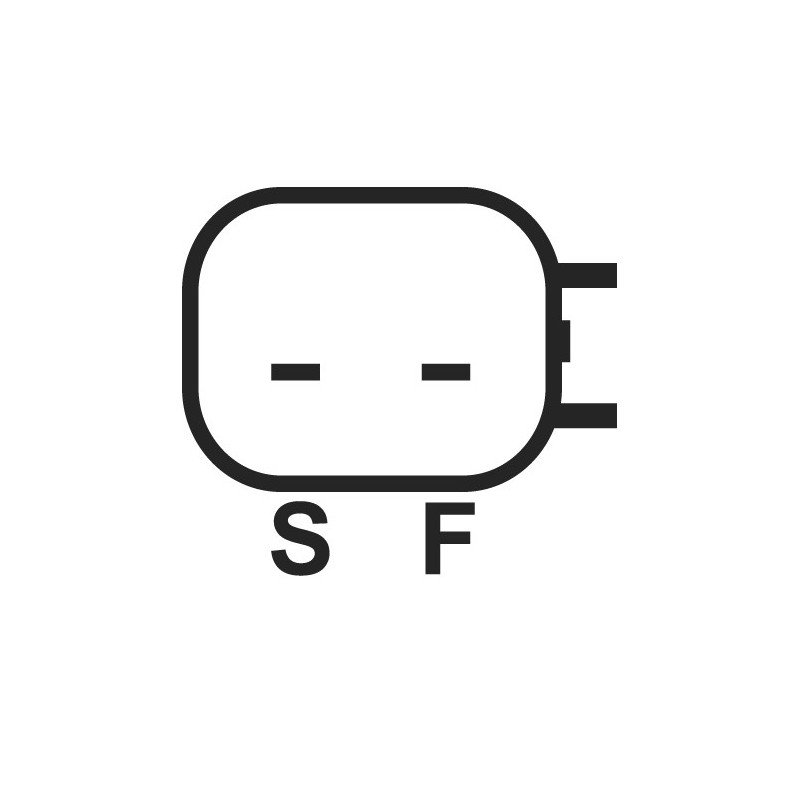

| O | Plug n° 1 | PL177 |
| R | Total length mm | 198.00 |
generic brand
| 04801323AB | CHRYSLER |
| 04801323AC | CHRYSLER |
| 04801323AD | CHRYSLER |
| 0986CN0255 | BOSCH ruil |
| 0986UR0255 | BOSCH ruil |
| 11231 | EAI |
| 115925 | Cargo |
| 12060996 | EuroTec |
| 275546 | Elstock |
| 40465 | CEVAM |
| 4801323AB | CHRYSLER |
| 4801323AC | CHRYSLER |
| 4801323AD | CHRYSLER |
| 4801323AK | CHRYSLER |
| 57523 | EAI |
| 835573115 | PSH |
| 930392 | EDR |
| A002TJ0481 | MITSUBISHI |
| A002TJ0481ZC | MITSUBISHI |
| A002TJ0481ZD | MITSUBISHI |
| A2TJ0481 | MITSUBISHI |
| A2TJ0481ZC | MITSUBISHI |
| A2TJ0481ZD | MITSUBISHI |
| ACA419 | ATK |
| AL6457N | BOSCH (USA) |
| AL6457X | BOSCH (USA) |
| ALT5220sa | Electrolog |
| DRA0392 | DELCO REMY |
| LRA02932 | LUCAS |
| TRA131 | TWA |
Mounted on :
| brand | Model | Tipo | year |
| CHRYSLER | Sebring 2.0 | [ECN] | 01.2007-12.2010 |
| CHRYSLER | Sebring 2.4 | [EDG] | 01/01/07 |
| DODGE | Avenger 2.0 | [ECN] | 01/01/06 |
| DODGE | Avenger 2.4 | [EDG] | 01/01/06 |
| DODGE | Caliber 2.0 | [ECN] | 01/01/06 |
| DODGE | Caliber 2.4 | [ED3] | 01/01/06 |
| JEEP | Compass 2.0 | [ECN] | 01/01/06 |
| JEEP | Compass 2.4 | [ERZ] | 01/01/06 |
| JEEP | Patriot 2.0 | [ECN] | 01/01/06 |
| JEEP | Patriot 2.4 | [ED3] | 01/01/06 |
CHRYSLER
| Model | Model série | Reference d'origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Tipoe châssis | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sebring | Sebring | 2.4 | Unleaded | 2001 04 | - | EDZ | 112 | 152 | 2429 | 4 | JR | ||||||
| Sebring | Sebring | 2.4 | Unleaded | 2007 07 | - | ED3 | VVT | 125 | 170 | Décapotable | 2360 | 4 | |||||
| Sebring | Sebring | 2.4 | Unleaded | 2007 07 | - | EDG | VVT | 125 | 170 | 2360 | 4 | ||||||
| Sebring | Sebring | 2.4 | Unleaded | 2007 07 | - | ED3 | VVT | 125 | 170 | 2360 | 4 | ||||||
| Sebring | Sebring | 2.0 | Unleaded | 2007 07 | - | ECN | VVT | 115 | 156 | 1998 | 4 |
DODGE, Véhicule léger EU
| Model série | Reference d'origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Tipoe châssis | Engine in cm3 | Cylindres |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Avenger | 2.4 | Unleaded | 2007 06 | - | ED3 | 129 | 175 | 2360 | 4 | ||
| Avenger | 2.0 | Unleaded | 2007 06 | - | ECN | 115 | 156 | 1998 | 4 | ||
| Avenger | 2.4 | Unleaded | 2007 06 | - | EDG | 129 | 175 | 2360 | 4 | ||
| Caliber | 2.0 | Unleaded | 2006 06 | - | ECN | 115 | 156 | MPV | 1998 | 4 | |
| Caliber | 2.4 | Unleaded | 2006 10 | - | ED3 | 125 | 170 | MPV | 2359 | 4 | |
| Caliber | 1.8 | Unleaded | 2006 06 | - | EBA | 110 | 150 | MPV | 1798 | 4 | |
| Caliber | 2.4 | Unleaded | 2007 12 | - | ED4 | 217 | 295 | Hayon | 2359 | 4 |
