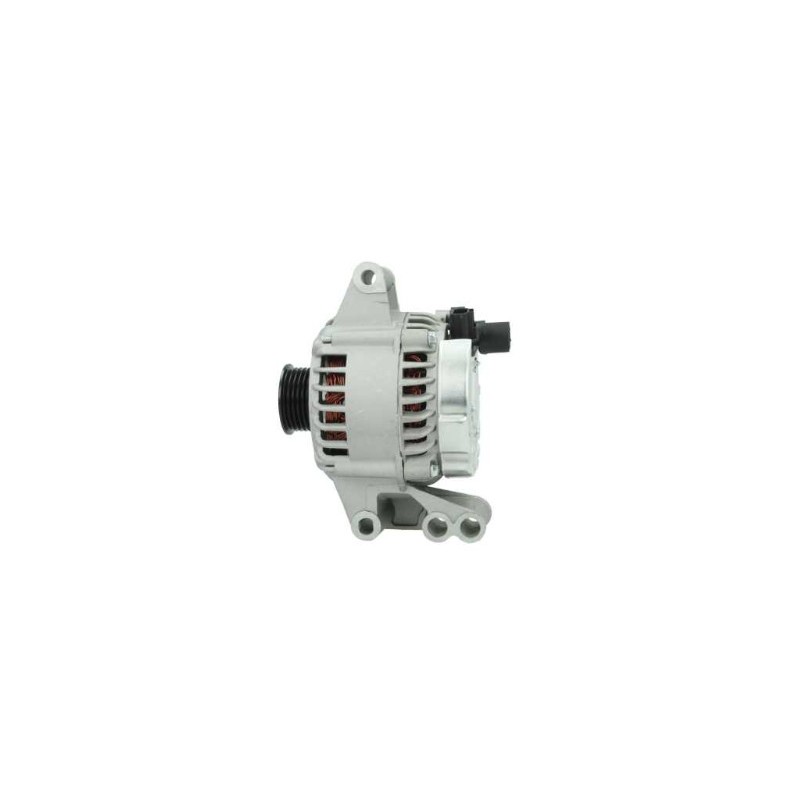

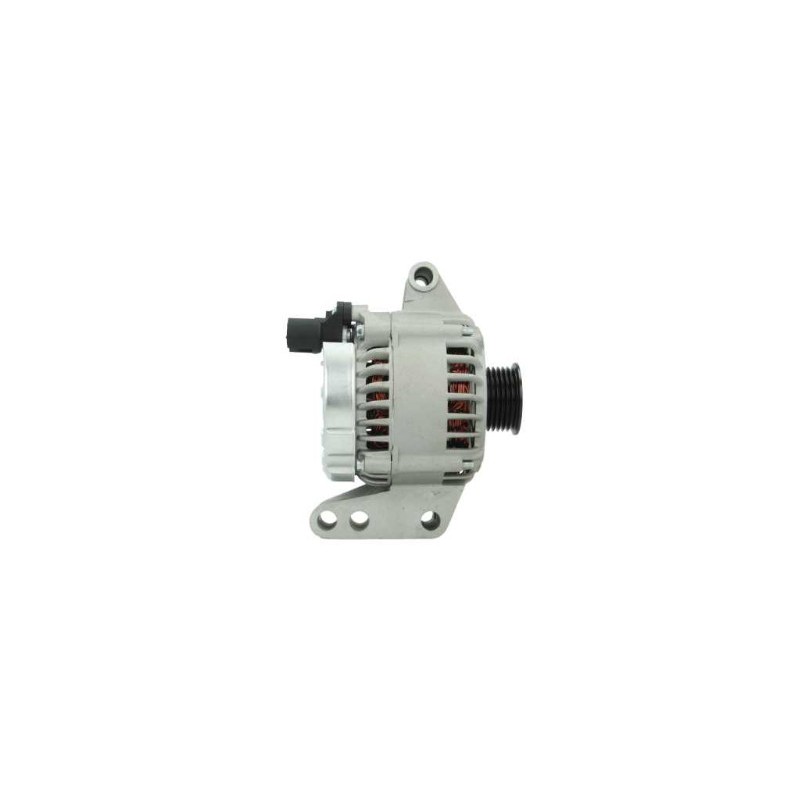

Alternator replacing FORD 2S6T10300FB / 2S6T10300FA / 2S6T10300FC
Alternator NEW replacing :
BOSCH 0986049141 / 0986049980
VISTEON 20-150-01001
DRA0177 / DRA0177N / LRA03039 / F042A0H169
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |

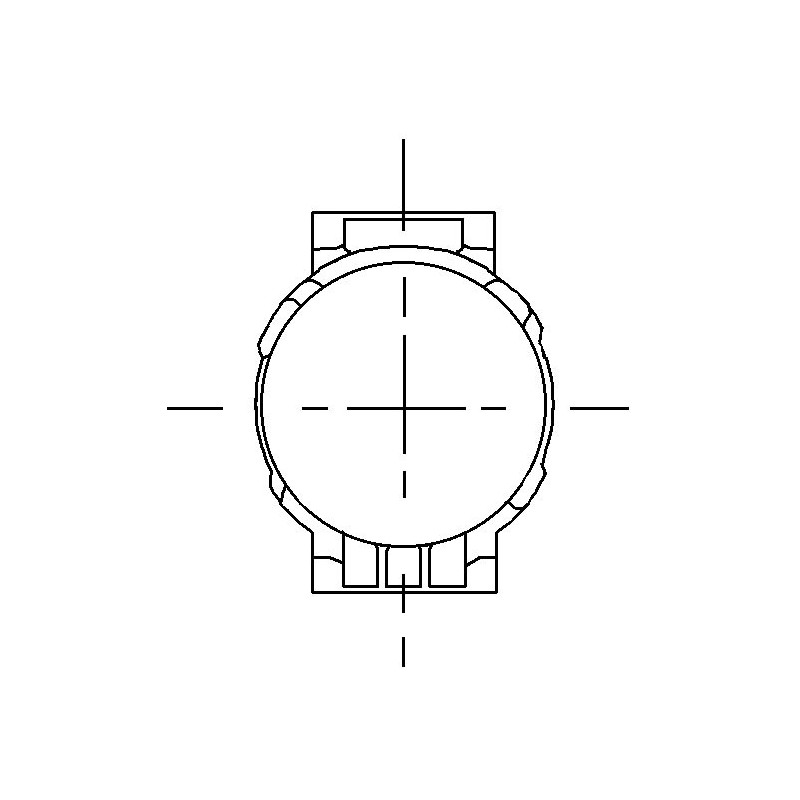

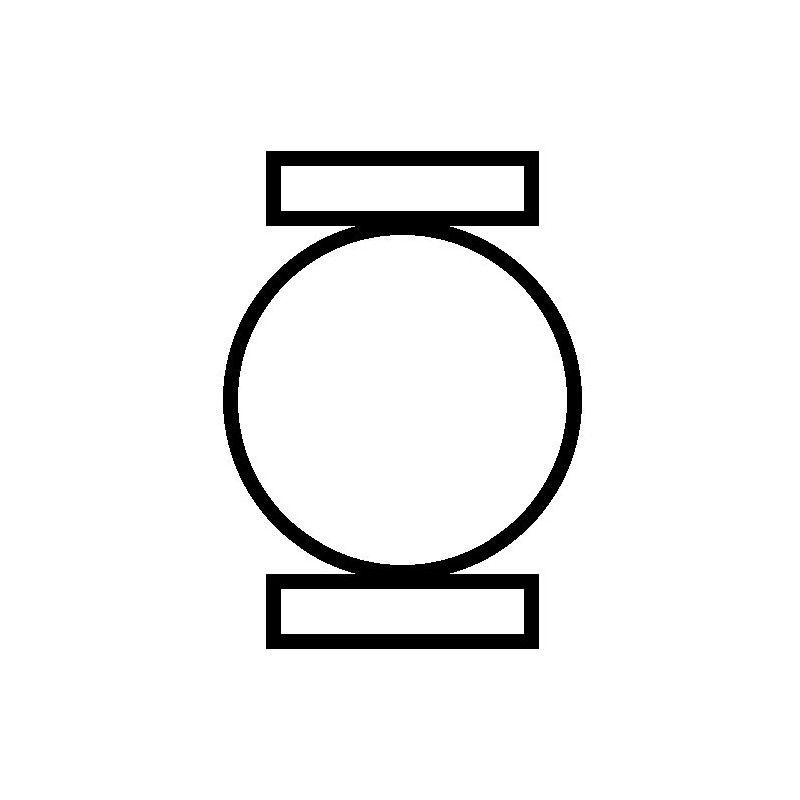

Physical Information | ||
|---|---|---|
| D | Bracket hole | 12.00 |
| G | Belt. adj. bracket hole | 12.00 |
| B | Width/holder arm | 54.87 |
| E | Belt. adj. brackethole pos. | 60 |
| E | Ceinture from soutien réglable/ pos. 2 | 5 |
| C | Mount. bracket dist | 74.00 |
| H | Pulley dia. | 48.46 |
| A | Pulley dist. | 39.58 |
| i | Grooves/pulley | 6 |
| j | Radius | 87.45 |
| j | Radius 2 | 90.00 |
| k | Position B + | M6 |
| n | Rotation | CW |

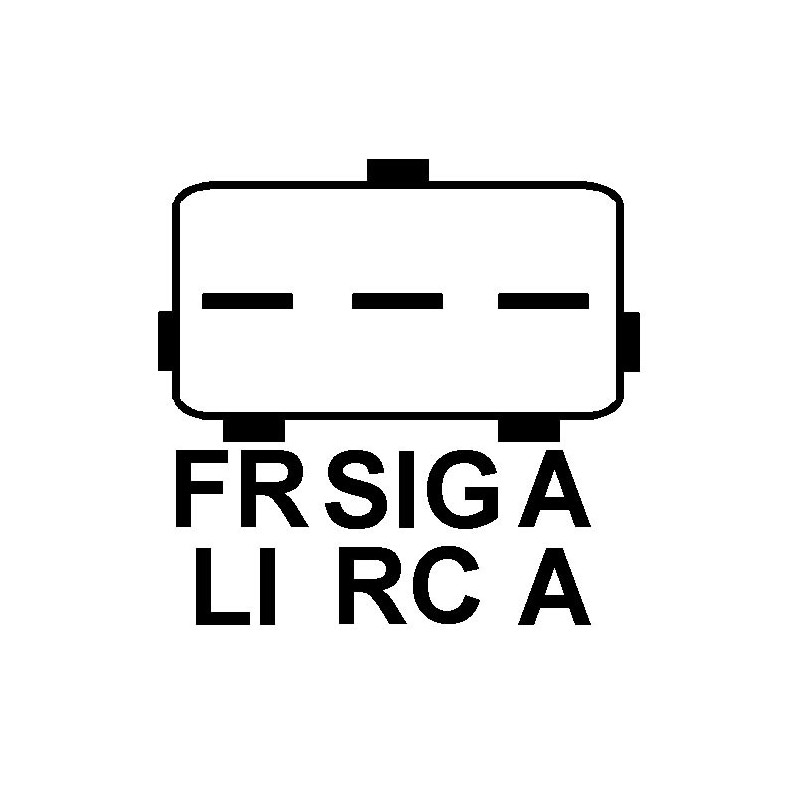

| o | Plug no. 1 | PL57 |
| D | Trou from fixation support 2 | 10.25 |
| G | Belt. adj. bracket hole 2 2 | 10.22 |
| R | Total length mm | 165.50 |
generic brand
Replacing | |
|---|---|
| 1145715 | FORD |
| 1464755 | FORD |
| 1479818 | FORD |
| 20-150-01001 | VISTEON |
| 2S6T10300FA | FORD |
| 2S6T10300FB | FORD |
| 2s6t10300fc | FORD |
| 2S6TFA | FORD |
| ca2034ir | HC-PARTS |
| 0986049141 |
| 0986049980 |
| 1145715 |
| 1450644 |
| 1464755 |
| 1479818 |
| 1486806 |
| 2015001001 |
| 208679 |
| 275651 |
| 284850 |
| 2S6T10300FA |
| 2S6T10300FB |
| 2S6T10300FC |
| 3S5T10300AB |
| 595543090 |
| 595543104 |
| 6203SP |
| 8527 |
| 8527N |
| 930177 |
| CA2034IR |
| DRA0177 |
| DRA0177N |
| F042A0H169 |
| HCA2034IR |
| LEA0462 |
| LRA03039 |
| OAN12343 |
Mounted on :
| Fiesta | Fiesta | 1.3 | Unleaded | 2001 11 | 2008 06 | A9JB | 51 | 69 | Hayon | 1299 | 4 | JH_, JD_ | ||
| Fiesta | Fiesta | 1.3 | Unleaded | 2001 11 | 2008 06 | BAJA | 44 | 60 | Hayon | 1299 | 4 | JH_, JD | ||
| Fiesta | Fiesta | 1.3 | Unleaded | 2001 11 | 2008 06 | A9JA | 51 | 69 | Hayon | 1299 | 4 | JH_, JD_ | ||
| Focus | Focus | 1.6 | Unleaded | 1999 04 | 2005 03 | 74 | 101 | Break | 1596 | 4 | DNW | |||
| Ka | Ka | 1.6 | Unleaded | 2003 07 | - | CDB | i | 70 | 95 | Hayon | 1599 | 4 | ||
| Ka | Ka | 1.6 | Unleaded | 2003 05 | 2005 07 | CDRA | 70 | 95 | Décapotable | Street | 1599 | 4 | ||
| Ka | Ka | 1.6 | Unleaded | 2003 07 | - | CCA | i | 70 | 95 | Hayon | 1599 | 4 | ||
| Ka | Ka | 1.6 | Unleaded | 2003 05 | 2005 07 | CDRB | 70 | 95 | Décapotable | Street | 1599 | 4 | ||
| Ka | Ka | 1.6 | Unleaded | 2003 07 | - | CDC | i | 70 | 95 | Hayon | 1599 | 4 |
Data sheet
| Poulie | serpentine |
| Connecteur régulateur | PL6 |
| Ampérage | 140 |
| Voltage | 14 |
