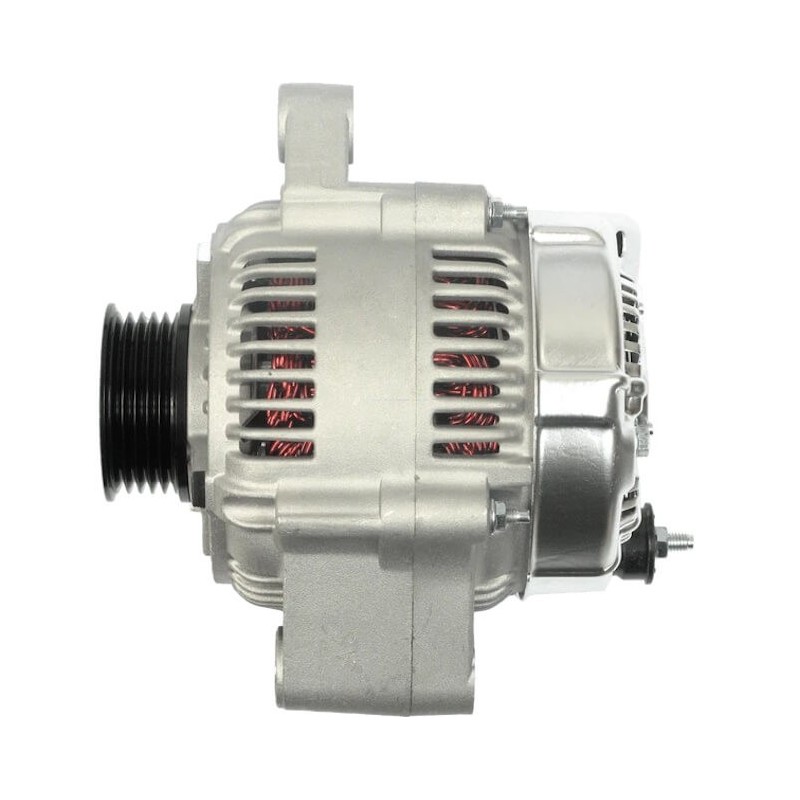

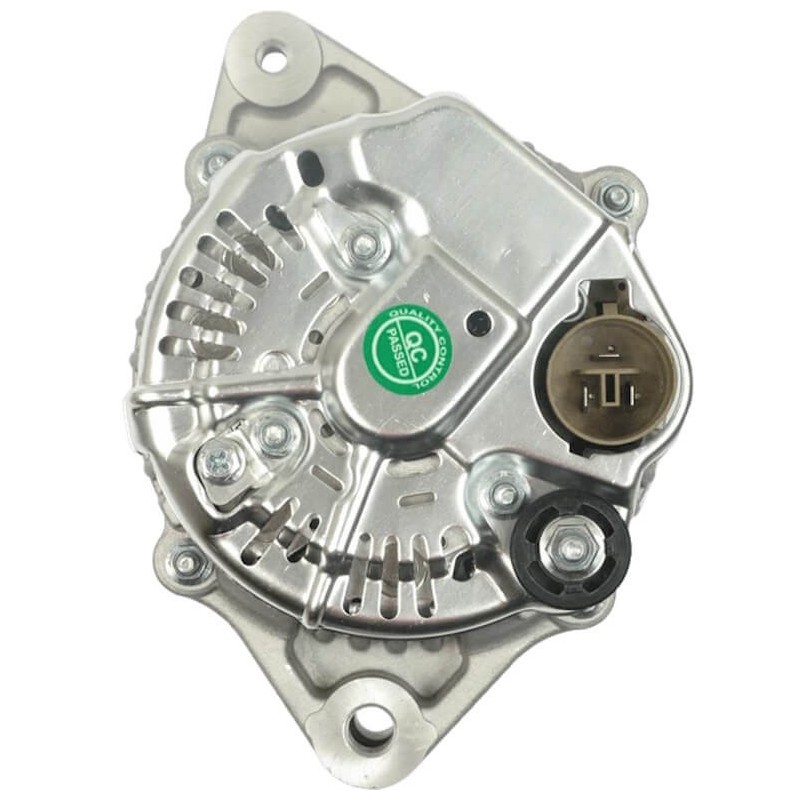

Alternator replacing DENSO 101211-5220 / 101211-5210 / 100211-8810

Information:

Voltage 14

Amp 70

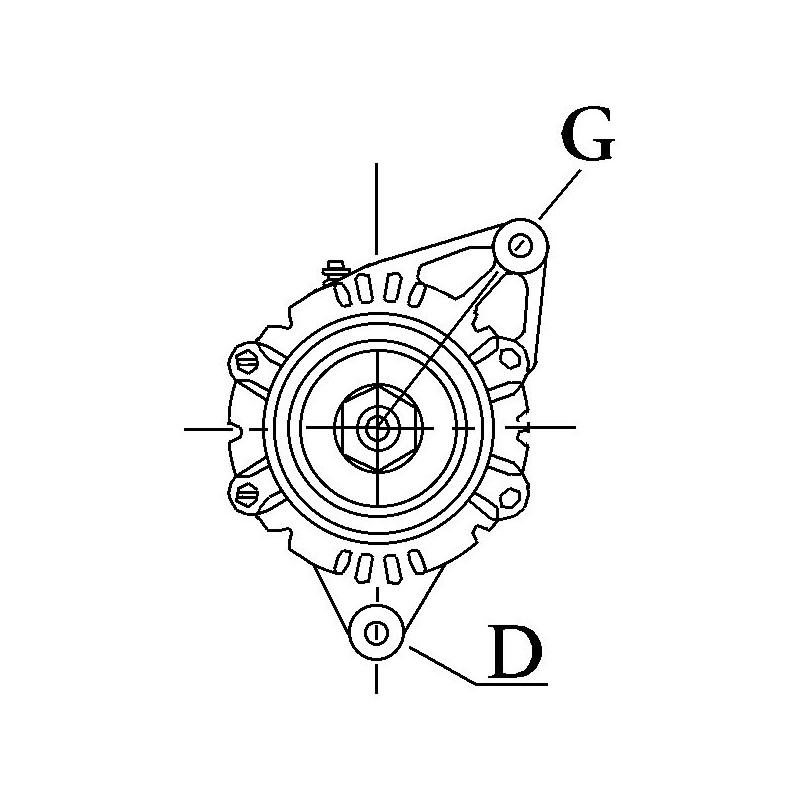

D = Bracket hole 10.00

G = Belt. adj. bracket hole M8

B = Width/holder arm 58.00

E = Belt. adj. brackethole pos. 5

H = Pulley dia. 57.00

A = Pulley dist. 90.00

Grooves/pulley 5

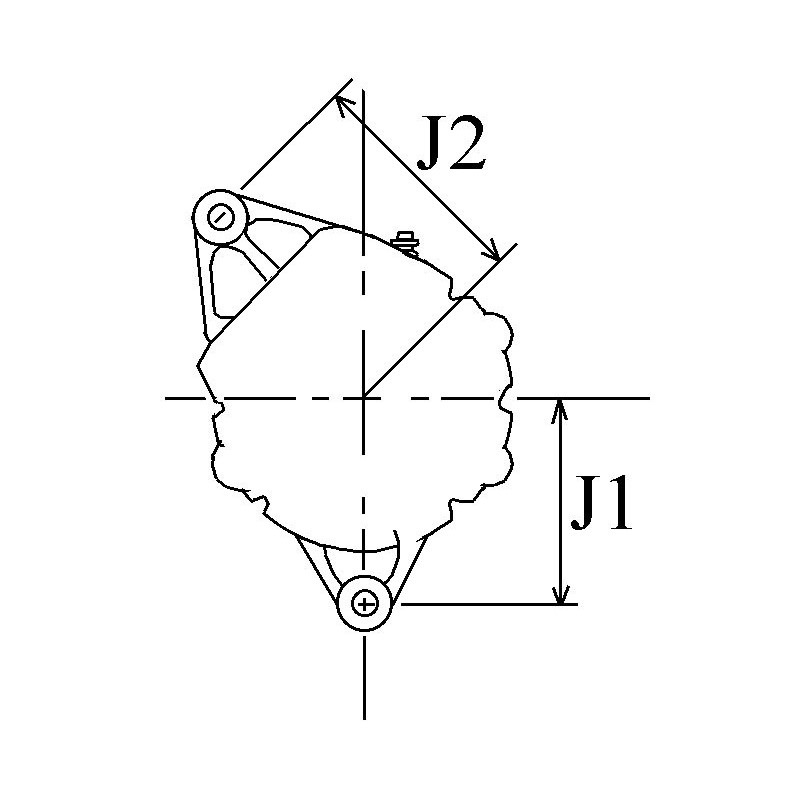

J = Radius 80.00

J = Radius 86.00

Position B + M6

Rotation Cr

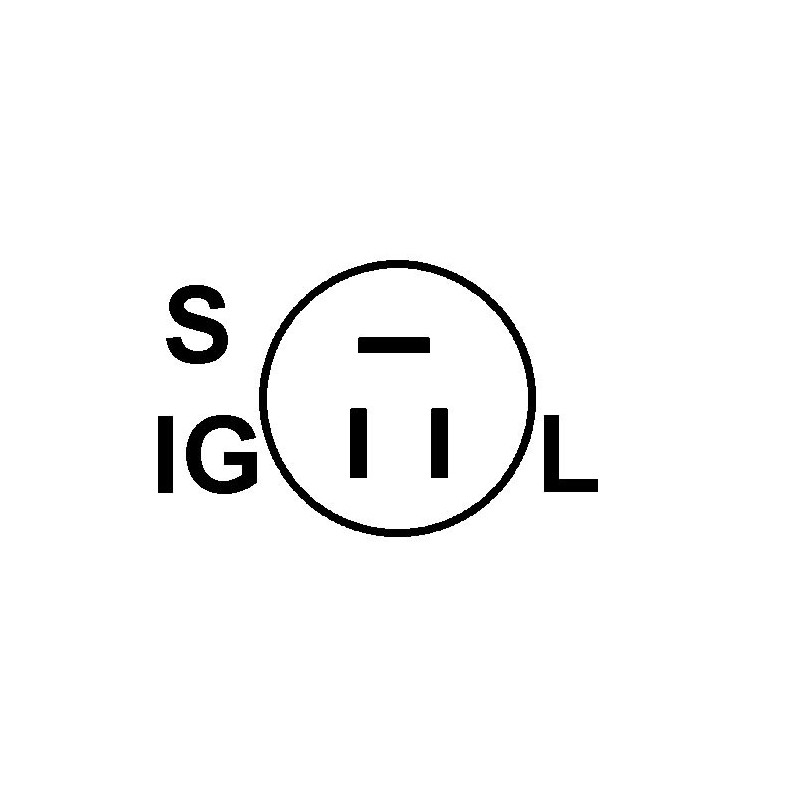

Plug no. 1 PL12

Fan If

Pulley Serpentine Pulley

R = Total length mm 179.00

generic brand

replacing

= BOSCH 0986035501

= DENSO 101211-5220 / 101211-5210 / 100211-8810 / 100211-8590

 100211-8470 / 100211-8340 / 100211-8330 / 100211-8230

100211-7911 / 100211-7910 / 100211-7781 / 100211-7780

100211-7670 / 100211-7640

= LUCAS LRA344 / LRA550

= TOYOTA 27060-74110 / 27060-74120 / 27060-74130 / 27060-74140

27060-74150 / 27060-74190 / 27060-74210 / 27060-74290

                                                 NO CORE EXCHANGE NEEDED

                                                               TWO YEARS WARRANTY
