Alternator replacing 104210-8160 / 104210-9240 / DAN1020 / 27060-0Q060
Alternator replacing 104210-8160 / 104210-9240 / DAN1020
DELCO REMY DRA0618 / DRA0697
LUCAS LRA03375 / TWA TNA052
TOYOTA 27060-0Q060 / 27060-40020 / 27060-40040 / 27060-40041
NO CORE EXCHANGE NEEDED
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 80 | |
Physical information | ||
|---|---|---|
| A | Pulley dist. | 29.00 |
| B | Width/holder arm | 19.00 |
| C | Mount. bracket dist. | 37.00 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 57.00 |
| J | Radius | 89.00 |
| J | Radius 2 | 81.00 |
| K | B+ position | M6 |
| K | Position/B+ in min. | 20 |
| N | Rotation | CW |

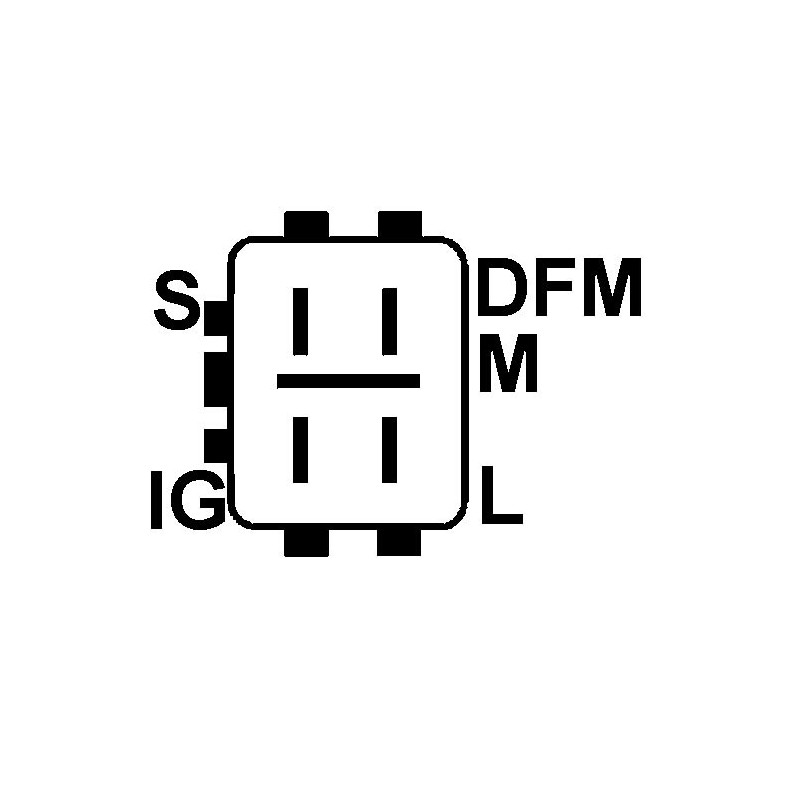

| O | Plug no. 1 | PL78 |
| R | Total length mm | 173. |
generic brand
replaces
| 012240621 | HELLA | |
| 1042108160 | DENSO | |
| 1042109240 | DENSO | |
| 12060923 | EuroTec | |
| 12061006 | EuroTec | |
| 195977080 | PSH | |
| 270600Q060 | TOYOTA | |
| 2706040020 | TOYOTA | |
| 2706040040 | TOYOTA | |
| 2706040041 | TOYOTA | |
| 285987 | Elstock | |
| 57277 | EAI | |
| 63377541010 | MAGNETI MARELLI | |
| 9465 | CEVAM | |
| ALT6135sa | Electrolog | |
| DAN1020 | DENSO | |
| DRA0618 | DELCO REMY | |
| DRA0697 | DELCO REMY | |
| EAL9004 | ||
| LRA03375 | LUCAS | |
| TNA052 | TWA | |
fits :
| TOYOTA | Yaris 1.0 VVT-i | 1KRFE | 01/06 |
