Alternator replacing MITSUBISHI A5T04492B / A5T04492A / A5T04392B

Information:

Voltage 14

Amp 70

D = Bracket hole 10.45

G = Belt. adj. bracket hole M8

B = Width/holder arm 24.85

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 82.20

H = Pulley dia. 59.30

A = Pulley dist. 38.00

Grooves/pulley 4

J = Radius 82.95

J = Radius 84.60

Position B + M6

Rotation Cr

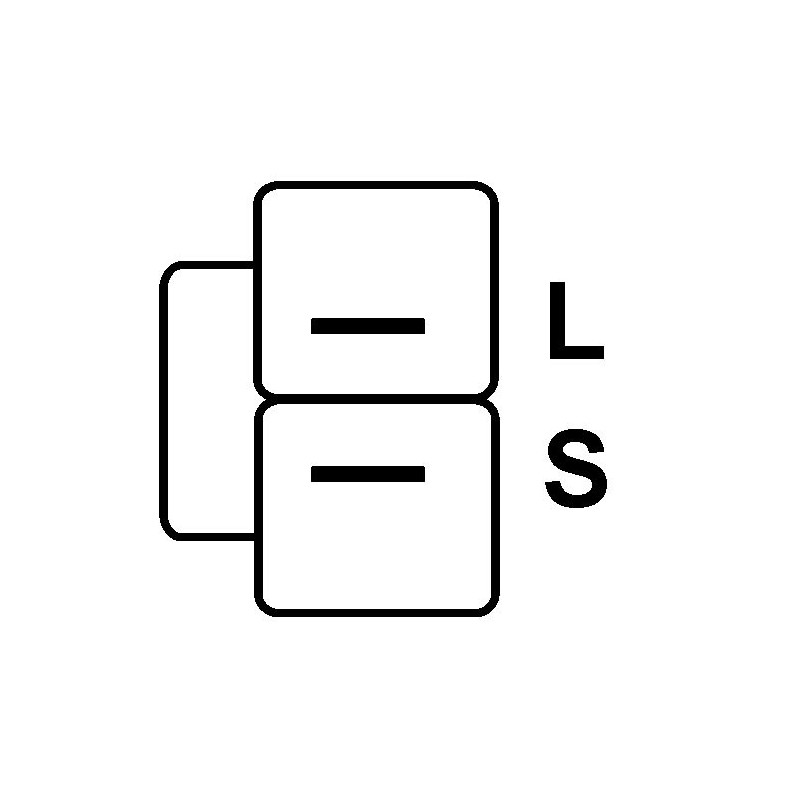

Plug no. 1 PL07

Fan If

Pulley Serpentine Pulley

= BOSCH 0986038041   / 0986038281

= HITACHI LR165708   / LR165708B  / LR165708C   /  LR170738
LR170738B   / LR170738C    / LR170738E

= LUCAS LRA02660   / LRB00130

= MITSUBISHI A5T04492B / A5T04492A / A5T04392B / A5T04392A

A5T04392 / A5T03192 / A5T03092 / a5t03092 / a5t03192

a5t04392 / a5t04392a / a5t04392b / a5t04492a / a5t04492b

= HELLA 8EL732739001

= HITACHI LR170-738E / LR170-738C / LR170-738B

LR170-738 / LR165-708E / LR165-708C / LR165-708B / LR165-708

= NISSAN 23100-0e700 / 23100-0e705 / 23100-0e706

23100-0e711 / 23100-0e712 / 23100-0e715 / 23100-0e716

23100-0e717 / 23100-50y05 / 23100-50y06 / 23100-50y08

23100-50y09 / 23100-50y18 / 23100-50y19

= VALEO 440058

                   NO CORE EXCHANGE NEEDED

                                         TWO YEARS WARRANTY
