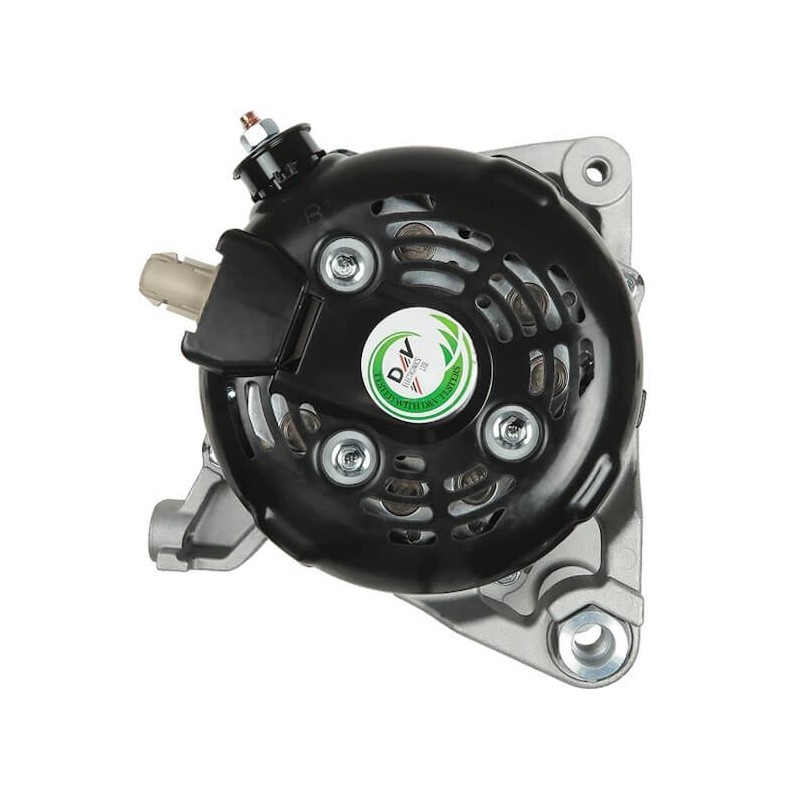

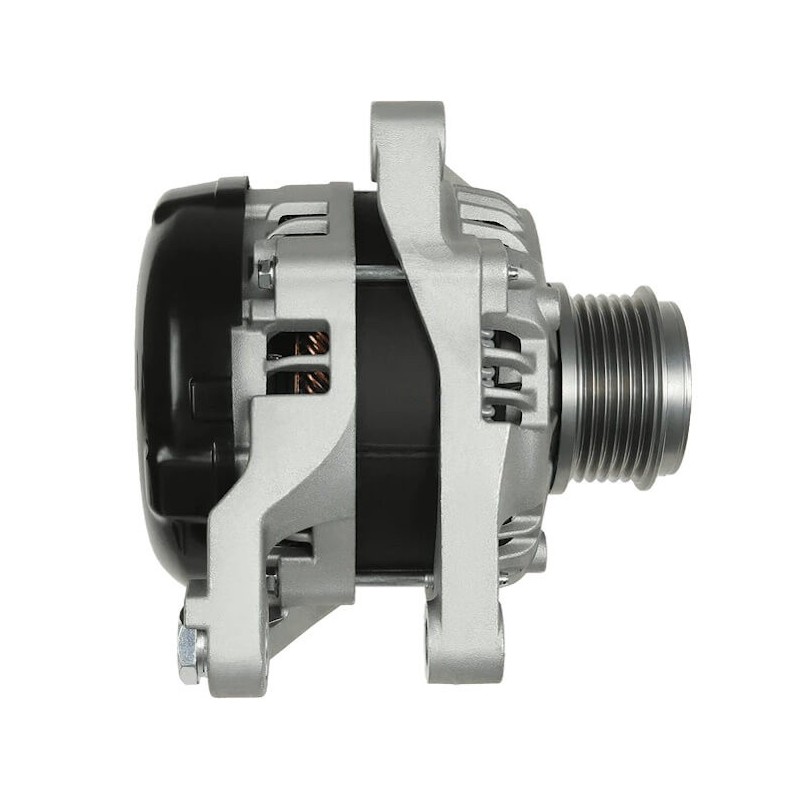

Alternator replacing 104211-3000 / 104211-3001 / 104211-3002 / 104211-3130 / 27060-0N090
| 063377564010 | Magneti Marelli |
| 1042101370 | Denso |
| 1042113000 | Denso |
| 1042113001 | Denso |
| 1042113002 | Denso |
| 1042113130 | Denso |
| 195971100 | PSH |
| 20201069 | AES |
| 270600N090 | Toyota |
| 270600N100 | Toyota |
| 2706033110 | Toyota |
| 286673 | Elstock |
More info
Electrical information | |
|---|---|
| Voltage | 14 |
| Amp | 100 |
Physical information | ||
|---|---|---|
| A | Pulley dist. | 48.00 |
| B | Width/holder arm | 20.00 |
| C | Mount. bracket dist. | 43.00 |
| D | Bracket hole | 11.00 |
| E | Belt. adj. brackethole pos. | 45 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 58.40 |
| I | Grooves/pulley | 6 |
| J | Radius | 86.00 |
| J | Radius 2 | 82.00 |
| K | B+ | M6 |
| K | Position/B+ in min. | 0 |
| N | Rotation | CW |
| R | Total length mm | 167.00 |
| One Wire hookup (Self exciting) | No | |
generic brand
replacing
| 063377564010 | Magneti Marelli |
| 1042101370 | Denso |
| 1042113000 | Denso |
| 1042113001 | Denso |
| 1042113002 | Denso |
| 1042113130 | Denso |
| 195971100 | PSH |
| 20201069 | AES |
| 270600N090 | Toyota |
| 270600N100 | Toyota |
| 2706033110 | Toyota |
| 286673 | Elstock |
| 63377564 | Magneti Marelli |
| ALT30525 | Wood Auto |
| ATA925 | AES |
| DA2205 | Remy |
| DAN1094 | Denso |
| DENDAN1094 | Wood Auto |
| DRA1095 | Remy |
| LRA03563 | Lucas |
| LRA3563 | Lucas |
| MAN7564 | Magneti Marelli |
| MS1042113000 | Denso |
| MS1042113130 | Denso |
| RNL1042113001 | RNL |
| WOOALT30525 | Wood Auto |
Toyota, PASSENGER CARS EU
| Model | Model series | Engine size | Fuel | From date | To date | Engine brand | Engine type | KW | Vehicle horse power | Chassi type | Model type | Engine volume | Cylinders | Tipo Description |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Auris | Auris | 1.4 | Diesel | 2013 03 | 2018 12 | 1ND-TV | D-4D | 66 | 90 | Van | 1364 | 4 | ZRE18_, NZE18_ | |
| Auris | Auris | 1.4 | Diesel | 2012 10 | 2018 12 | 1ND-TV | D-4D | 66 | 90 | Hatchback | 1364 | 4 | NZE18_, ZRE18_ | |
| Auris | Auris Touring Sports | 1.4 | Diesel | 2013 07 | 2018 12 | 1ND-TV | D-4D | 66 | 90 | Estate | 1364 | 4 | ||
| Corolla | Corolla | 1.4 | Diesel | 2013 06 | 2018 12 | 1ND-TV | D-4D | 66 | 90 | 1364 | 4 | NRE18_, ZRE18_, NDE18_ | ||
| Yaris | Yaris | 1.4 | Diesel | 2011 09 | - | 1ND-TV | D-4D | 66 | 90 | Hatchback | 1364 | 4 | _P13_ |
