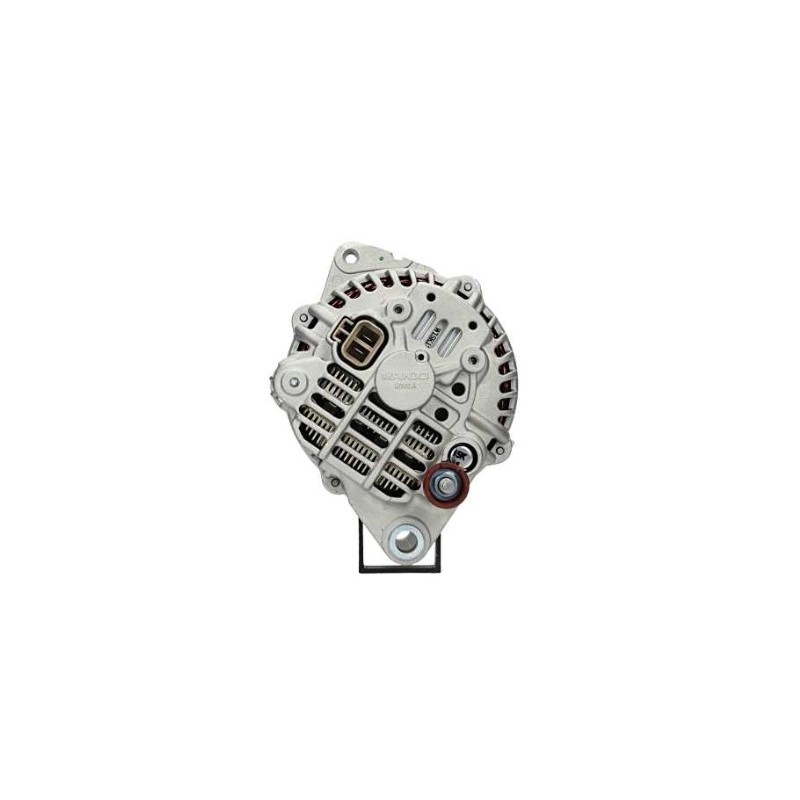

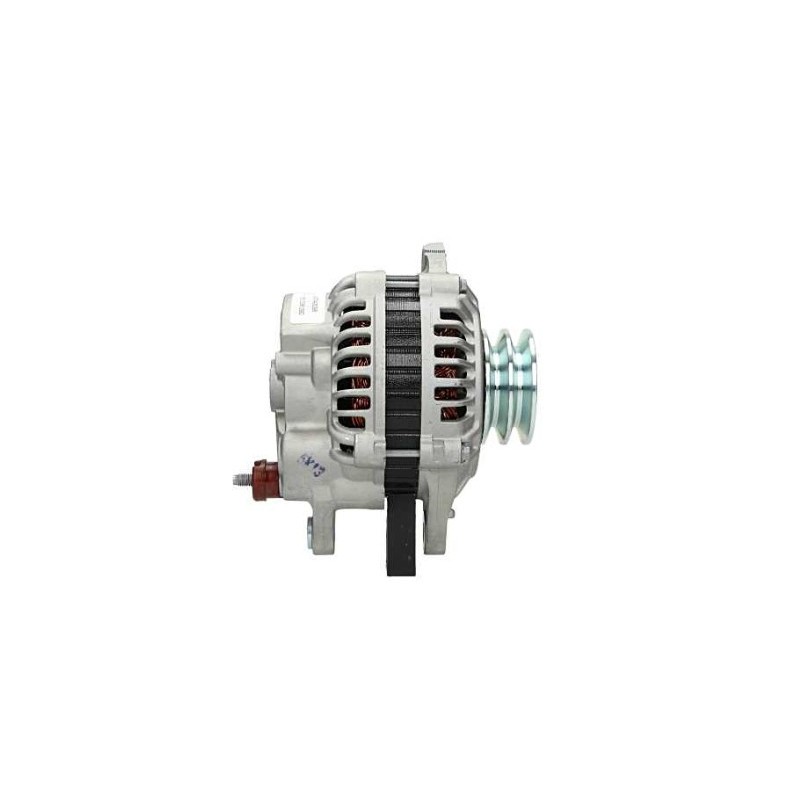

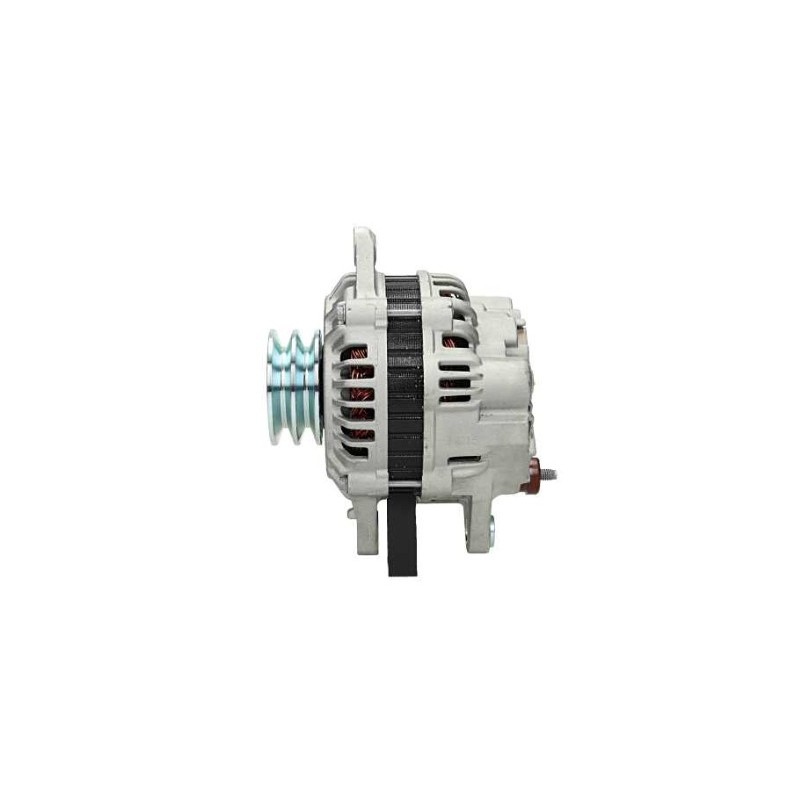

Alternator replacing MITSUBISHI A003T09198 / A003TA3098 / A003TA3098A / a3t09198 / a3ta3098
Alternator NEW for MITSUBISHI Pajero 2.8D / TD engine 4M40-T
MITSUBISHI A003T09198 / A003TA3098 / A003TA3098A / a3t09198 / a3ta3098 / a3ta3098a / a3tb1399 / md200695 / me200695 / me201745 / me201837 / 202755
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:

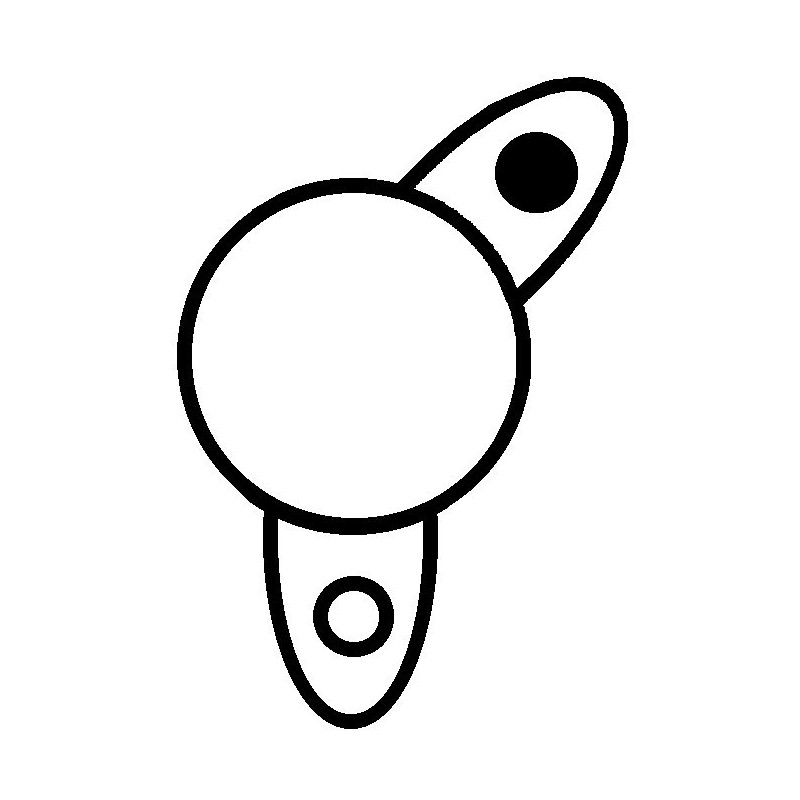

Physical Information | ||
|---|---|---|
| D | Bracket hole | 12.65 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 13.20 |
| E | Belt. adj. brackethole pos. | 3 |
| C | Mount. bracket dist | 54.60 |
| H | Pulley dia. | 74.40 |
| A | Pulley dist. | 42.00 |
| i | Grooves/pulley | 2 |
| j | Radius | 90.00 |
| j | Radius 2 | 87.00 |
| k | Position B + | M6 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL07 |
| R | Total length mm | 178.00 |
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |
Brand / wai
Replacing :
| 0986049880 |
| 12626N |
| 155538090 |
| 283536 |
| 283538 |
| 437697 |
| 5714SP |
| 8EL737597001 |
| 9090303F |
| 933875 |
| A003T09198 |
| A003T09199 |
| A003TA3098 |
| A003TA3098A |
| A3T09198 |
| A3T09199 |
| A3TA3098 |
| A3TA3098A |
| ALT5097sa |
| DRA3875 |
| HJA1376IR |
| JA1376IR |
| KTR311076180 |
| LRA01746 |
| LRA02741 |
| MD200695 |
| ME200695 |
| ME201745 |
| ME201837 |
| ME202755 |
| TRA258 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
