Alternator replacing DENSO 101211-7370 / TOYOTA 27060-70500
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 100 | |

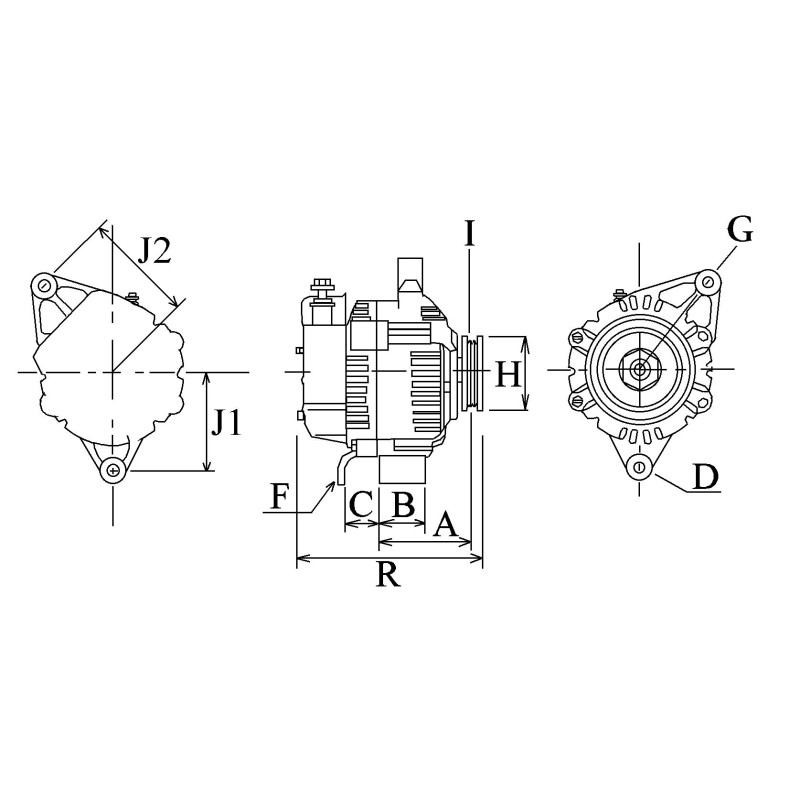

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 58.00 |
| E | Belt. adj. brackethole pos. | 4 |
| H | Pulley dia. | 59.00 |
| A | Pulley dist. | 90.00 |
| i | Grooves/pulley | 4 |
| j | Radius | 84.00 |
| j | Radius 2 | 84.00 |
| k | Position B + | M6 |
| n | Rotation | CW |

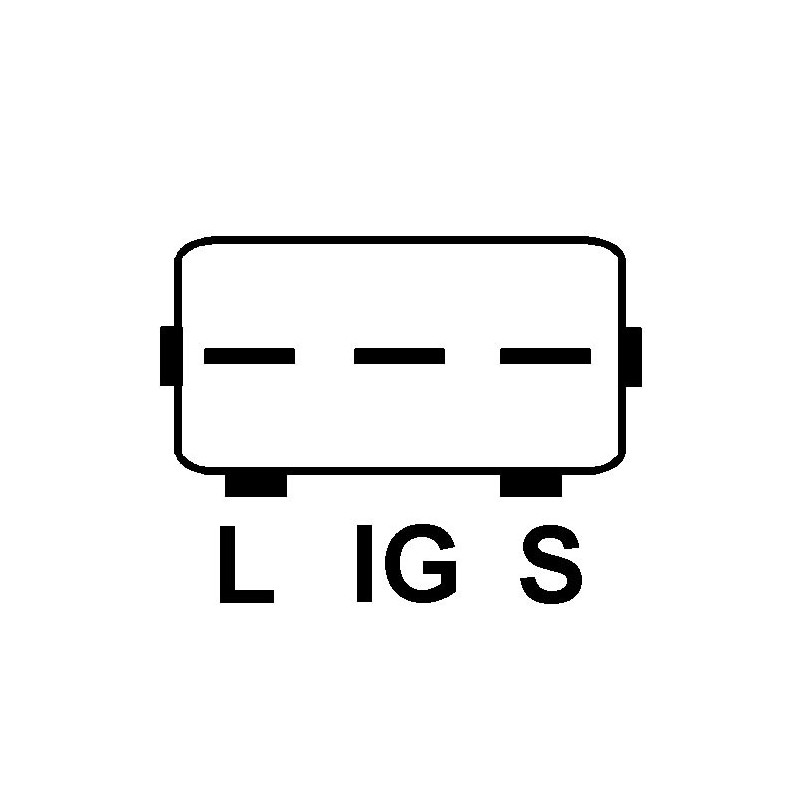

| o | Plug no. 1 | PL42 |
| R | Total length mm | 161.00 |
Replacing | |
|---|---|
| 101211-7370 | DENSO |
| 27060-70500 | TOYOTA |
| ca2022ir | HC-PARTS |
generic brand
Mounted on :
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IS | IS 200 | 2.0 | Unleaded | 2002 10 | - | 1G-FE | 114 | 155 | Break | SportCross | 1988 | 6 | GXE10 | |
| IS | IS 200 | 2.0 | Unleaded | 1999 04 | - | 1G-FE | 114 | 155 | 1988 | 6 | GXE10 |
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
