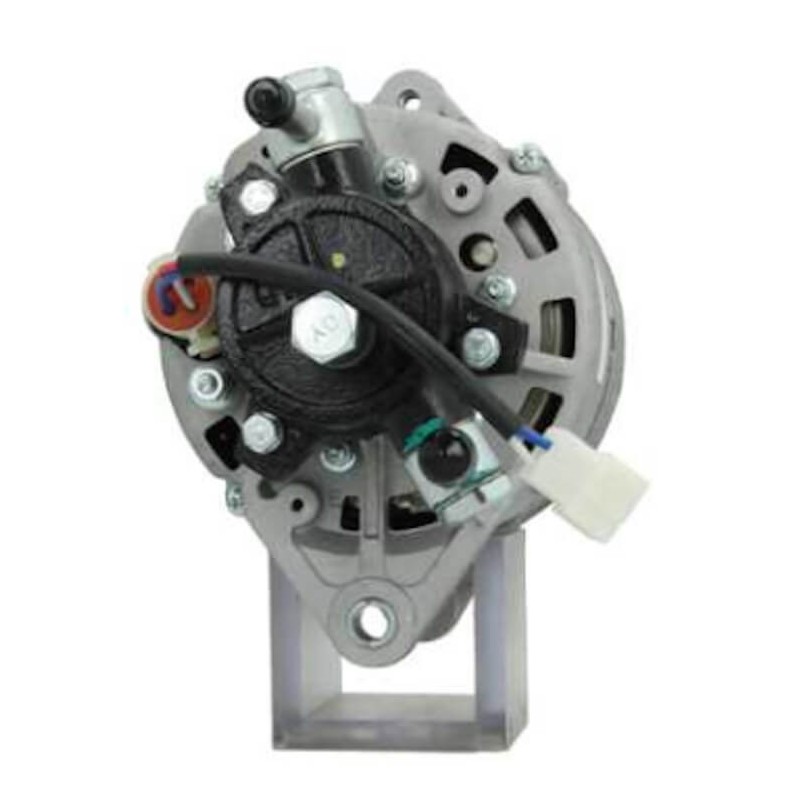

Alternator replacing HITACHI LR140-408 / LR140-402 / LR140- 130P

Information:

Voltage 14

Amp 40

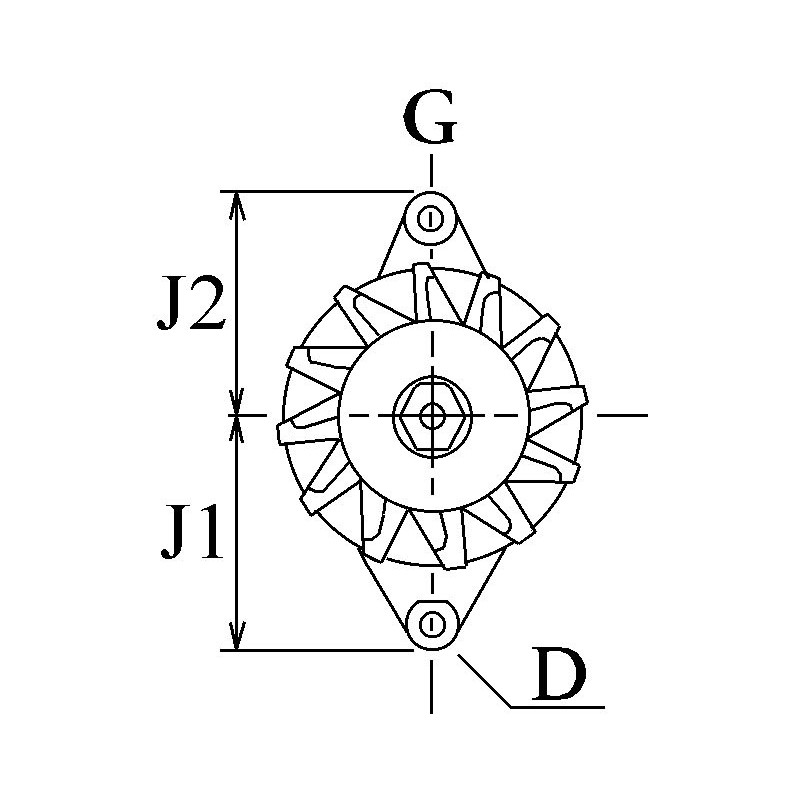

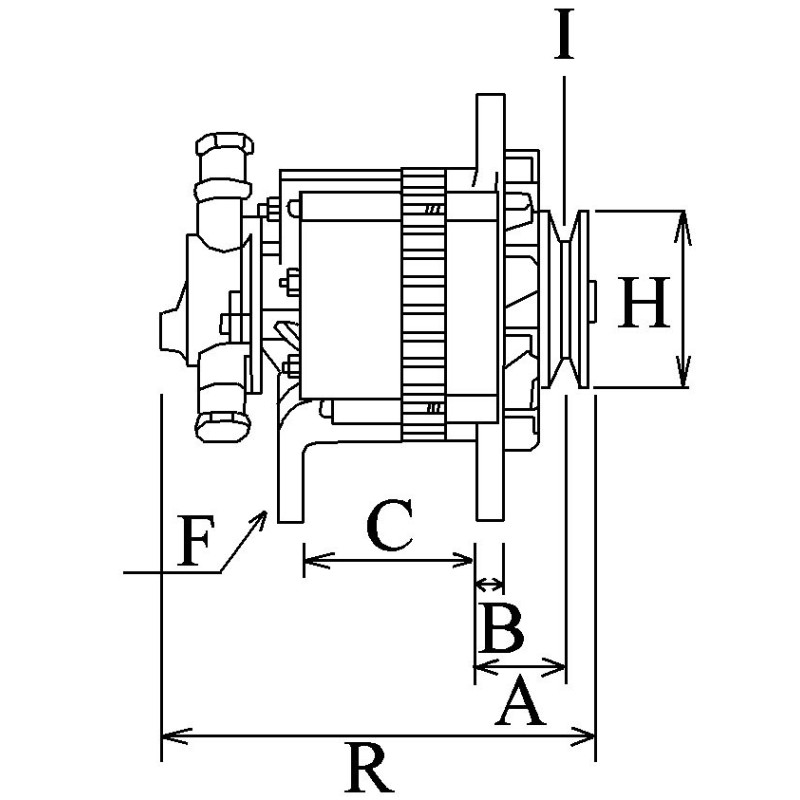

D = Bracket hole 10.35

G = Belt. adj. bracket hole 8.50

B = Width/holder arm 13.10

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 80.45

H = Pulley dia. 73.90

A = Pulley dist. 42.00

Grooves/pulley 1

J = Radius 89.00

J = Radius 84.00

Position B + M6

Rotation Cr

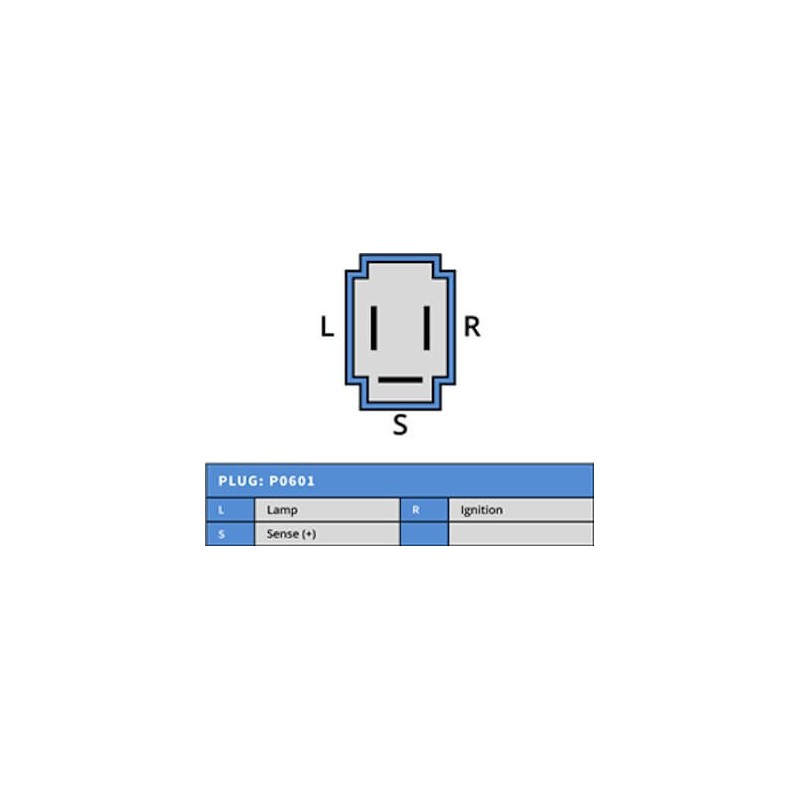

Plug no. 1 PL04

Fan Ef

Pulley Pulley

generic brand

replacing
