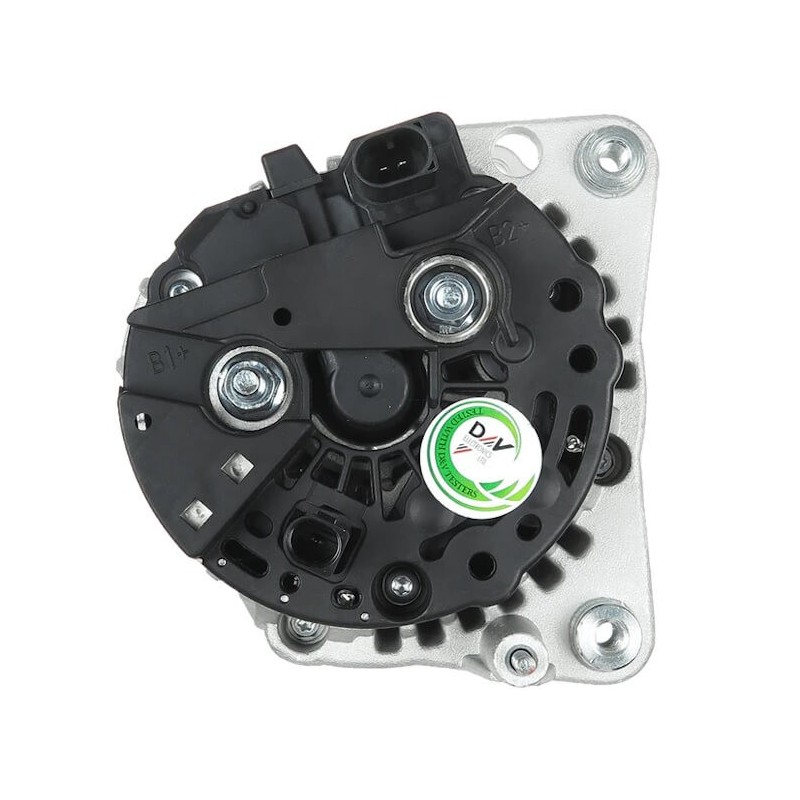

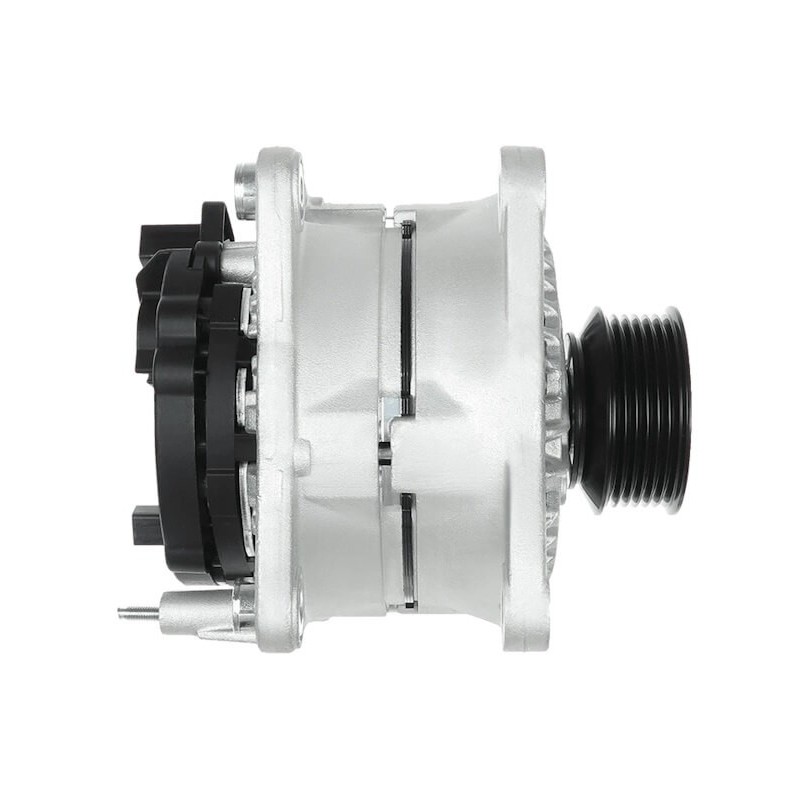

Alternator replacing 0124325021 / 0124325022 / 0124325035 / 0124325097
| 038903018 | Volkswagen | |
| 038903025M | Volkswagen | |
| 074903025M | Volkswagen | |
| 0986046050 | Bosch ruil | |
| 0986046540 | Bosch ruil | |
| 11204431 | Mahle | |
| 113834 | Cargo | |
| 113888 | Cargo | |
| 12201240 | AES | |
| 20130245 | Prestolite | |
| 283644 | Elstock | |
| 305515090 | PSH | |
| 38903018 | Volkswagen | |
| 440228 | Valeo |
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |
| Plug type | W | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 14.00 |
| E | Belt. adj. brackethole pos. | 45 |
| C | Mount. bracket dist | 59.00 |
| H | Pulley dia. | 67.50 |
| A | Pulley dist. | 39.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 89.50 |
| j | Radius 2 | 89.50 |
| k | Position B + | M8 |
| n | Rotation | Cr |

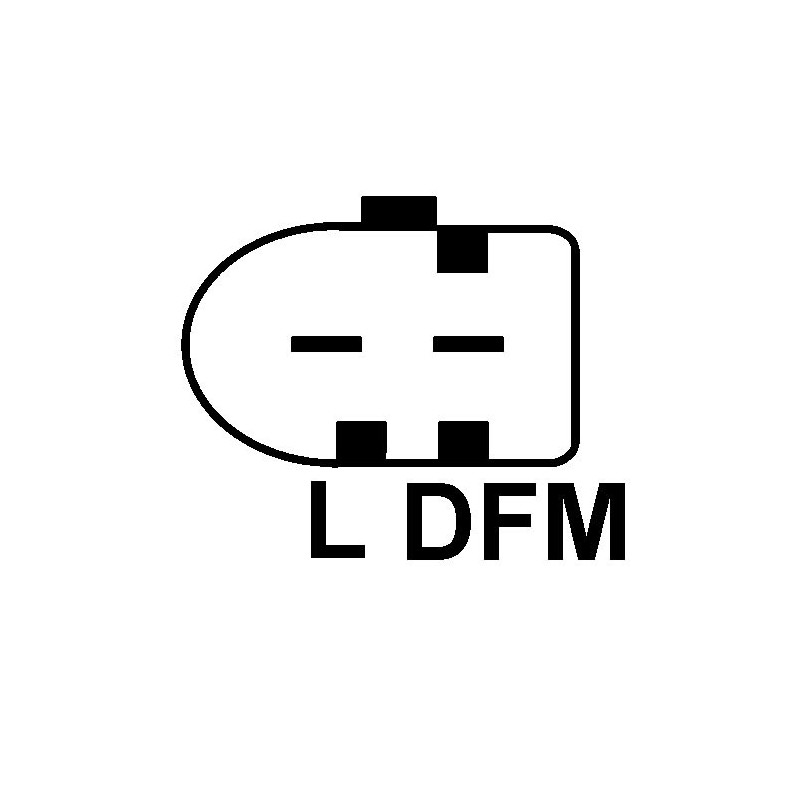

| o | Plug no. 1 | PL61 |
| Q | Tipo prise W | 2.80 |
| R | Total length mm | 188.00 |
Generic brand
replacing
| 0124325022 | Bosch |
| 0124325035 | Bosch |
| 0124325721 | Bosch |
| 038903018 | Volkswagen |
| 038903025M | Volkswagen |
| 074903025M | Volkswagen |
| 0986046050 | Bosch ruil |
| 0986046540 | Bosch ruil |
| 11204431 | Mahle |
| 113834 | Cargo |
| 113888 | Cargo |
| 12201240 | AES |
| 20130245 | Prestolite |
| 283644 | Elstock |
| 305515090 | PSH |
| 38903018 | Volkswagen |
| 440228 | Valeo |
| 63731587 | Magneti Marelli |
| ALT10370 | Wood Auto |
| CA1587IR | HC |
| DRA4116 | Remy |
| HCA1587IR | HC |
| IA1529 | Mahle |
| LRA01820 | Lucas |
| LRA1820 | Lucas |
| MG469 | Mahle |
| OAN11529 | Optimum |
| RNL4605 | RNL |
| WOOALT10370 | Wood Auto |
Mounted on :
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LT | LT 28-35 | 2.8 | Diesel | 1999 01 | - | ATA | TDi | 96 | 130 | Pick-up | 2799 | 4 | ||
| LT | LT 28-35 | 2.8 | Diesel | 1997 06 | 1998 12 | AGK | TDi | 92 | 125 | Pick-up | 2799 | 4 | ||
| LT | LT 28-35 | 2.8 | Diesel | 1997 06 | 1998 12 | AGK | TDi | 92 | 125 | Boîte/Trucksnette | 2799 | 4 | ||
| LT | LT 28-35 | 2.8 | Diesel | 1999 01 | - | ATA | TDi | 96 | 130 | Boîte/Trucksnette | 2799 | 4 | ||
| Polo | Polo | 1.9 | Diesel | 1996 07 | 1999 12 | AGD | SDi | 47 | 64 | Boîte/Trucksnette | 1896 | 4 | 6NF | |
| Polo | Polo | 1.9 | Diesel | 1999 10 | 2001 09 | AEF | Diesel | 47 | 64 | Hayon | 1896 | 4 | ||
| Polo | Polo | 1.9 | Diesel | 1994 10 | 1999 12 | AEF | Diesel | 47 | 64 | Boîte/Trucksnette | 1896 | 4 | ||
| Polo | Polo | 1.9 | Diesel | 1999 10 | 2001 09 | AGD | SDi | 47 | 64 | Hayon | 1896 | 4 | 6N2 | |
| Trans r | Trans r | 2.5 | Diesel | 1995 09 | 2003 04 | ACV | TDi | 75 | 102 | De bus | T4 | 2461 | 5 | |
| Trans r | Trans r | 2.5 | Diesel | 1995 09 | 2004 03 | ACV | TDi | 75 | 102 | Boîte/Trucksnette | T4 | 2461 | 5 |
| Trans r | Trans r | 2.5 | Diesel | 1995 09 | 2004 03 | ACV | TDi | 75 | 102 | Pick-up | T4 | 2461 | 5 |
Data sheet
| Poulie | serpentine |
| Connecteur régulateur | PL6 |
| Ampérage | 140 |
| Voltage | 14 |
