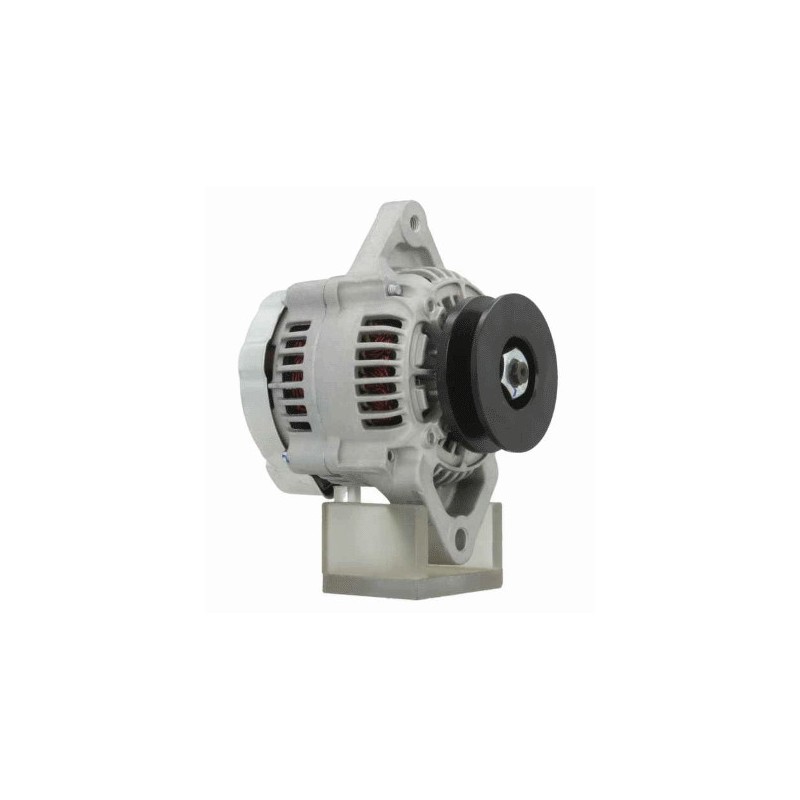

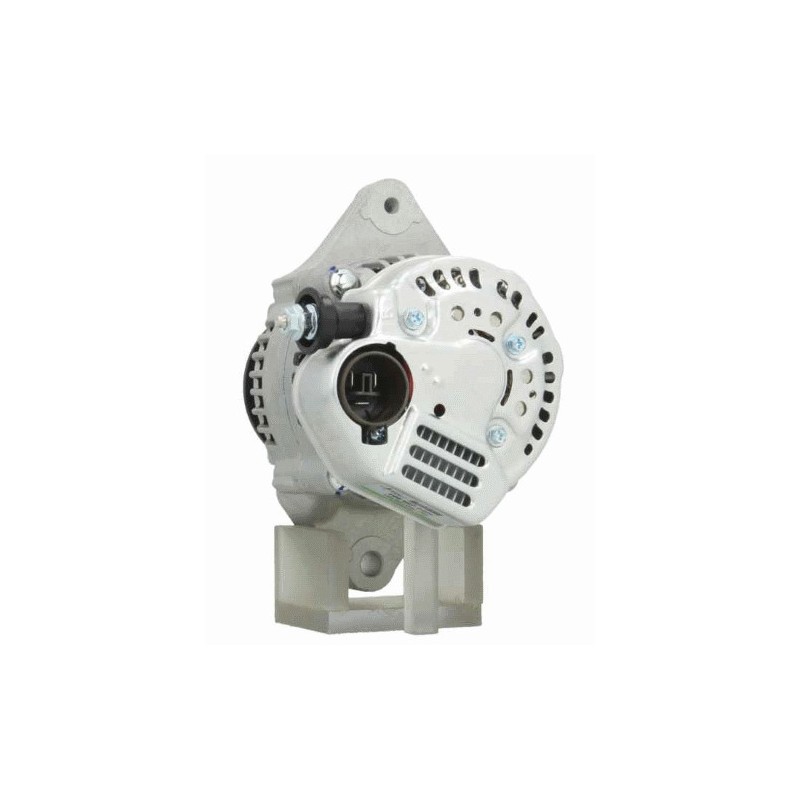

Alternator replacing TOYOTA 27060-78003-71 / 27060-78003 / DENSO 100211-4540
for Chariot élévateur 2FG/4SG/5FD
Alternator for TOYOTA forklift models 6FDL 10 / 5FDL 10 / 6FGL 14 / 6FDL 15 / 5FDL 18 / 5FGL 23 / 6FG 28 / 2FGL 7
Various configurations exist for this type of equipment; you must compare your original part number with the one listed in the description to ensure a correct match
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Information:
Voltage 14
Amp 35
D = Bracket hole 10.00
G = Belt. adj. bracket hole M8
B = Width/holder arm 24.10
E = Belt. adj. brackethole pos. 60
H = Pulley dia. 74.50
A = Pulley dist. 44.00
Grooves/pulley 1
J = Radius 68.30
J = Radius 65.50
Position B + M6
Rotation Cr
Plug no. 1 PL12
Fan If
Pulley Pulley
R = Total length mm 143.25
MARQUE générique
= Reference :
| 1002114540 |
| 1002114540+ |
| 195527040 |
| 195527040050 |
| 195527040055 |
| 195527040265 |
| 195527040550 |
| 2706078003 |
| 270607800371 |
| 2706078152 |
| 270607815271 |
| 27060UB050 |
| 5460SP |
| 90294540 |
| 90295181 |
| ALT6021sa |
| ALT6057sa |
| ATA476 |
| DRA3519 |
| JA970IR |
| KTR391054080 |
| LRA01719 |
fits:
| Brand from fabrique | Model | Year |
|---|---|---|
| TOYOTA | 2FG-7 | |
| TOYOTA | 2FG-9 | |
| TOYOTA | 2FGL-7 | |
| TOYOTA | 2FGL-9 | |
| TOYOTA | 4SG-10 | |
| TOYOTA | 4SG-12 | |
| TOYOTA | 4SG-15 | |
| TOYOTA | 5FD-10 | |
| TOYOTA | 5FD-14 | |
| TOYOTA | 5FD-15 | |
| TOYOTA | 5FD-18 | |
| TOYOTA | 5FD-20 | |
| TOYOTA | 5FD-23 | |
| TOYOTA | 5FD-25 | |
| TOYOTA | 5FDL-10 | |
| TOYOTA | 5FDL-14 | |
| TOYOTA | 5FDL-15 | |
| TOYOTA | 5FDL-18 | |
| TOYOTA | 5FDL-20 | |
| TOYOTA | 5FDL-23 | |
| TOYOTA | 5FDL-25 | |
| TOYOTA | 5FG-10 | 01.1989- |
| TOYOTA | 5FG-14 | 01.1989- |
| TOYOTA | 5FG-15 | 01.1989- |
| TOYOTA | 5FG-18 | 01.1989- |
| TOYOTA | 5FG-20 | 01.1989- |
| TOYOTA | 5FG-23 | 01.1989-01.1993 |
| TOYOTA | 5FG-25 | 01.1989-01.1993 |
| TOYOTA | 5FG-28 | |
| TOYOTA | 5FG-30 | |
| TOYOTA | 5FGL-14 | 01.1986- |
| TOYOTA | 5FGL-15 | 01.1986- |
| TOYOTA | 5FGL-18 | 01.1986- |
| TOYOTA | 5FGL-20 | 01.1989- |
| TOYOTA | 5FGL-23 | 01.1989- |
| TOYOTA | 5FGL-25 | |
| TOYOTA | 5FGL10 | 01.1986- |
| TOYOTA | 6FDL-10 | |
| TOYOTA | 6FDL-14 | |
| TOYOTA | 6FDL-15 | |
| TOYOTA | 6FDL-18 | |
| TOYOTA | 6FDL-20 | |
| TOYOTA | 6FDL-23 | |
| TOYOTA | 6FDL-25 | |
| TOYOTA | 6FG-10 | |
| TOYOTA | 6FG-14 | |
| TOYOTA | 6FG-15 | |
| TOYOTA | 6FG-18 | |
| TOYOTA | 6FG-20 | |
| TOYOTA | 6FG-23 | |
| TOYOTA | 6FG-25 | |
| TOYOTA | 6FG-28 | |
| TOYOTA | 6FG-30 | |
| TOYOTA | 6FGL-14 | |
| TOYOTA | 6FGL-15 | |
| TOYOTA | 6FGL-18 | |
| TOYOTA | 6FGL-20 | |
| TOYOTA | 6FGL-23 | |
| TOYOTA | 6FGL-25 |
NO CORE EXCHANGE NEEDED E
TWO YEARS WARRANTY
| Brand | Model | Type | Year |
| TOYOTA | 6FG 10 | - | |
| TOYOTA | 5FGL 10 | 01/01/86 | |
| TOYOTA | 6FDL 10 | - | |
| TOYOTA | 5FD 10 | - | |
| TOYOTA | 5FDL 10 | - | |
| TOYOTA | 4SG 10 | - | |
| TOYOTA | 5FG 10 | 01/01/89 | |
| TOYOTA | 4SG 12 | - | |
| TOYOTA | 6FDL 14 | - | |
| TOYOTA | 5FD 14 | - | |
| TOYOTA | 6FGL 14 | - | |
| TOYOTA | 5FDL 14 | - | |
| TOYOTA | 5FGL 14 | 01/01/86 | |
| TOYOTA | 6FG 14 | - | |
| TOYOTA | 5FG 14 | 01/01/89 | |
| TOYOTA | 5FDL 15 | - | |
| TOYOTA | 4SG 15 | - | |
| TOYOTA | 5FGL 15 | 01/01/86 | |
| TOYOTA | 6FG 15 | - | |
| TOYOTA | 5FG 15 | 01/01/89 | |
| TOYOTA | 6FDL 15 | - | |
| TOYOTA | 5FD 15 | - | |
| TOYOTA | 6FGL 15 | - | |
| TOYOTA | 5FD 18 | - | |
| TOYOTA | 6FDL 18 | - | |
| TOYOTA | 6FGL 18 | - | |
| TOYOTA | 5FDL 18 | - | |
| TOYOTA | 5FGL 18 | 01/01/86 | |
| TOYOTA | 6FG 18 | - | |
| TOYOTA | 5FG 18 | 01/01/89 | |
| TOYOTA | 5FD 20 | - | |
| TOYOTA | 6FDL 20 | - | |
| TOYOTA | 6FGL 20 | - | |
| TOYOTA | 5FDL 20 | - | |
| TOYOTA | 5FGL 20 | 01/01/89 | |
| TOYOTA | 6FG 20 | - | |
| TOYOTA | 5FG 20 | 01/01/89 | |
| TOYOTA | 5FG 23 | 01.1989 - 01.1993 | |
| TOYOTA | 5FD 23 | - | |
| TOYOTA | 6FDL 23 | - | |
| TOYOTA | 6FGL 23 | - | |
| TOYOTA | 5FDL 23 | - | |
| TOYOTA | 5FGL 23 | 01/01/89 | |
| TOYOTA | 6FG 23 | - | |
| TOYOTA | 5FD 25 | - | |
| TOYOTA | 6FDL 25 | - | |
| TOYOTA | 6FGL 25 | - | |
| TOYOTA | 5FDL 25 | - | |
| TOYOTA | 5FGL 25 | - | |
| TOYOTA | 6FG 25 | - | |
| TOYOTA | 5FG 25 | 01.1989 - 01.1993 | |
| TOYOTA | 6FG 28 | - | |
| TOYOTA | 5FG 28 | - | |
| TOYOTA | 6FG 30 | - | |
| TOYOTA | 5FG 30 | - | |
| TOYOTA | 2FG 7 | - | |
| TOYOTA | 2FGL 7 | - | |
| TOYOTA | 2FG 9 | - | |
| TOYOTA | 2FGL 9 | - |
