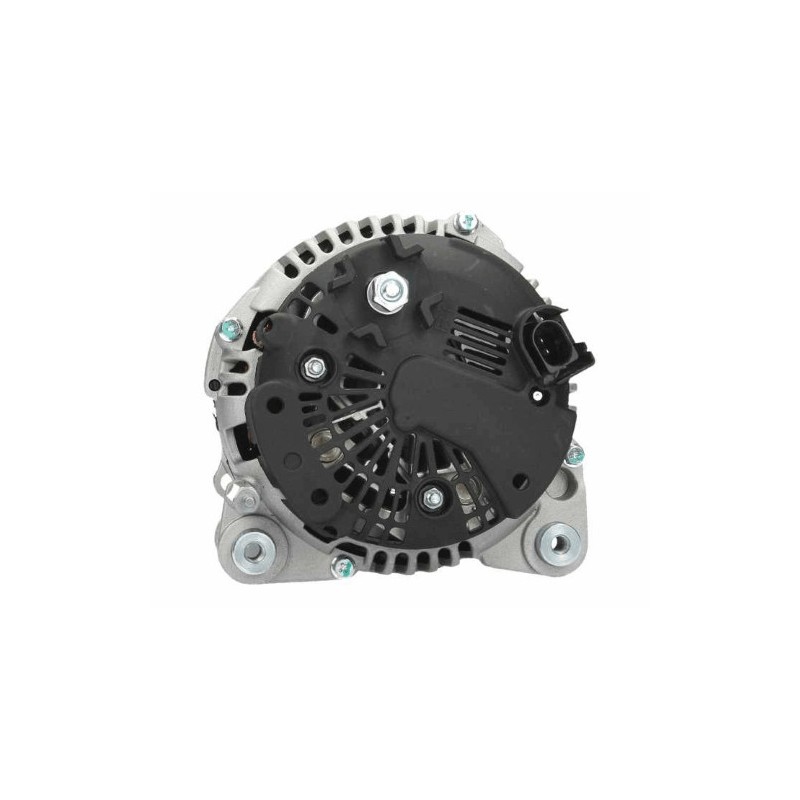

Alternator replacing FG18T033 / 2605717A / 0124625028 / 022903028B / 03G903023X

Display all pictures

Alternator replacing FG18T033 / 2605717A / 0124625028 / 022903028B / 03G903023X

Reference: w114109

Condition: New product

2 Item Items

Replacing
0124625028	Bosch
022903028B	Volkswagen
03G903023X	Volkswagen
03L903023E	Volkswagen
03L903024J	Volkswagen
2605717	Valeo
2605717A	Valeo
CA1912IR	HC-PARTS
FG18T033	Valeo

More info

More info

Physical information
A	Pulley dist.	39.00
B	Width/holder arm	14.50
C	Mount. bracket dist.	60.60
D	Bracket hole	9.70
E	Belt. adj. brackethole pos.	45
G	Belt. adj. bracket hole	9.70
H	Pulley dia.	56.00
I	Grooves/pulley	6
J	Radius	89.50
J	Radius 2	89.50
K	B+	M8
K	Position/B+ in min.	50
N	Rotation	CW
O	Plug no. 1	PL61
R	Total length mm	190.00

Electrical information
	Voltage	14
	Amp	180

generic brand
