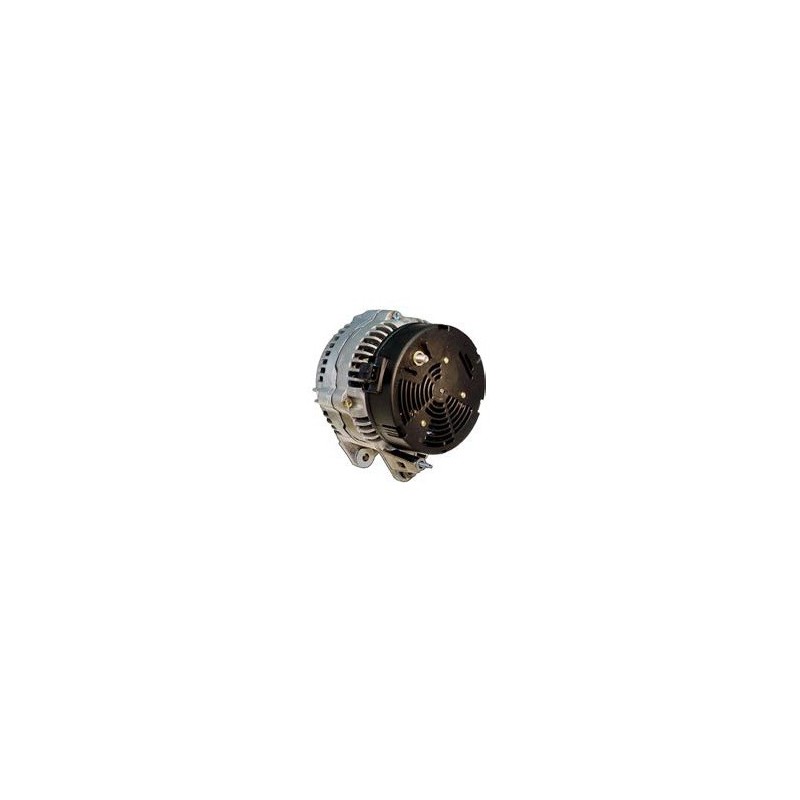

Alternator replacing BOSCH 0123515020 / 0123515017

Information :

Voltage 14

Amp 120

D = Bracket hole 8.50

G = Belt. adj. bracket hole 8.50

B = Width/holder arm 14.10

E = Belt. adj. brackethole pos. 45

C = Mount. bracket dist 59.00

J = Radius 90.00

J = Radius 90.00

Position B + M8

Rotation Cr

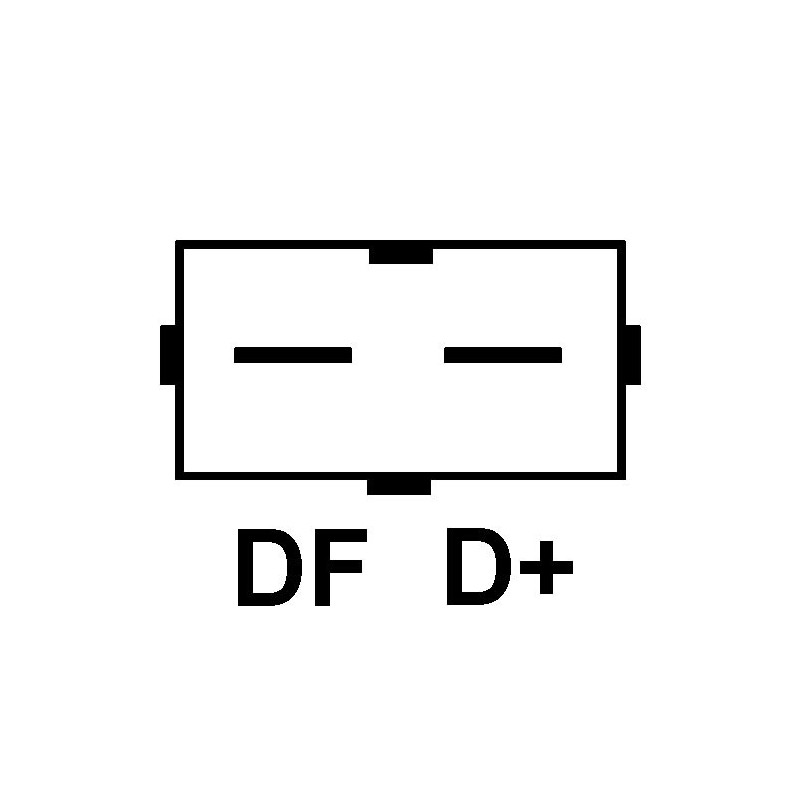

Plug no. 1 PL45

Fan If

Pulley Without

R = Total length mm 200.00

= BOSCH 0123515020 / 0123515017 / 0986041300

= DELCO REMY DRB1300

= FORD 97VW10300EA / 1076005

= HELLA 8EL737423001

= LUCAS LRB00389

= VOLKSWAGEN 028903026g

= 2205088B / 282834 / 305529120 / 437548 / 437656 / 90156329

                       NO CORE EXCHANGE NEEDED

                                             TWO YEARS WARRANTY
