Alternator replacing VALEOTG17C022 / TG17C020 / 2542784C

Display all pictures

Alternator VALEO TG17C022 / TG17C020

Reference: w205523180

Condition: New product

1 Item Items

Alternator NEW VALEO forAUDI / VOLKSWAGEN

= 059903015R / 059903015RX / 059903017K / 06C903016J

= DRA0144 / 8EL738211811 / 9090379F / 9090400F / LRA02364

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY

More info

More info

Physical Information
D	Bracket hole	8.50
G	Belt. adj. bracket hole	8.50
B	Width/holder arm	14.00
E	Belt. adj. brackethole pos.	45
C	Mount. bracket dist	60.80
H	Pulley dia.	56.00
A	Pulley dist.	30.00
i	Grooves/pulley	6
j	Radius	90.00
j	Radius 2	90.00
k	Position B +	M8
n	Rotation	Cr

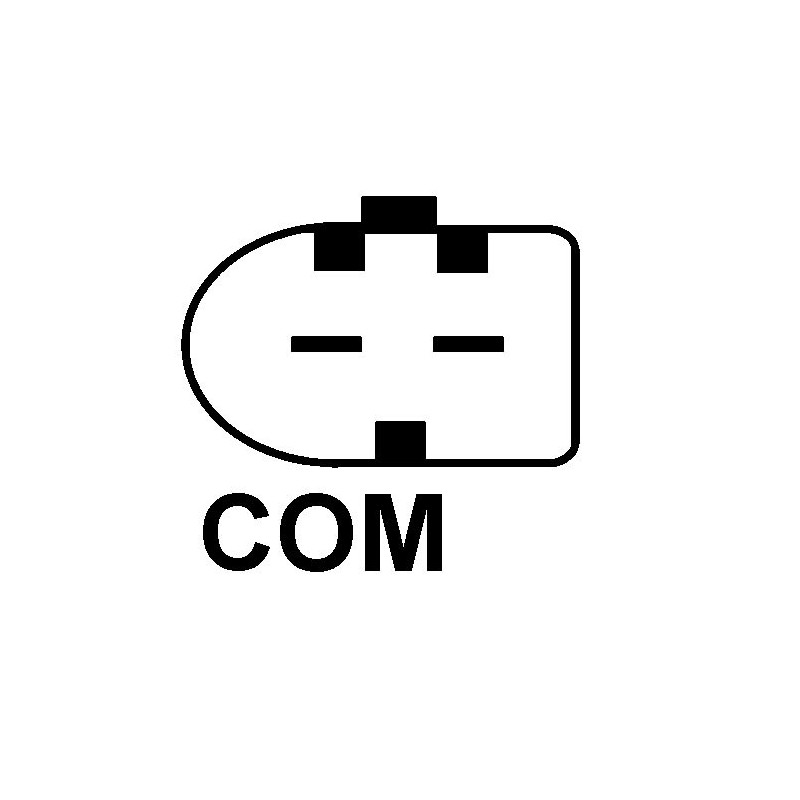

o	Plug no. 1	PL86
R	Total length mm	182.00

Electrical Information
Voltage		14
Amp		180

Replacing
0121715020	BOSCH
0986080090	BOSCH
059903015R	VOLKSWAGEN
059903017k	VOLKSWAGEN
06C903016J	VOLKSWAGEN
2542784	VALEO
2542784A	VALEO
2542784B	VALEO
2542784C	VALEO
437507	VALEO
437535	VALEO
439527	VALEO
439541	VALEO
ca1937ir	HC-PARTS
TG17C020	VALEO
TG17C022	VALEO
