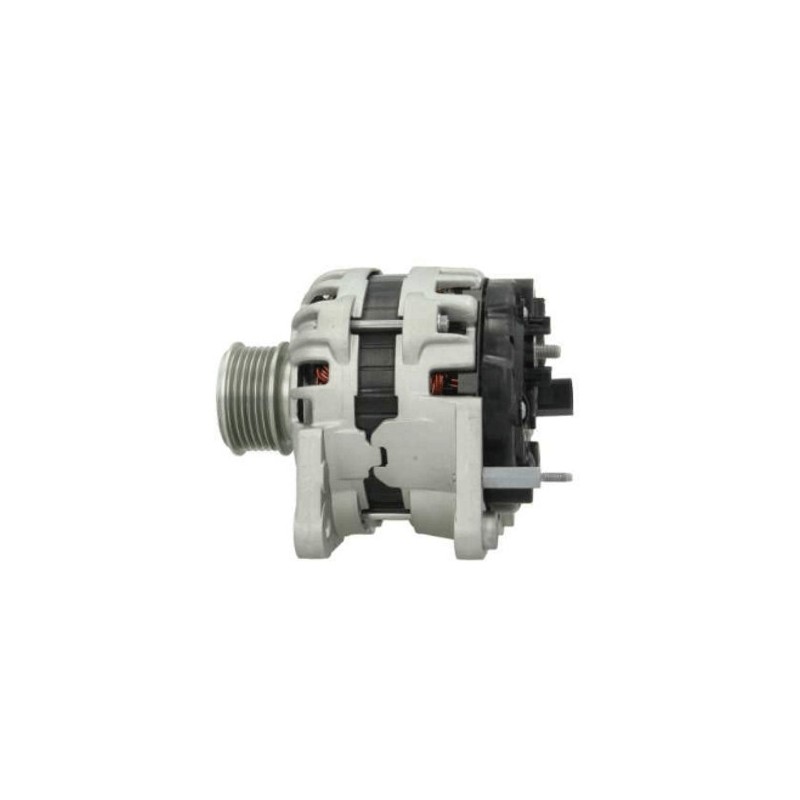

Alternator replacing BOSCH 0124325083 / 0124325130

Information:

Voltage 14

Amp 110

D = Bracket hole 8.50

G = Belt. adj. bracket hole 8.50

B = Width/holder arm 14.50

E = Belt. adj. brackethole pos. 45

C = Mount. bracket dist 62.00

H = Pulley dia. 56.00

A = Pulley dist. 39.50

Grooves/pulley 6

J = Radius 90.00

J = Radius 90.00

Position B + M8

Rotation Cr

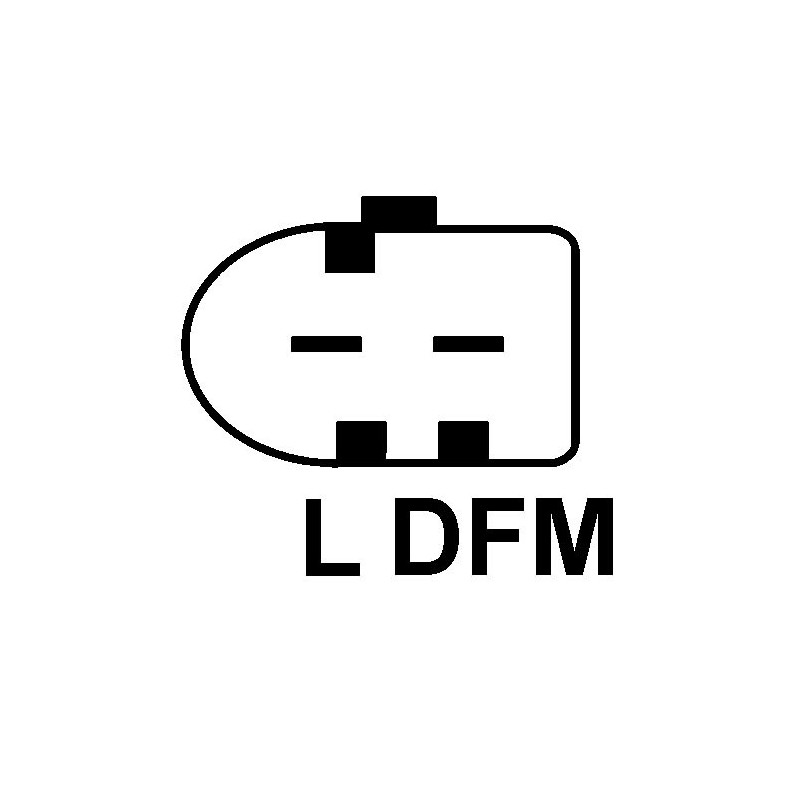

Plug no. 1 PL61

Fan If

Pulley Serpentine Pulley/ Freewheel pulley

= BOSCH 0124325083 / 0124325130 / 0986045390

= DELCO REMY DRB5390

= VALEO 2542730 / TG11C017 / 437470 / 439501

= VOLKSWAGEN 06F903023D / 06F903023E / 06F903023EX

  generic brand

fits:

-AUDI A3

 - SEAT Altea / Cordoba / Leon

 - SKODA Octavia

 - VW Golf V / Touran / Crafter 30 and 35 / Jetta III

                                 NO CORE EXCHANGE NEEDED

                                                  TWO YEARS WARRANTY
