Solenoid BOSCH for starter BOSCH 0001223013

Display all pictures

Solenoid BOSCH for starter BOSCH 0001223013

Reference: w333547

Condition: New product

1 Item Items

Solenoid replacing BOSCH 6033ad0312 / 2339303448

= ZM zm-2479

le relay adaptable under the reference w231653

More info

More info

Information:

Brand BOSCH

Electrical Information
Voltage		12

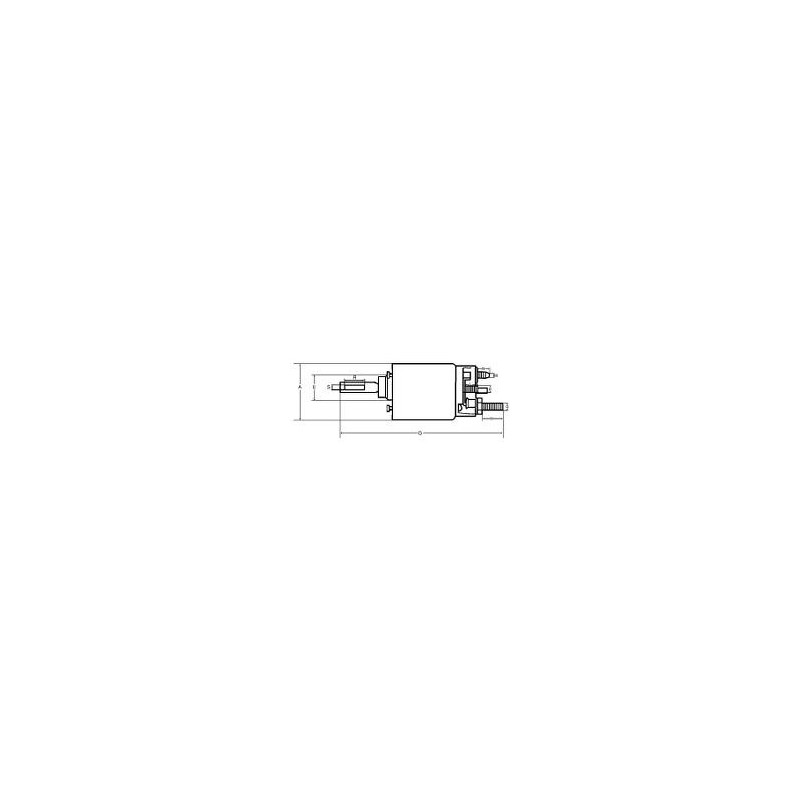

Physical Information
A	DE mm	61.35
B	Total length mm	172.35

Support
M	Bolt Coil	M10
D	OD/cover mm	54.10
E	DI capot mm	30.10
G	B+	M10
H	Height/B+	24.85
K	Kl. 50/mm	6.30
N	Bolt Coil l.	23.80
L	Height/kl. 50	14.00

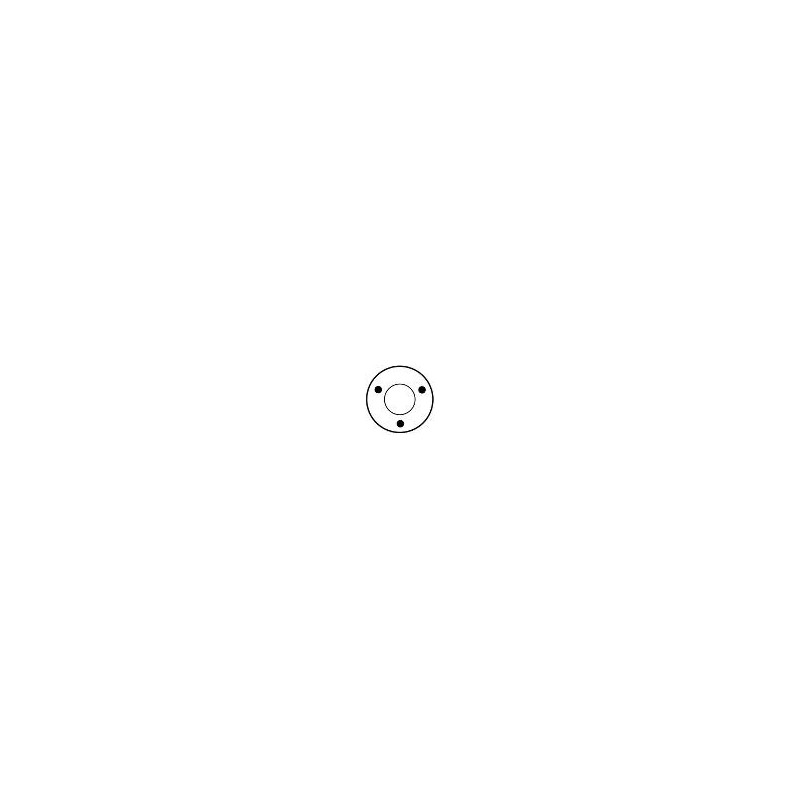

No./terminals		3

Replacing
2339402143	BOSCH
6033ad4031	BOSCH
zm-8640	ZM

For starter :

BOSCH 0 001 223 013
DAF 1516685R
FIAT 1329201080, 1349920080, 46758240, 80296470
IVECO 1329201080, 1349920080, 8029647
MAGNETI MARELLI 063522230130
PRESTOLITE 20510188
PSA PEUGEOT CITROEN 5802 Z0, 5802 Z3

Mounted on :

CITROEN - Europe (2000-2007)
FIAT - Europe (1994-2007)
FIAT LCV - Europe (2000-2005)
PEUGEOT - Europe (2000-2006)
