Solenoid for starter BOSCH 0001108113 / 0001108114 / 0001108174

Display all pictures

Solenoid for starter BOSCH 0001108113 / 0001108114 / 0001108174

Reference: w136852

Condition: New product

1 Item Items

Contacteur / Relay / Solenoid for starter BOSCH 0001108113 / 0001108114 / 0001108174 / 0001108175 / 0001108220 / 0001108221 / 0001110122 / 0001110123 / 0001110126 / 0001110127

More info

More info

Information:

Electrical Information
Voltage		12

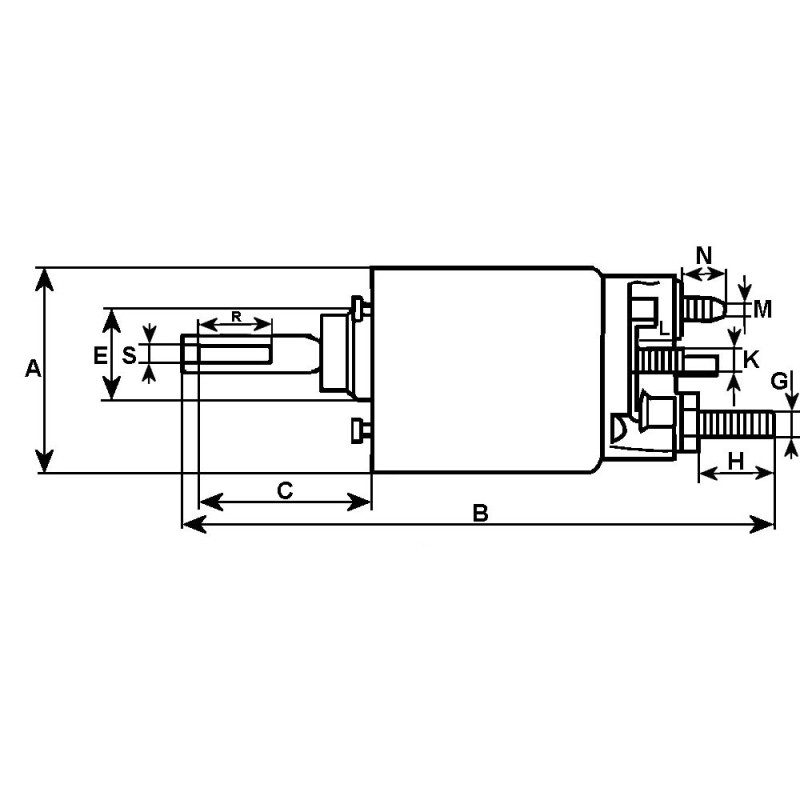

Physical Information
A	DE mm	56.45
B	Total length mm	123.80

Support
M	Bolt Coil	M8
D	OD/cover mm	49.25
E	DI capot mm	27.25
G	B+	M8
H	Height/B+	19.50
K	Kl. 50/mm	6.30
N	Bolt Coil l.	9.25
L	Height/kl. 50	13.90
No./terminals		3

Replacing
0331303145	BOSCH
0331303229	BOSCH
2339303229	BOSCH
2339303248	BOSCH
2339303291	BOSCH
2339303324	BOSCH
2339303407	BOSCH

for starter BOSCH:

0001108113

0001108114

0001108174

0001108175

0001108220

0001108221

0001110122

0001110123

0001110126

0001110127

Autres starter :

AUDI / VOLKSWAGEN 078-911-023 / 078-911-023B / 078-911-023D / 078-911-023DX / 078-911-023X / 78911023

MAGNETI MARELLI 943253150010 / 944280183400

Mounted on :

Audi (1992-2006) ,AUDI - China (1996-2008) ,AUDI - Europe (1990-2006) , SKODA - Europe (2001-2008) , VOLKSWAGEN (1998-2005) , VOLKSWAGEN - China (2001-2009) , VOLKSWAGEN - Europe (1996-2005)
