Solenoid BOSCH 2339303839 / 2339303306 / 2339303294 / 2339303202

Display all pictures

Solenoid BOSCH 2339303839 / 2339303306 / 2339303294 / 2339303202

Reference: w333601

Condition: New product

2 Item Items

for starter

0001107030	BOSCH
0001107075	BOSCH
0001107079	BOSCH
0001109034	BOSCH
0001110132	BOSCH
B001110240	BOSCH

More info

More info

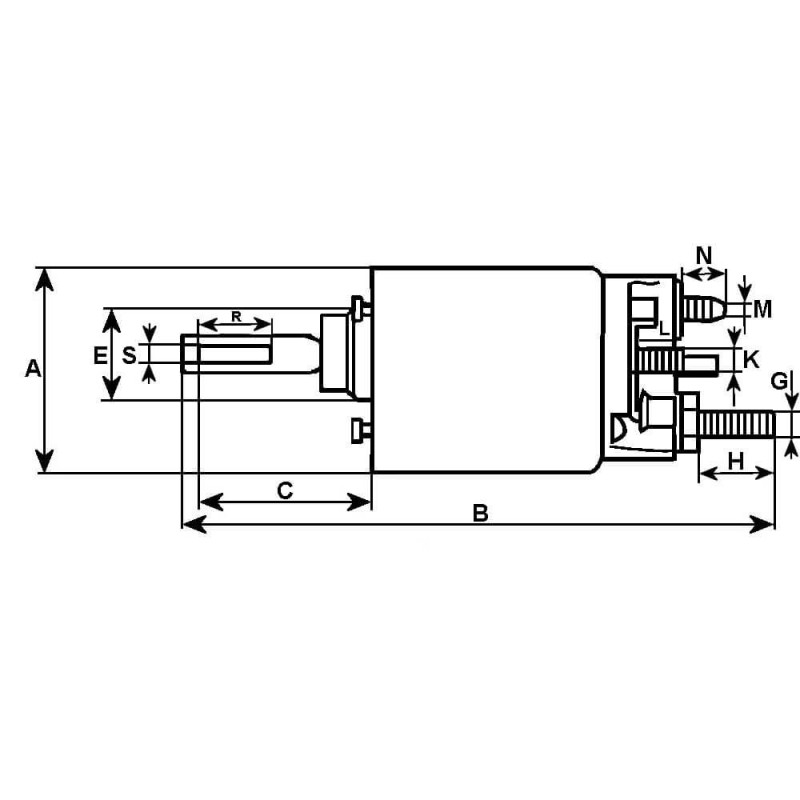

Physical information
A	OD mm	56.50
B	Total length mm	92.30
	No./mount. holes	3
H	Mount. hole 2	M5
H	Mount. hole 3	M5
	Source	Bosch

Plunger information
Q	Length mm	59.20
	Fork Lever	w/o
S	ID/eye	4.60

Bracket information
D	OD/cover mm	49.80
F	Switch measurement	10.60
G	B+	M8
	Height/B+	13.80
M	Coil bolt	M8
	No./terminals	3

Plug

null
	Terminal 50/mm

Electrical information
	Voltage	12

Replacing
1986SE1668	Bosch
2339303202	Bosch	BOM
2339303294	Bosch	BOM
2339303306	Bosch	BOM
2339303839	Bosch
ZM-978	Zm
