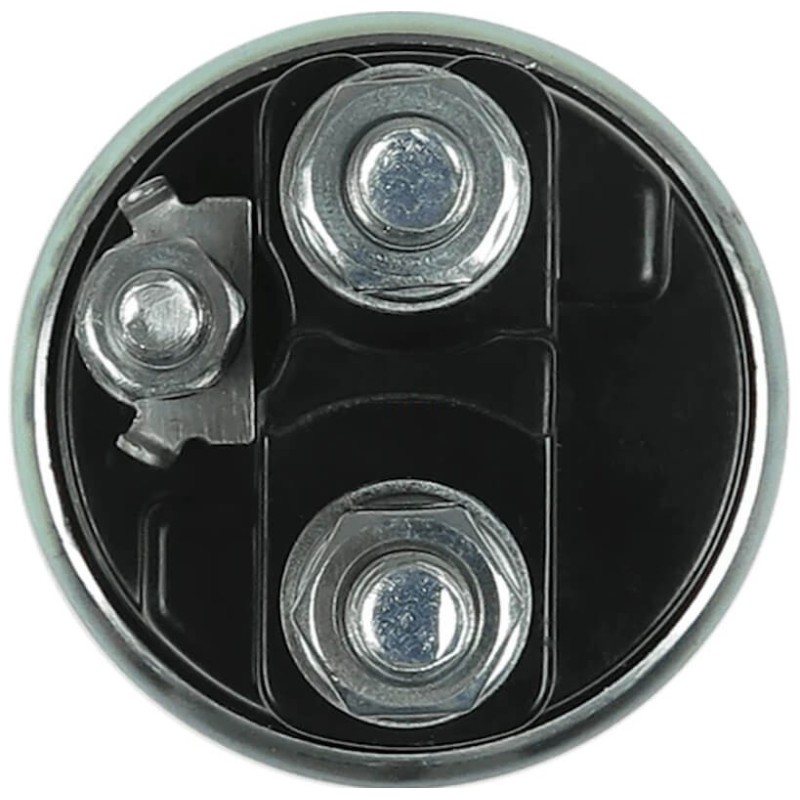

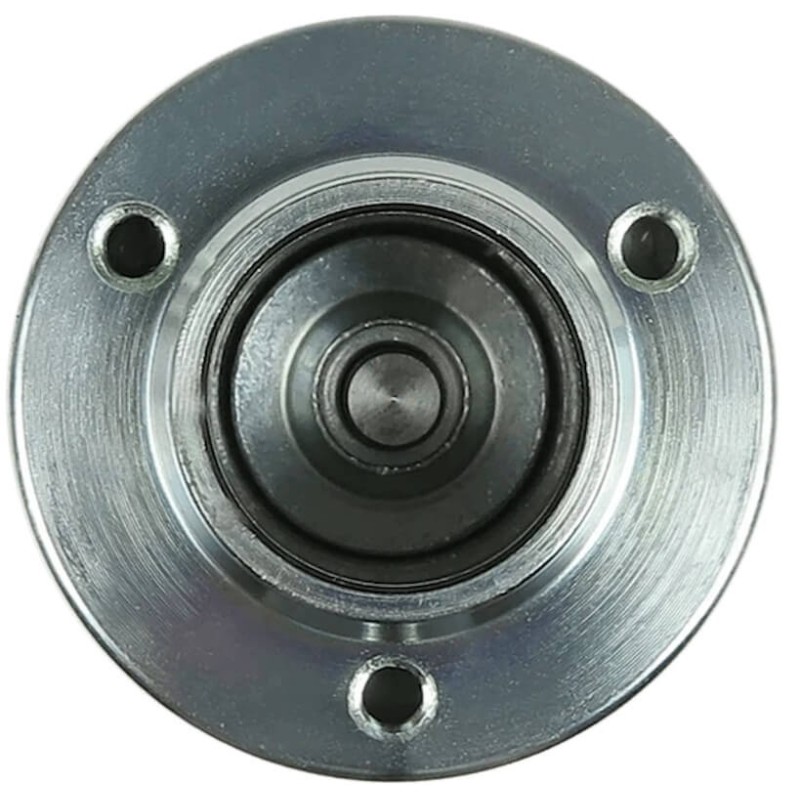

Solenoid for starter BOSCH 0001108202 / 0001108204 / 0001108224

Display all pictures

Solenoid for starter BOSCH 0001108202 / 0001108204 / 0001108224

Reference: W333998

Condition: New product

1 Item Items

Relay / Solenoid for starter BOSCH 0001107411 / 0001107425 / 0001107426 / 0001107478 / 0001107479 / 0001107490 / 0001107491 / 0001108202 / 0001108204 / 0001108224

le BOSCH is under the reference w234903

More info

More info

Information:

generic brand

Electrical Information
Voltage		12

Physical Information
A	DE mm	52.40
B	Total length mm	137.00

Support
M	Bolt Coil	M8
D	OD/cover mm	50.30
E	DI capot mm	41.00
F	Meone interContact breaker	11.30
G	B+	M8
H	Height/B+	21.00
K	Kl. 50/mm	M6
N	Bolt Coil l.	9.00
L	Height/kl. 50	10.00
No./terminals		3

Replacing
2339305004	BOSCH
2339305017	BOSCH
2339305048	BOSCH
2339305100	BOSCH
2339305232	BOSCH
235282	CARGO

for starter BOSCH :

0001107411

0001107425

0001107426

0001107478

0001107479

0001107490

0001107491

0001108202

0001108204

0001108224
