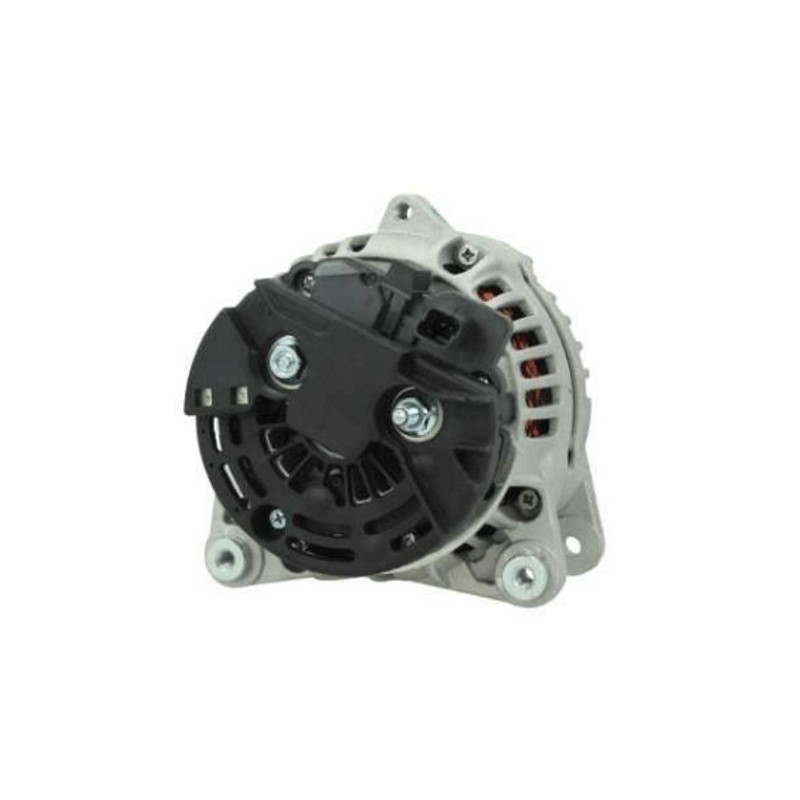

Alternator replacing 0124525047 / 7711135942 / 8200229907
| 0986046280 | Bosch ruil | |
| 114353 | Cargo | |
| 12046280 | EuroTec | |
| 2205025A | PIC | |
| 2301971502 | DRI | |
| 23368 | Lucas | |
| 284874 | Elstock | |
| 32046280 | Herth Buss | |
| 440235 | Valeo | |
| 4686 | CEVAM | |
| 56901 | EAI | |
| 575580150 | PSH | |
| 6313SP | Spidan | |
| 63731863 | Magneti Marelli | |
| 7711135942 | Renault | |
| 8200229907 | Renault |
More info
Physical information | ||
|---|---|---|
| A | Pulley dist. | 33.00 |
| B | Width/holder arm | 14.20 |
| C | Mount. bracket dist. | 60.20 |
| D | Bracket hole | 8.50 |
| E | Belt. adj. brackethole pos. | 15 |
| G | Belt. adj. bracket hole | 8.50 |
| H | Pulley dia. | 49.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 90.00 |
| J | Radius 2 | 90.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 7 |
| N | Rotation | CW |

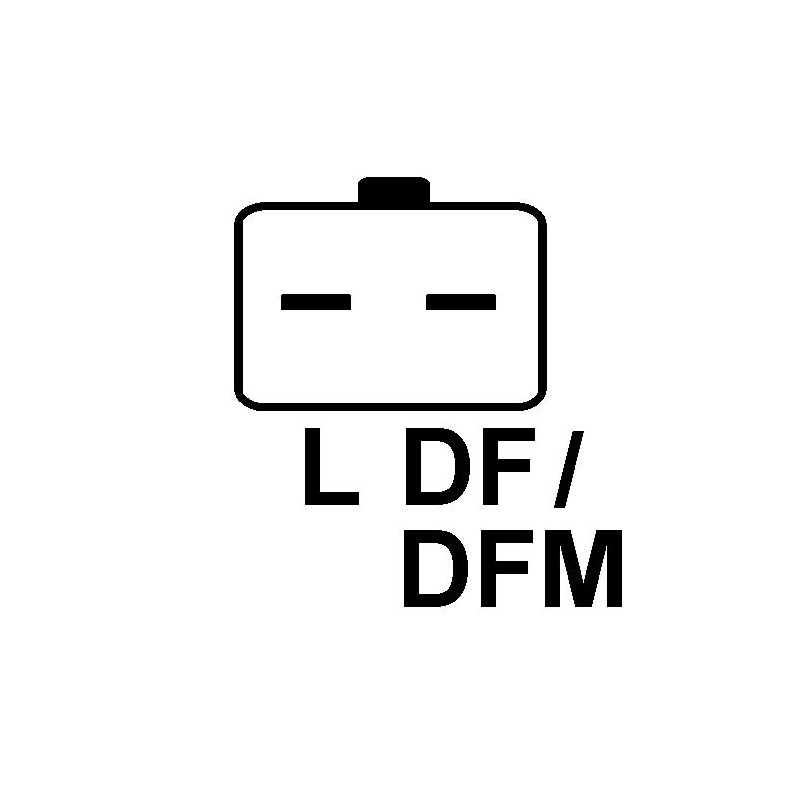

| O | Plug no. | PL72 |
| R | Total length mm | 194.50 |
Catalogue information | ||
|---|---|---|
| Pulley | SP/FW | |
| Regulator type | IR | |
| Vac. pump | No | |
| Prod. info | BN | |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |
generic brand
